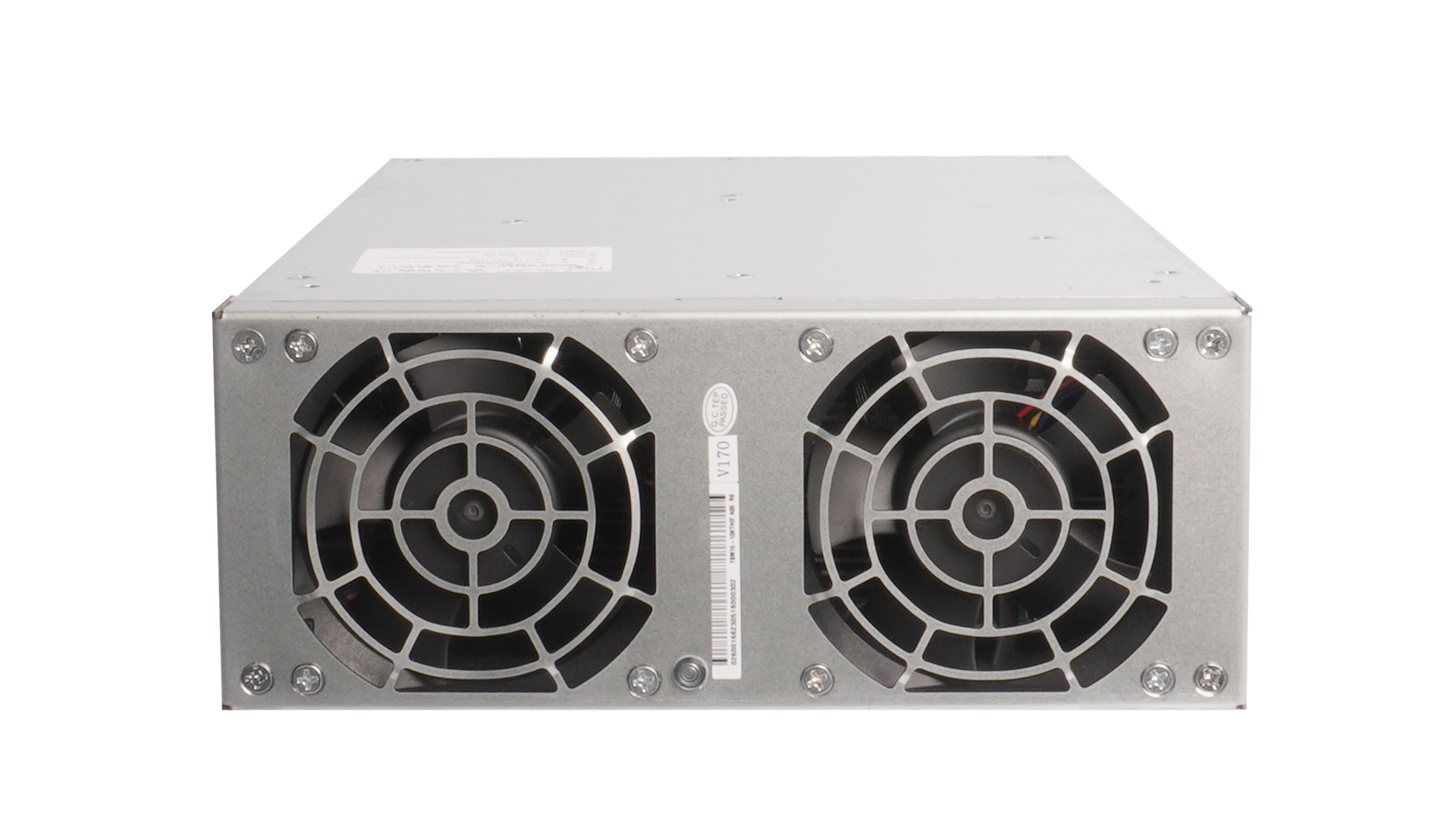

TPS-BM1510KTHIF Bidirectional Power Module

The TPS-BM1510KTHIF Bidirectional Power Module is a high-performance three-phase solution, part of the TPS-BM1510KTHIF/TPS-BM1510KTHIRF series, designed for seamless AC-DC and DC-AC energy conversion. As a Three-Phase No Neutral Line Power Module, it eliminates neutral line current issues, ensuring stable operation in three-phase systems . In AC-DC direction, it delivers a rated output of 10000W (10000W Three-Phase AC-DC Module) with a 15VDC output (15VDC Output Bidirectional Module) and 666.7A current (666.7A DC Output Power Module). It boasts 92% peak efficiency (92% High Efficiency Bidirectional Module), high power factor (PF>0.99, High PF>0.99 Three-Phase Module), and low total harmonic distortion (THDi <5%, Low THDi <5% Power Module) under full load . As a Three-Phase AC-DC Bidirectional Isolation Module, it supports grid-connected inverter operations (Grid-Connected Inverter Power Module) with excellent EMC compliance to EN55032 (EN55032 Compliant Power Module) . Equipped with Forced Air Cooling (front inlet, rear outlet), it operates reliably in harsh environments with no derating at 45°C (Harsh Environment Adaptable Power Module) . With a Modular Bidirectional Power Module design, it enables intelligent expansion up to 4 units in parallel . Ideal for Cell Formation Testing, Power Bidirectional Testing, and Energy Recyclable Power Aging equipment, it features comprehensive fault protection and can be UL/CE/TUV certified .

Key Features

• Three-Phase No Neutral Line Design: Eliminates neutral line current, enhancing system stability .
• High Performance Metrics: 10000W AC-DC output, 92% efficiency, PF>0.99, and THDi <5% for optimal power quality .
• Bidirectional Isolation: Supports seamless AC-DC/DC-AC conversion, suitable for grid-connected systems .
• Modular & Expandable: Up to 4 units in parallel for flexible power scaling .
• Harsh Environment Adaptability: Forced air cooling, no derating at 45°C, compliant with EN55032 .
