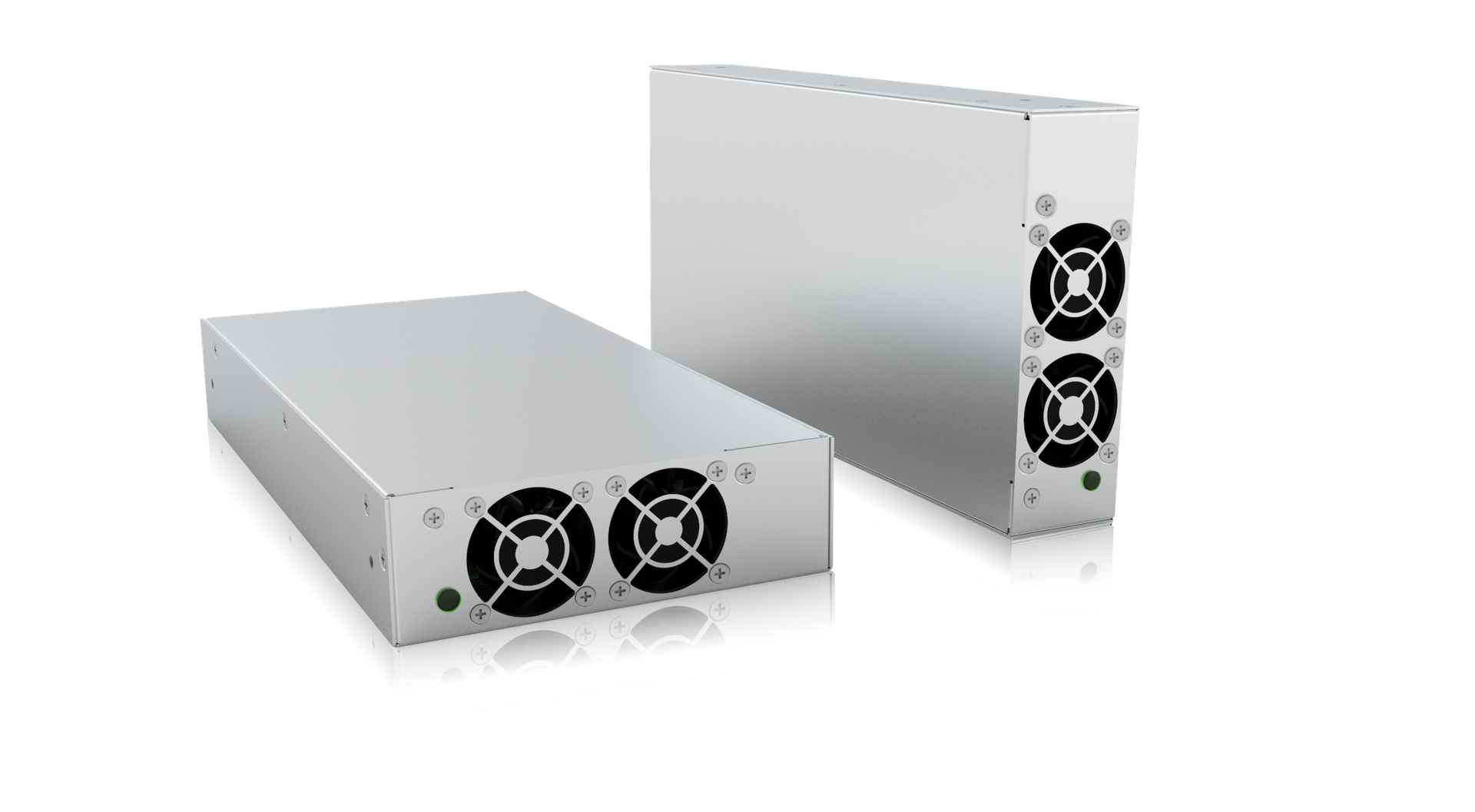

TPS-BM143400SI Bidirectional Power Module

The TPS-BM143400SI Bidirectional Power Module is a high-performance 3400W AC-DC Bidirectional Module designed for reliable energy conversion in industrial applications. As an AC-DC Bidirectional Isolation Module, it enables seamless two-way energy transfer between AC and DC sides, making it suitable as a Grid-Connected Inverter Power Module for stable grid interactions. Boasting high efficiency with 91% efficiency in AC to DC conversion (High Efficiency Bidirectional Power Module), it also features rapid mode switching with a time of less than 10ms (<10ms Switching Bidirectional Module), ensuring quick adaptation to dynamic power demands. It maintains excellent power quality with a high power factor (PF>0.99, High PF>0.99 Power Module) and low total harmonic distortion (THDi <5%, Low THDi <5% Power Module) under full load conditions. As a Single-Phase LV AC-DC Module, it operates with an AC input range of 176~264VAC and delivers a stable 14VDC output (14VDC Output Bidirectional Module) with a rated current of 243A (243A DC Output Power Module). Equipped with a Forced Air Cooling Power Module system (front to rear airflow), it adapts to harsh environments, classifying it as a Harsh Environment Adaptable Power Module. With a Modular Bidirectional Power Module design, it supports up to 8 units in parallel for scalable power solutions. It complies with EN55023 (EN55023 Compliant Power Module) and can be UL/CE/TUV certified (UL/CE/TUV Certified Power Module), making it ideal for Cell Formation Testing Power Module, Power Bidirectional Testing Module, and Energy Recyclable Power Module applications.

Key Features

• High Power & Efficiency: 3400W capacity with 91% AC-DC efficiency, ensuring energy-saving performance in industrial setups.
• Superior Power Quality: PF>0.99 and THDi <5% to meet strict grid standards and minimize interference.
• Rapid Switching: <10ms mode switching for quick response to dynamic power demands in bidirectional systems.
• Modular & Expandable: Supports up to 8 units in parallel, offering flexible scalability for medium capacity needs (Medium Capacity Bidirectional Power Module).
• Durable Design: Forced air cooling and harsh environment adaptability, certified for safety and compliance with EN55023.
