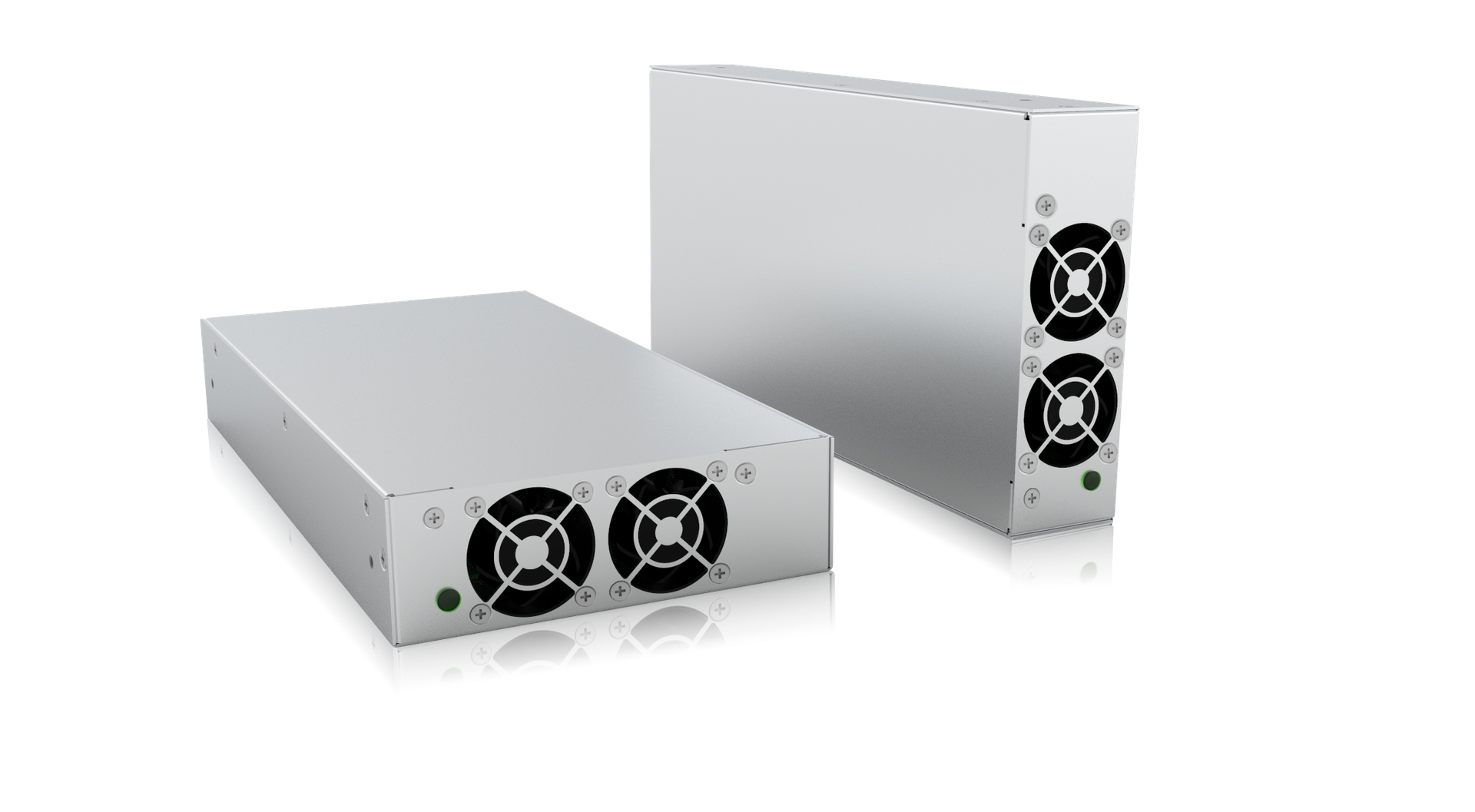

TPS-BM142650SIR Bidirectional Power Module

The TPS-BM142650SIR is a high-performance Bidirectional AC-DC isolation module, part of the TPS-BM series that includes TPS-BM142250 bidirectional power module and TPS-BM142400 AC-DC power module. As a TPS-BM142650 energy flow module, it enables seamless two-way energy transfer, making it ideal for dynamic power systems. Rated at 2650W, it falls under the 2250W/2400W/2650W power module range, delivering reliable performance in AC-DC and DC-AC conversion. It achieves 93.5% efficiency in AC to DC mode, ensuring minimal energy loss, and features a fast switching time of <10ms between rectifier and inverter modes, adapting quickly to changing power demands. Designed as a Single-phase LV AC-DC module, it operates with a 220/230/240VAC input range and 14VDC output, boasting High PF>0.99 and Low THDi <5% to meet strict power quality standards. Equipped with Forced air cooling (with a rear inlet and front outlet airflow design specific to the R type), it maintains stable operation even in harsh environments. As a Modular bidirectional power module, it supports up to 8 units in parallel for scalable power solutions. It excels in applications like Cell formation testing and Power bidirectional testing, backed by comprehensive fault protection and compliance with international standards.

Key Features

• Bidirectional Energy Flow: Enables AC-DC and DC-AC conversion with <10ms switching, suitable for energy recycling and dynamic systems.
• High Efficiency & Power Quality: 93.5% AC-DC efficiency, PF>0.99, and THDi <5% for energy savings and minimal interference.
• Modular Design: Supports parallel operation (up to 8 units) for flexible power scaling, ideal for industrial setups.
• Specialized Cooling: Forced air cooling with R-type airflow (rear inlet, front outlet) ensures reliable performance in harsh conditions.
• Application Versatility: Perfect for cell formation testing, power bidirectional testing, and energy recyclable systems.
