TPS-BM142400SI
Article Number: HPM1133 Manufacturer Code: HPM010002 Manufacturer: TPS
https://www.shop-tps.com/web/image/product.template/27843/image_1920?unique=6285a28
Consultation is required. Please contact us.

Price Each

412.98 € 412.98 EUR 412.98 € (Inc.Tax 491.45 €)

412.98 €

    This combination does not exist.

    Accessories for Product

    Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.

    Product Description

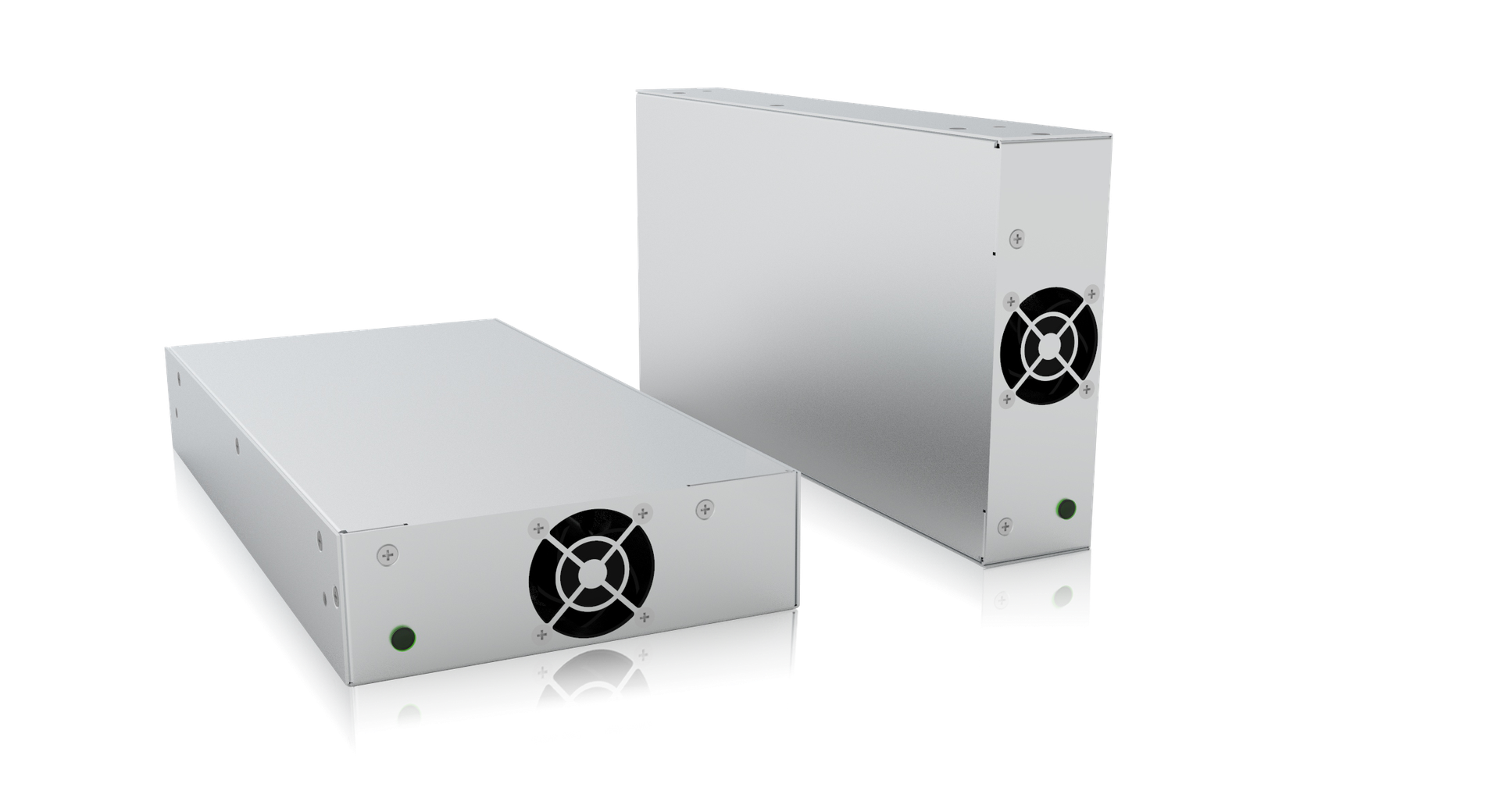

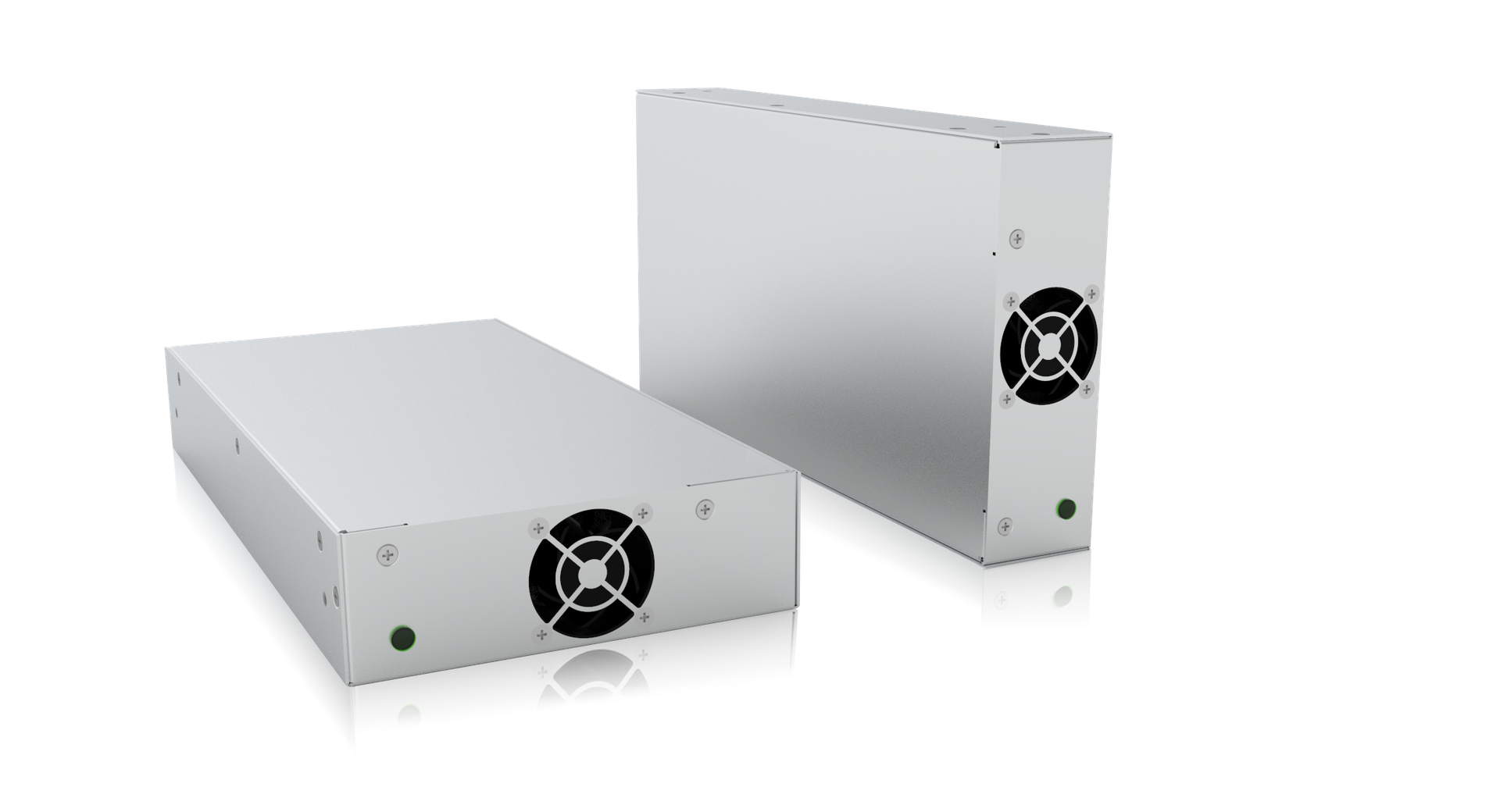

    TPS - BM142400SI Bidirectional Power Module

    The TPS - BM142400SI is a high - performance bidirectional power module that stands out in the field of power conversion. It is part of a series that includes the TPS - BM142250 and TPS - BM142650 bidirectional power modules. This module is designed as a bidirectional AC - DC isolation module, enabling efficient energy flow in both directions. It offers an impressive 93.5% efficiency in AC - DC conversion, minimizing power losses and maximizing energy utilization. With a fast switching time of <10ms, it can quickly respond to changes in power demands, ensuring stable operation. It features a high power factor (PF>0.99) and a low total harmonic distortion of input current (THDi <5%). This not only makes it compliant with strict power quality standards but also helps in reducing interference with other electrical equipment. Rated at 2400W, it is suitable for a wide range of applications. In the context of cell formation testing, it provides reliable power supply and accurate control, making it an ideal choice for cell formation testing power module requirements. The modular design of the TPS - BM142400SI allows for easy integration into various systems, making it a modular bidirectional power module. It is designed for single - phase low - voltage (LV) AC - DC applications, providing flexibility in power distribution and usage. To ensure proper cooling during operation, it is equipped with a forced air cooling system, functioning as a forced air cooling power module. This helps in maintaining the optimal operating temperature and extends the lifespan of the module. Moreover, it is a power bidirectional testing module, which can be used to test and verify the performance of power systems where bidirectional power flow is required. Whether it is for industrial applications, research laboratories, or power management systems, the TPS - BM142400SI offers a reliable and efficient solution for bidirectional power needs.

    Key Features

    • High Efficiency: Achieves 93.5% efficiency in AC - DC conversion, reducing power waste.
    • Fast Switching: With a switching time of <10ms, it can adapt quickly to power demand changes.
    • Good Power Quality: High PF>0.99 and low THDi <5% ensure compliance with power quality standards and reduce interference.
    • Modular Design: Facilitates easy integration into different systems.
    • Forced Air Cooling: Ensures optimal operating temperature and long - term reliability.

    Specifications

    Parameter Value
    Air Flow From front to rear
    Dimensions (L*W*H)(mm) 141*44*285
    Efficiency 88.5%(DC to AC), 91.5%(AC to DC)
    Input Current ≤15A(AC to DC), 112A(DC to AC)
    Input Power 1680W(DC to AC)
    Input Voltage 15Vdc, 176-264Vac
    Output Current 171A(AC to DC)
    Output Power 2400W(AC to DC)
    Output Voltage 14Vdc, 176-264Vac
    Output Voltage Accuracy 0.5%(AC to DC)
    Rated Input Voltage 220Vac, 230Vac, 240Vac
    Weight ≤2.4kg
