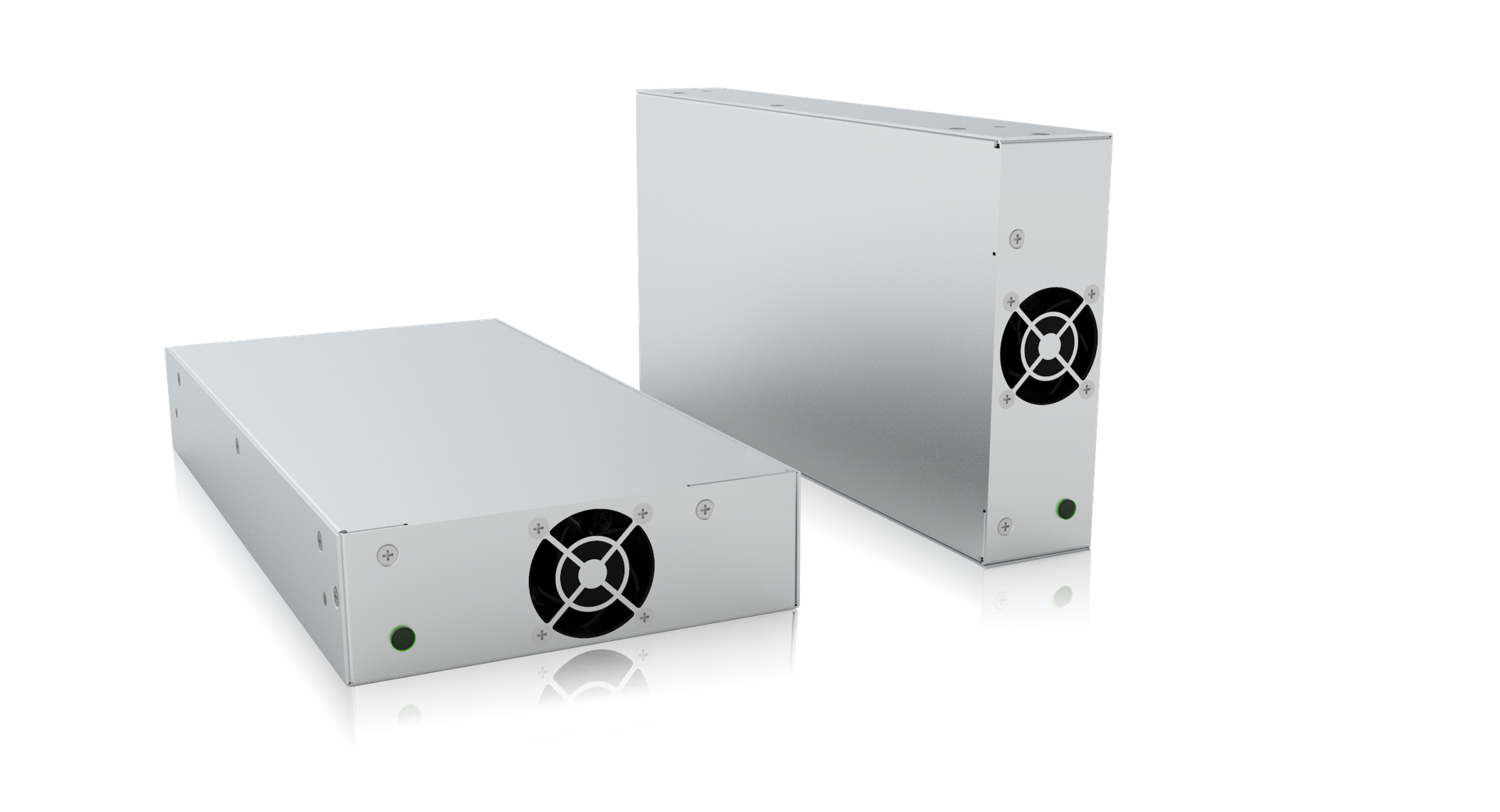

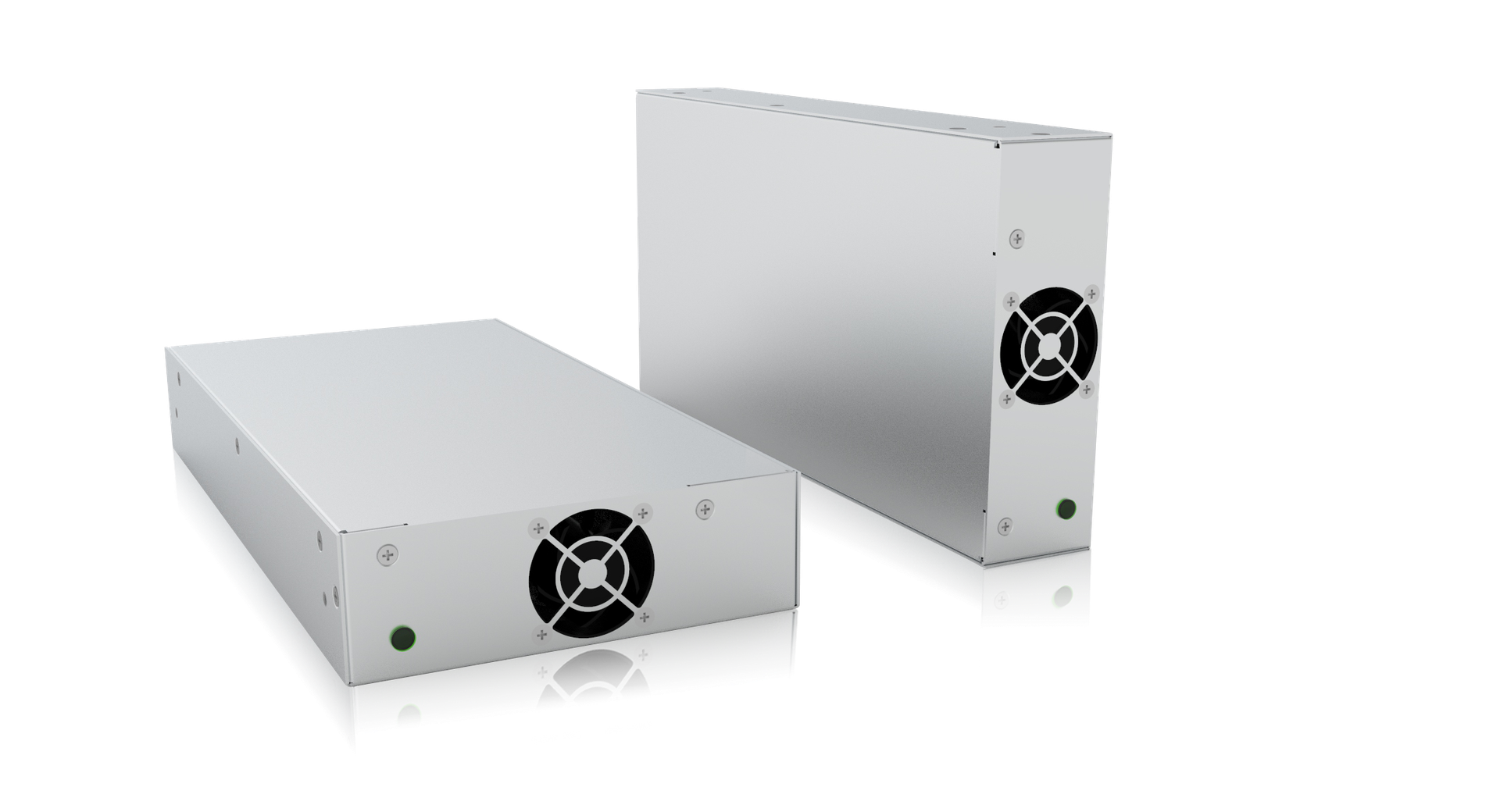

TPS-BM142250SIR/TPS-BM142400SI/TPS-BM142650SI(R) Bidirectional Power Module
The TPS-BM142250 bidirectional power module, TPS-BM142400 AC-DC power module, and TPS-BM142650 energy flow module are high-performance single-phase LV AC-DC modules designed for efficient energy conversion. As a Bidirectional AC-DC isolation module, it realizes bidirectional conversion of energy flow, adopting mature soft switching technology, advanced control algorithm and excellent manufacturing. This 2250W/2400W/2650W power module offers AC to DC efficiency of 93.5% and DC to AC efficiency of 86%, making it a 93.5% efficiency power module. With a <10ms switching time between rectifier mode and inverter mode, it is a <10ms switching power module. It features high PF>0.99 and low THDi <5%, thus being a High PF>0.99 power module and Low THDi <5% power module. The Modular bidirectional power module supports intelligent expansion and automatic parallel operation, with up to 8 units connected in parallel. Equipped with a Forced air cooling system with intelligent control, this Forced air cooling power module ensures stable operation even in harsh environments. It is suitable for various applications such as cell formation testing, making it a Cell formation testing power module, power bidirectional testing as a Power bidirectional testing module, and energy recyclable power aging. It can pass UL, CE, TUV certification, ensuring high reliability and compliance with international standards.
Key Features
- Bidirectional Energy Flow: The TPS-BM142250 bidirectional power module, TPS-BM142400 AC-DC power module, and TPS-BM142650 energy flow module enable bidirectional conversion of energy flow, functioning as a reliable Bidirectional AC-DC isolation module for versatile power applications.
- High Efficiency: As a 93.5% efficiency power module, it achieves 93.5% efficiency in AC to DC conversion and 86% in DC to AC conversion, ensuring energy-saving performance.
- Rapid Switching: This <10ms switching power module switches between rectifier mode and inverter mode in less than 10ms, enhancing operational flexibility.
- Excellent Electrical Performance: Being a High PF>0.99 power module and Low THDi <5% power module, it maintains high power factor (PF>0.99) and low total harmonic distortion (THDi <5%), ensuring stable power quality.
- Modular Design: The Modular bidirectional power module supports intelligent expansion and automatic parallel operation, with up to 8 units connectable in parallel for easy capacity scaling.
- Suitable for Specific Applications: Ideal as a Cell formation testing power module and Power bidirectional testing module, catering to cell formation and testing, power bidirectional testing, and energy recyclable power aging needs.
- Reliable Cooling: Equipped with a Forced air cooling system, this Forced air cooling power module ensures efficient heat dissipation, adapting to harsh environments.
- Certifications: Can pass UL, CE, TUV certification, guaranteeing compliance with international safety and quality standards.
- Power Ratings: Available as a 2250W/2400W/2650W power module, meeting different power requirements in various scenarios.
- Single-phase LV AC-DC: As a Single-phase LV AC-DC module, it is suitable for single-phase low-voltage AC-DC power conversion applications.
Specifications
Parameter | Value |
---|---|
Air Flow | From rear to front |
Dimensions (L*W*H)(mm) | 141*44*285 |
Efficiency | 88%(DC to AC), 93.5%(AC to DC) |
Input Current | ≤15A(AC to DC), 105A(DC to AC) |
Input Power | 1575W(DC to AC) |
Input Voltage | 15Vdc, 176-264Vac |
Output Current | 161A(AC to DC) |
Output Power | 2250W(AC to DC) |
Output Voltage | 14Vdc, 176-264Vac |
Output Voltage Accuracy | 0.5%(AC to DC) |
Rated Input Voltage | 220Vac, 230Vac, 240Vac |
Weight | ≤2.4kg |
