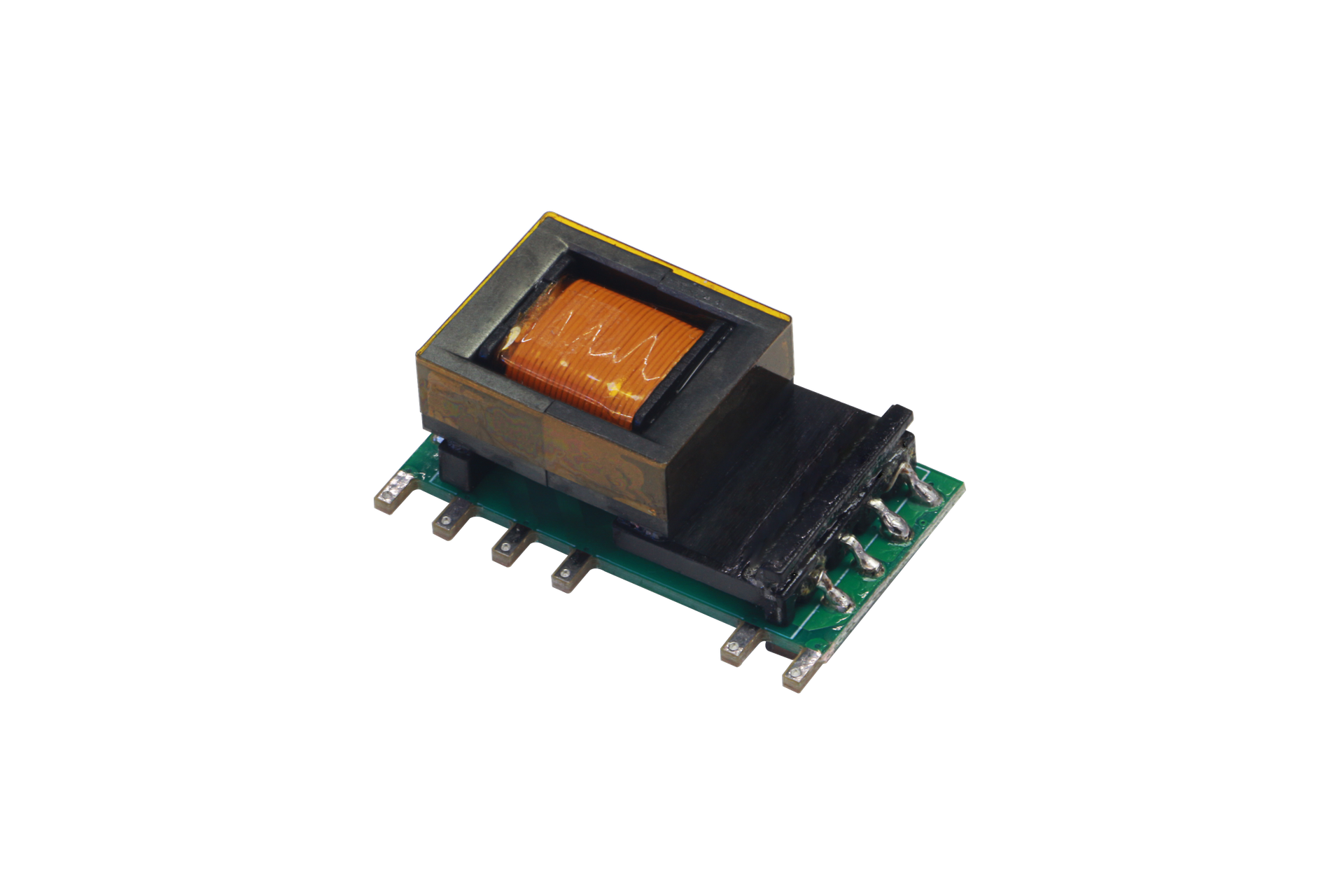

TPS-AWS1023S24 Series AC/DC Converter
The TPS-AWS1023S24 Series AC/DC Converter is a high-performance 10W AC/DC Converter, part of the TPS-AWS10/1523S Series AC/DC Converter lineup, designed for reliable power conversion in industrial electronics. It features a universal input range of 85-305VAC (85-305VAC Input AC/DC Converter) and 100-430VDC (100-430VDC Input Power Converter), ensuring compatibility with global power sources. Packaged in a SIP form factor (SIP Package AC/DC Converter) with compact dimensions (32.00×14.50×20.00mm) and a lightweight design (10.2g typical), it is ideal for space-constrained installations. The converter operates within a broad temperature range of -40°C to +85°C (-40°C to +85°C Operating Temperature Converter) and uses free air convection for cooling (Free Air Convection Cooling Converter), eliminating the need for additional fans. With an isolation voltage of 4000VAC (4000VAC Isolation Voltage Converter) and Class II safety rating (Class II Safety Rated Converter), it meets strict safety standards including IEC/EN 61558 and IEC/EN 60335 (IEC/EN 61558 Compliant Converter, IEC/EN 60335 Certified Converter). It delivers a stable 24VDC output with a maximum current of 420mA, low ripple noise (<150mV, Low Ripple Noise AC/DC Converter), and a typical full-load efficiency of 84%. Equipped with comprehensive protection features, including output short-circuit protection (Output Short-Circuit Protection Converter), overcurrent, and overvoltage protection (Overcurrent & Overvoltage Protection Converter), it ensures system safety during fault conditions. The converter boasts high reliability with an MTBF of over 1000Kh (High Reliability AC/DC Converter) and is suitable for applications in industrial electronics (Industrial Electronics AC/DC Converter). It integrates seamlessly into various circuits, supporting recommended peripheral components as specified in application designs, making it a versatile choice for industrial control systems and embedded electronics.
Key Features
- Universal Input: Accepts 85-305VAC and 100-430VDC inputs, suitable for global industrial applications.
- Compact Design: SIP package with small dimensions and lightweight construction, ideal for space-constrained setups.
- Wide Operating Range: Functions in -40°C to +85°C environments with free air convection cooling.
- Safe and Reliable: 4000VAC isolation, Class II safety rating, multiple protection features, and MTBF >1000Kh.
- High Performance: 24VDC output, 420mA max current, low ripple noise, and 84% typical efficiency.
Specifications
Parameter | Value |
---|---|
Dimensions (L*W*H)(mm) | 32.00*20.00*15.30 |
Efficiency | 85% |
Input Voltage | 85-305VAC |
Output Current | 420mA |
Output Power | 10W |
Output Voltage | 24VDC |
Weight | 10.2g |
Isolation Voltage | 4000VAC |
Package Type | SIP |
Technical data sheets
