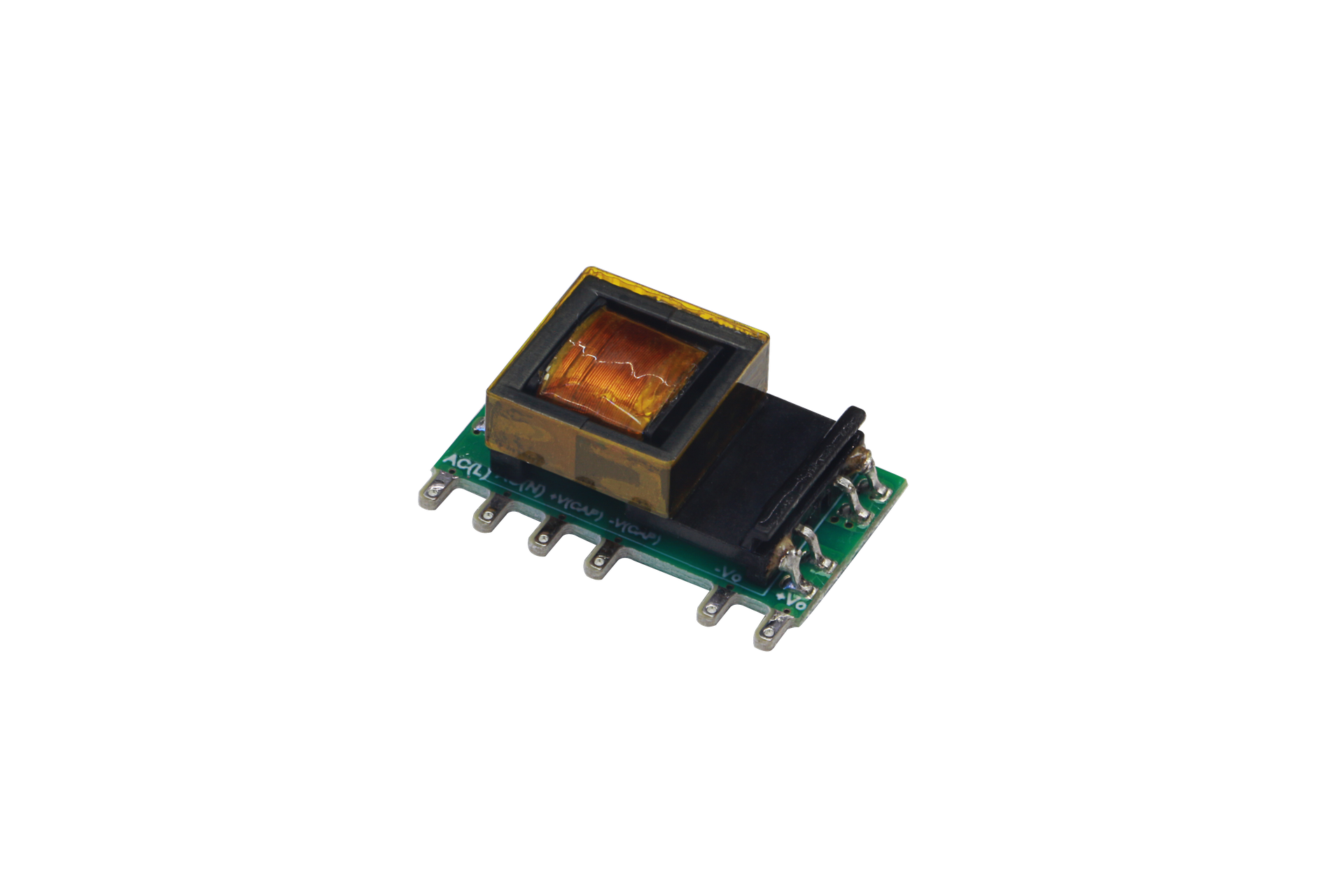

TPS-AWS0523S05 Series AC/DC Converter

The TPS-AWS0523S05 Series AC/DC Converter is a high-performance 5W AC/DC Converter, part of the TPS-AWS0523S Series AC/DC Converter lineup, designed for reliable power conversion in diverse electronic applications. It features a universal input range of 85-305VAC (85-305VAC Input AC/DC Converter) and 100-430VDC (100-430VDC Input Power Converter), ensuring compatibility with global power sources . Packaged in a SIP form factor (SIP Package AC/DC Converter) with compact dimensions (26.40×11.00×17.60mm) and a lightweight design (5.9g typical), it is ideal for space-constrained installations . The converter operates within a broad temperature range of -40°C to +85°C (-40°C to +85°C Operating Temperature Converter) and uses free air convection for cooling (Free Air Convection Cooling Converter), eliminating the need for additional fans . With an isolation voltage of 4000VAC (4000VAC Isolation Voltage Converter) and Class II safety rating (Class II Safety Rated Converter), it meets strict safety standards including IEC/EN 61558 and IEC/EN 60335 (IEC/EN 61558 Compliant Converter, IEC/EN 60335 Certified Converter) . It delivers a stable 5VDC output with a maximum current of 1000mA, low ripple noise (<180mV, Low Ripple Noise AC/DC Converter), and a typical full-load efficiency of 76% . Equipped with comprehensive protection features, including output short-circuit protection (Output Short-Circuit Protection Converter), overcurrent, and overvoltage protection (Overcurrent & Overvoltage Protection Converter), it ensures system safety during fault conditions . The converter boasts high reliability with an MTBF of over 1000Kh (High Reliability AC/DC Converter) and is suitable for applications in industrial and consumer electronics (Industrial & Consumer Electronics AC/DC Converter) . It integrates seamlessly into various circuits, supporting recommended peripheral components as specified in application designs, making it a versatile choice for smart home appliances, intelligent buildings, and industrial systems .

Key Features

• Universal Input: Accepts 85-305VAC and 100-430VDC inputs, suitable for global applications .
• Compact Design: SIP package with small dimensions and lightweight construction, ideal for space-constrained setups .
• Wide Operating Range: Functions in -40°C to +85°C environments with free air convection cooling .
• Safe and Reliable: 4000VAC isolation, Class II safety rating, multiple protection features, and MTBF >1000Kh .
• High Performance: 5VDC output, 1000mA max current, low ripple noise, and 76% typical efficiency .
