TPS-AWD1023S12 Series AC/DC Module Power Supply

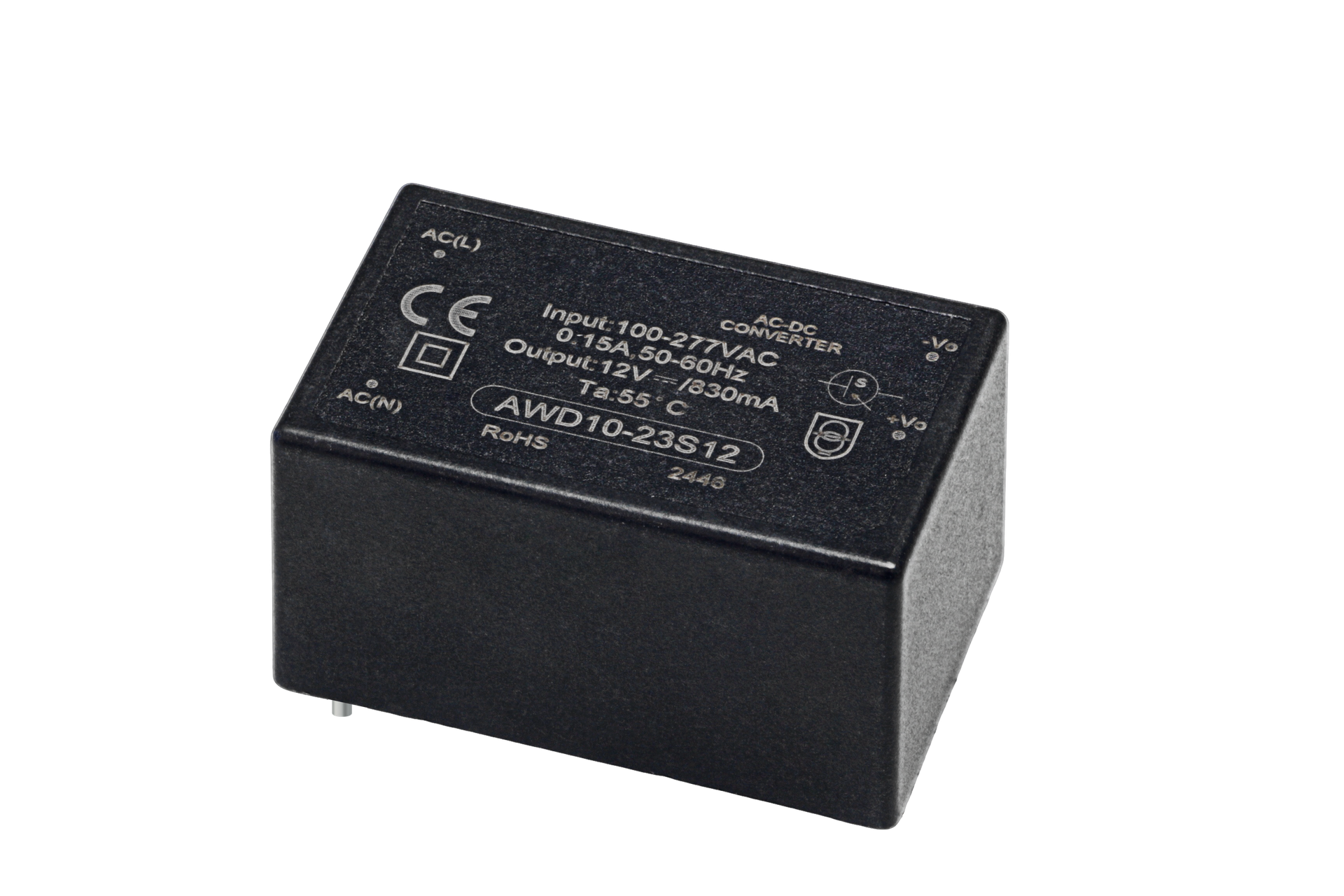

The TPS-AWD1023S12 Series AC/DC Module Power Supply is a high-performance 5W AC/DC Module Power Supply, part of the TPS-AWD1023S Series AC/DC Module Power Supply lineup, designed for reliable power conversion in diverse electronic applications. It features a wide input range of 85-305VAC (85-305VAC Input AC/DC Module) and 100-430VDC (100-430VDC Input Power Module), ensuring compatibility with global power sources. Packaged in a DIP form factor (DIP Package AC/DC Module) with compact dimensions (40.00×25.40×21.50mm) and a weight of 59g, it is ideal for space-constrained designs. The module operates within a broad temperature range of -40°C to +85°C (-40°C to +85°C Operating Temperature Power Module) and uses natural air cooling (Natural Air Cooling Power Module) for efficient heat dissipation without additional fans. With an isolation voltage of 4000VAC (4000VAC Isolation Voltage Power Supply) and Class II safety rating (Class II Safety Rated Power Supply), it meets strict safety standards, including IEC/EN 61558 and IEC/EN 60335 (IEC/EN 61558 Compliant Power Supply, IEC/EN 60335 Certified Power Module). It delivers a stable 12VDC output with low ripple noise (<150mV, Low Ripple Noise AC/DC Module) and high full-load efficiency of 83% (typical), contributing to energy efficiency. Equipped with output short circuit and overcurrent protection (Output Short Circuit Protection Power Module, Overcurrent Protection AC/DC Module), it ensures system safety during fault conditions. The module’s housing is made of black flame-retardant heat-resistant plastic (UL94 V-0, UL94 V-0 Flame Retardant Power Supply) and boasts a high reliability with an MTBF of over 300,000 hours (High Reliability AC/DC Module). It integrates seamlessly into various circuits, supporting peripheral components as specified in recommended design schemes, making it suitable for industrial controls, consumer electronics, and embedded systems.

Key Features

• Wide Input Compatibility: Accepts 85-305VAC and 100-430VDC inputs, suitable for global applications.
• Compact and Durable: DIP package with UL94 V-0 flame-retardant housing, operating in -40°C to +85°C environments.
• Safe and Reliable: 4000VAC isolation, Class II safety rating, and protection features (short circuit, overcurrent) for system security.
• High Performance: 12VDC output with low ripple (<150mV), 83% efficiency, and stable regulation for consistent power delivery.
• Easy Integration: Compatible with recommended peripheral circuits, ideal for industrial and consumer electronics.
