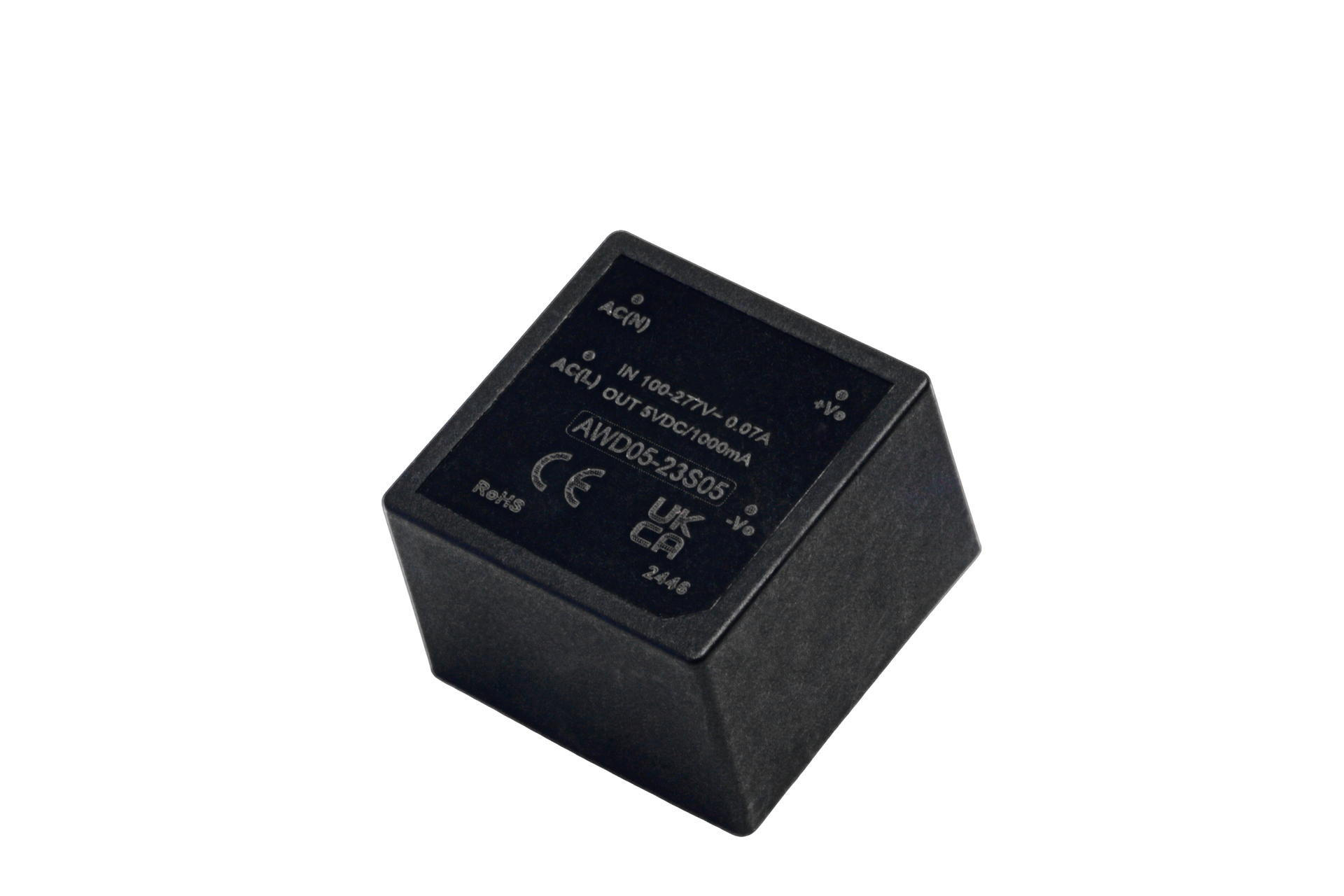

AWD 05-23S Series AC/DC Module Power Supply
The AWD05-23S05 AC/DC power supply is a high-performance member of the AWD 05-23S Series AC/DC Module Power Supply. It is designed to handle a wide input range, accepting 85-305VAC input power supply and 100-430VDC input module power, making it versatile for various applications. This 5W output AC/DC module features a 4000VAC isolation voltage, ensuring safe operation in diverse environments. With a DIP package, this DIP package power supply offers easy installation and integration into different systems. It operates efficiently within a broad temperature range of -40-+85°C, classifying it as a -40-+85°C operating temperature power supply, suitable for harsh industrial conditions. The AWD05-23S05 AC/DC power supply comes with an output short-circuit protection function, enhancing its reliability and durability. As an industrial-grade AC/DC module, it boasts a full-load efficiency of 78% (at 230VAC, typical), with the AWD 05-23S Series generally achieving 82% full-load efficiency, making it an 82% full-load efficiency power supply. This small volume high efficiency power supply combines compact size with high efficiency and low power consumption, adhering to environmental protection standards.
Key Features
- Wide Input Range: Accepts 85-305VAC input power supply and 100-430VDC input module power, ensuring compatibility with various power sources.
- High Isolation Voltage: Equipped with a 4000VAC isolation voltage, providing safe operation and protection.
- Compact and Efficient: As a 5W output AC/DC module, it features small volume, high efficiency, and low power consumption, meeting environmental protection requirements.
- Durable Design: With a DIP package, it is built to withstand an operating temperature range of -40-+85°C, making it suitable for industrial applications.
- Reliable Protection: Incorporates output short-circuit protection function, ensuring the safety of connected devices.
- Industrial-grade Quality: Designed with industrial-grade product technical standards, ensuring stable performance in demanding environments.
Specifications
Parameter | Value |
---|---|
Dimensions (L*W*H)(mm) | 25.40*25.40*16.10 |
Efficiency | 82% |
Input Voltage | 85-305VAC |
Output Current | 1000mA |
Output Power | 5W |
Output Voltage | 5VDC |
Weight | 23g |
Isolation Voltage | 4000VAC |
Package Type | DIP |
