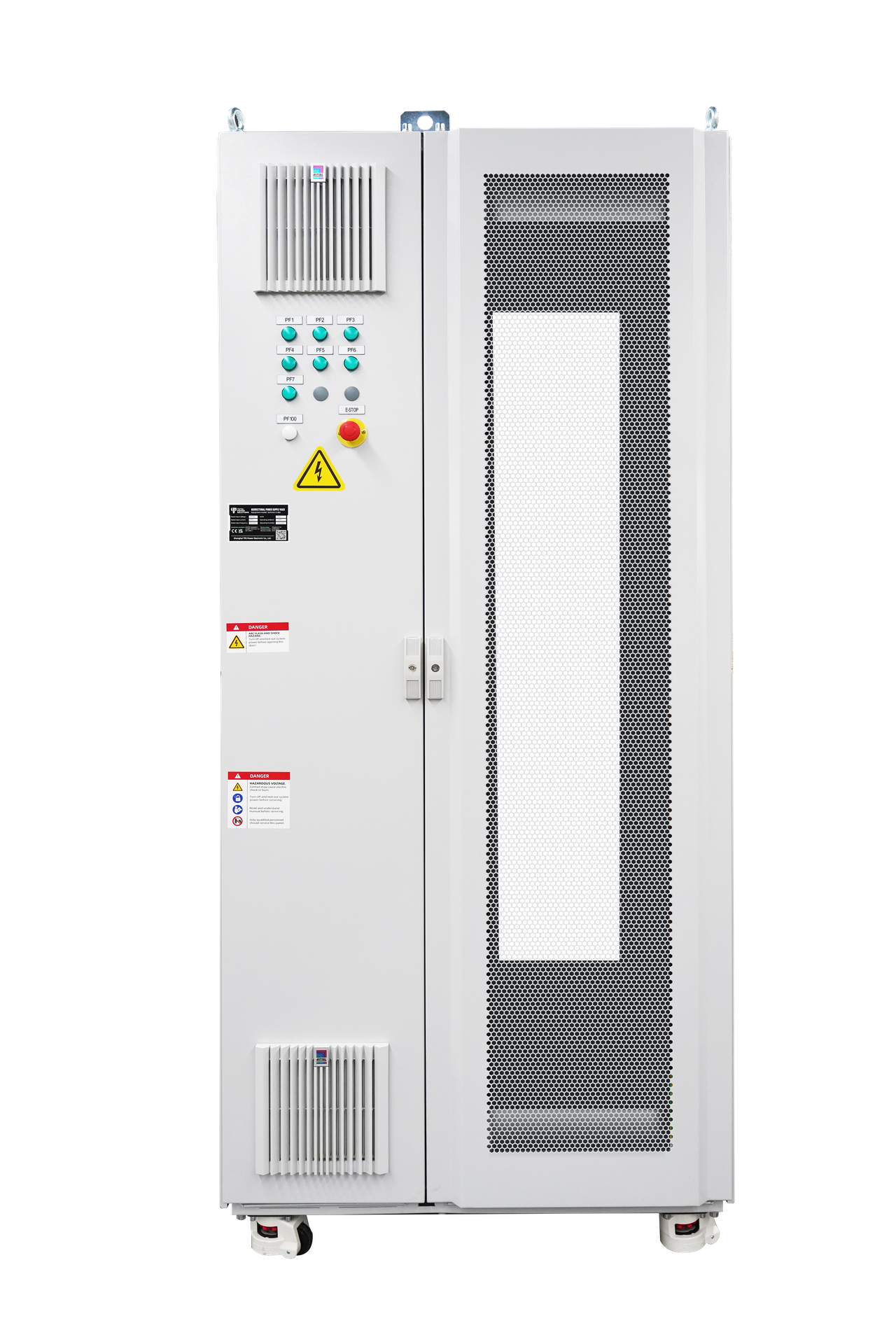

Sentinel Power Cabinet Series 48U UL 508A Power Cabinet

The Sentinel Power Cabinet Series 48U is a high-density industrial control panel purpose-built for ultra-high-power applications, providing a fully certified UL 508A industrial environment for 19-inch programmable power supply integration. Available in both Sentinel-X 48U and Sentinel-Y 48U configurations, this pre-wired power cabinet delivers a scalable power system ranging from 10 kW up to 420 kW total power, supporting up to seven 60 kW power modules within a single 48U enclosure. It integrates a robust DC busbar infrastructure designed for high-current DC distribution exceeding 2000A, with precision thermal engineering design calibrated for 30K to 50K temperature rise above ambient to ensure long-term reliability under 100% duty cycle. The advanced cooling architecture includes a redundant high-pressure fan matrix with over 2000 CFM combined airflow and 85 percent open perforated doors for minimal intake resistance, paired with per-bay temperature sensors and automated emergency power throttling for reliable overheat protection. For grid compatibility and power quality management, the system features active power factor correction to maintain THDi less than 5 percent, a staggered soft-start sequence to prevent nuisance tripping of upstream breakers, and balanced 3-phase input to eliminate neutral-point shift. The power distribution system supports 3L+PE 600A AC input current at 400VAC and 480VAC, compatible with both 50Hz operating frequency and 60Hz operating frequency, with a standard 10kA SCCR rating and optional 65kA SCCR upgrade. Built with a reinforced frame supporting 1600 kg weight capacity, the cabinet also includes a safety door interlock, dual-channel emergency stop function, and customizable remote control function, making it a versatile industrial power solution with flexible custom power configuration capabilities for demanding high-power operating environments.

Key Features

• Ultra-High Density & Scalability: Delivers up to 420 kW total power in a 48U footprint, with scalable output from 10 kW to 420 kW and support for up to 7 units of 60 kW power modules.
• UL 508A Certified Safety: Fully compliant with UL 508A standards, with 10kA SCCR as standard and 65kA SCCR optional, featuring current-limiting protection for reliable short circuit current protection.
• Pre-Wired Ready-to-Deploy: Factory pre-wired with complete AC input distribution and high-current DC busbars, drastically reducing field wiring time and on-site commissioning work.
• Advanced Thermal Management: Redundant roof-mounted fans with >2000 CFM airflow, 85% open perforated doors, and per-bay temperature monitoring with automated power throttling.
• Optimized Grid Compatibility: Active power factor correction for THDi < 5%, staggered soft-start sequence for nuisance tripping prevention, and 3-phase balance to avoid neutral-point shift.
• Robust & Customizable Design: Reinforced frame with 1600 kg load capacity, integrated safety door interlock and dual-channel E-stop, with customizable remote control and display functions.
