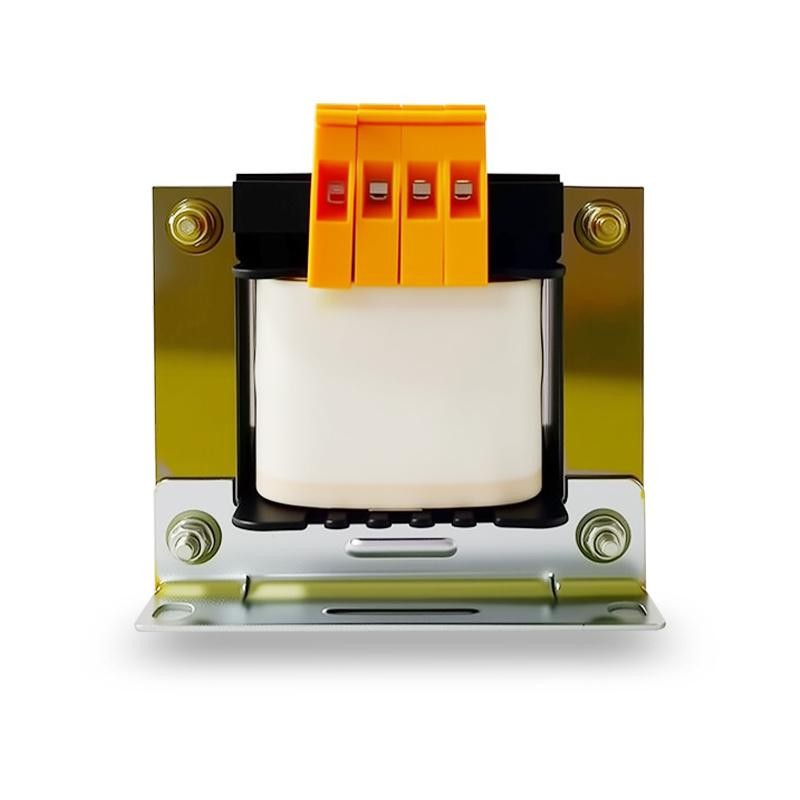

BK Series Machine Tool Control Transformer

The BK Series Machine Tool Control Transformer is engineered to deliver safe, stable, and precise control power for industrial automation systems and machine tools. Designed for CNC equipment, factory machinery, work lighting, and signal light power supplies, it provides reliable voltage conversion and improved power stability for control circuits. With a robust iron core and high quality winding group, the BK transformer achieves low losses and strong magnetic performance using cold rolled silicon steel sheets, helping maintain accurate output under fluctuating loads. Vacuum impregnation processing enhances insulation strength, high temperature resistance, and moisture/anti corrosion performance, while the compact, low noise structure makes it suitable for indoor control cabinets and equipment rooms. The series supports wide customization, including rated capacity from 1 kVA up to 800 kVA (customizable), input/output voltage from 1 V to 10,000 V (customizable), and 50/60 Hz frequency. Optional impedance settings (typically 1%–20%) support different load characteristics. Common specifications include insulation resistance ≥500 MΩ, dielectric strength around 2500 VAC/1 min, configurable cooling (self cooling or air cooling), and selectable protection grades (IP00/IP20). Built for long unattended operation, the BK series also supports short time overload requirements (e.g., 2× rated current for 1 minute, application dependent) and offers long service life (design life up to 30 years under normal conditions).

Key Features

• Safe & Stable Operation: Designed for machine tool control circuits with reliable performance and strong electrical safety.
• Precise Output: High stabilization accuracy supports steady operation of CNC and automation control systems.
• Premium Core & Coils: Cold rolled silicon steel core and high quality copper windings reduce loss and improve efficiency.
• Vacuum Impregnation: Enhanced insulation, high temperature resistance, and improved moisture/anti corrosion protection.
• Wide Customization: 1–800 kVA; 1–10,000 V input/output; 50/60 Hz; impedance voltage 1%–20% optional.
• Compact & Easy to Install: Small footprint, low noise, and terminal design suitable for control cabinets and equipment integration.
• Flexible Cooling & Protection: Self cooling or air cooling; IP00/IP20 protection grades available to match installation needs.
