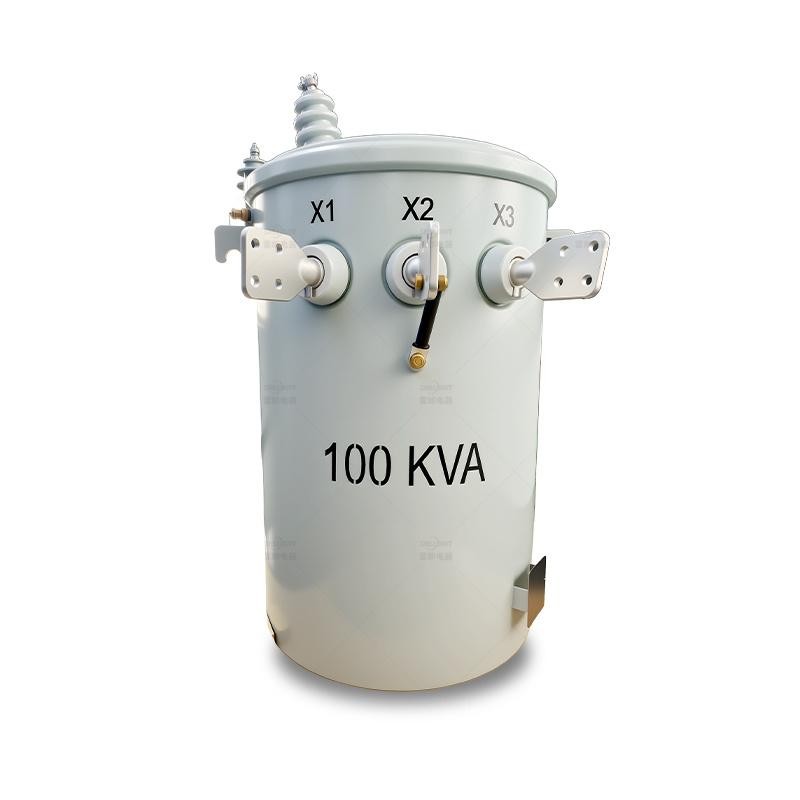

Single Phase Pole Mounted Transformer

The Single Phase Pole Mounted Transformer is an American standard, oil immersed distribution unit designed for reliable outdoor service on overhead lines. Built with a fully sealed tank for strong environmental adaptability and long term stability, it provides flexible ratings from 10 kVA to 333 kVA (customizable). Primary (HV) voltage is customizable from 7,200 V to 34,500 V, and secondary (LV) voltage is customizable from 120 V to 600 V to match utility, commercial, and temporary power needs. High quality copper windings and an excellent iron core improve efficiency and response, with typical no load loss from 36–350 W and load loss from 120–2500 W (model dependent). Common external and safety components may include an HV bushing, LV bushing, high voltage lightning arrester, pressure relief valve, cover band/cover assembly, lifting lugs, copper ground strap, and nameplate—supporting safe installation, grounding, and maintenance. It is widely used for urban power distribution, power grids, construction sites, and event venues where dependable single phase power is required.

Key Features

• American Standard Build: Designed for typical North American overhead distribution applications and utility requirements.
• Fully Sealed, Oil Immersed Design: Strong weather resistance and stable cooling for long term full load operation.
• Flexible Ratings: 10–333 kVA capacity range with multiple configurations to fit different load demands.
• Wide Voltage Customization: HV 7.2–34.5 kV and LV 120–600 V options (including common utility combinations) for easy system matching.
• Protection & Safety Options: Lightning arrester and pressure relief valve support surge protection and safer operation.
• Efficient Core & Copper Windings: Reduced losses, improved efficiency, and dependable output for distribution service.
• Installation Friendly Hardware: Lifting lugs, bushings, grounding strap, and clear nameplate labeling simplify handling and commissioning.
