PS1010‑120HEB100 | 12V 1A 12W EU‑Plug AC‑DC Adapter, DoE Level‑VI Power Supply with 5.5×2.1×11MM Straight Barrel DC Connector

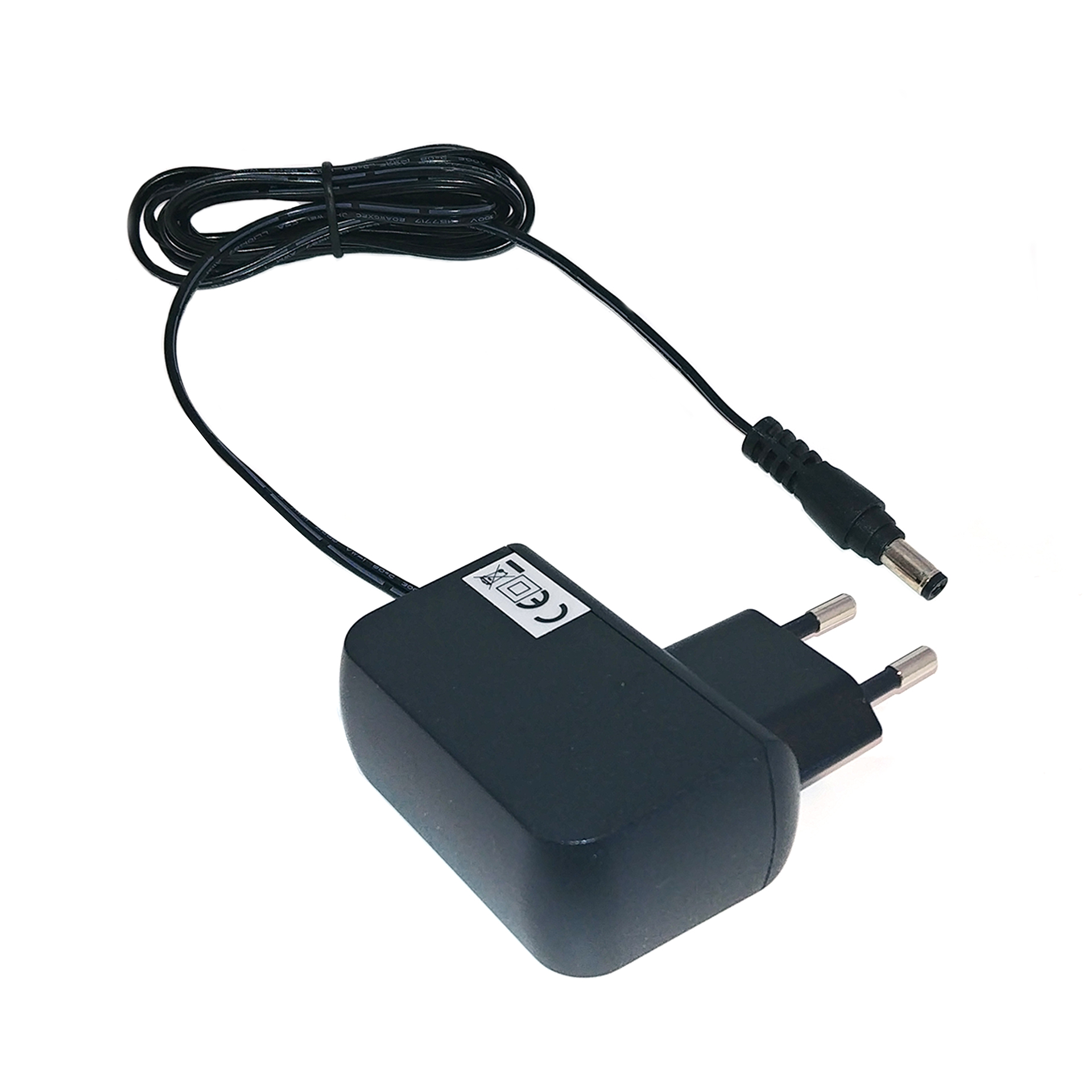

The PS1010‑120HEB100 (short‑form PS1010‑120HEB) is a wall‑mount switching‑mode AC‑DC power adapter manufactured by Powertron Electronics Corp, distributed by TPS‑Elektronik GmbH. Cross‑reference part numbers: WM1027, 012‑42523‑003‑100. This universal wide‑input 12‑watt power adapter features a 1500 mm UL2468 20AWG DC cable and straight spring‑loaded 5.5×2.1×11 mm barrel connector (center positive). Compliant with DoE Efficiency Level VI, RoHS and UL Recognized. Suited for security cameras, LED strips and a wide range of small‑voltage consumer & light‑industrial electronic devices.

Core Specifications: AC input 100‑240V~ 50/60Hz, max input current 0.4A. DC output: 12.0V 1.0A, max total output power 12W, DoE Efficiency Level VI. Mechanical: Black PET housing, dimension L67 × W27 × H60.1 mm, EU 2‑pin wall plug. DC cable: UL2468 20AWG, length 1500 mm; DC plug: straight spring‑loaded 5.5×2.1×11 mm barrel, center‑pin positive. Certifications: CE, RoHS, UL Recognized; indoor‑use only.

Key Features

• PS1010‑120HEB100, alias PS1010‑120HEB, 12V 1A 12W switching‑mode AC‑DC adapter, cross‑ref WM1027, 012‑42523‑003‑100, EU wall‑plug power supply
• Universal wide‑range AC input: 100‑240VAC, 50‑60Hz, max input current 0.4A for global mains compatibility
• DC output: Rated 12.0V 1.0A, maximum output power 12W, DoE Efficiency Level VI performance standard
• Mechanical construction: Black PET plastic housing; dimensions L67 × W27 × H60.1 mm; built‑in EU 2‑pin wall plug
• DC cable & connector: UL2468 20AWG cable, total length 1500 mm; straight spring‑loaded 5.5×2.1×11 mm barrel connector, center‑pin positive
• Certifications & compliance: CE marked, RoHS compliant, UL Recognized; designated for indoor‑use only
• Typical applications: Power supply for security cameras, LED light strips and other small low‑voltage consumer and light‑electronic equipment
• Production traceability: 15‑digit serial number marking on housing for production‑line, month‑and‑year traceability
