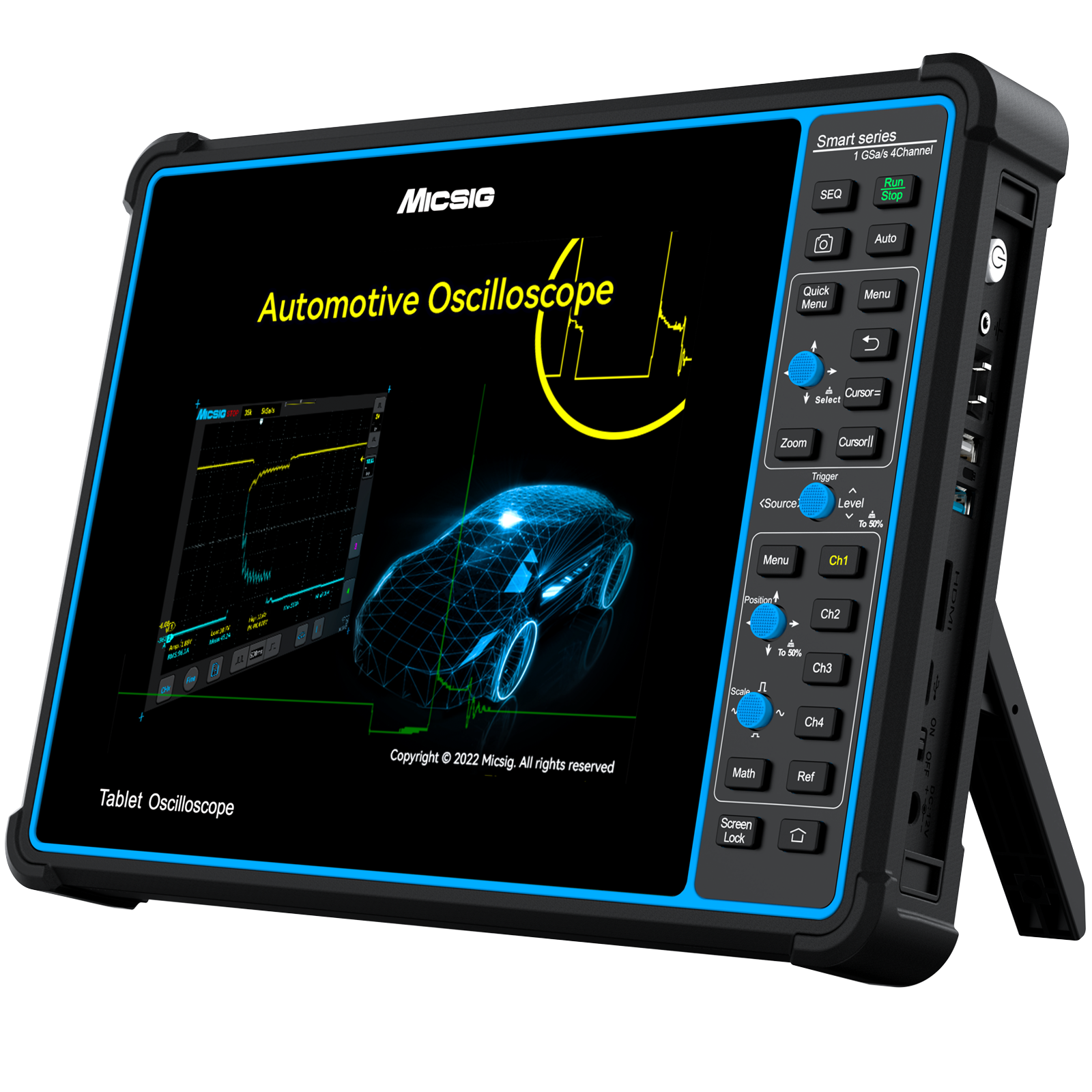

SATO2002 Automotive Tablet Oscilloscope

The SATO2002 is a high-performance automotive tablet oscilloscope from Micsig's SATO Series oscilloscope range, designed as a compact 2-channel solution for professional automotive diagnostic and vehicle electrical testing tasks. As the Micsig 2-channel oscilloscope optimized for automotive applications, this automotive diagnostic tool provides comprehensive testing capabilities including charging circuit analysis, starting current testing, automotive sensor testing, automotive actuator diagnosis, and ignition waveform testing for efficient vehicle troubleshooting. Featuring 200MHz bandwidth, 2 analog channels, 1GSa/s sampling rate, 70Mpts storage depth, and 130000 wfms/s capture rate, the SATO2002 delivers fast waveform acquisition with detailed waveform display for accurate automotive fault diagnosis. The 8 inch TFT-LCD display with 800x600 screen resolution offers user-friendly operation with capacitive touch operation powered by Micsig's advanced touch algorithm technology. Built on an Android based oscilloscope platform with 32GB built-in storage, this device supports flexible control options including wireless remote control, mobile app control, and SCPI command control for diverse testing scenarios. The integrated hardware noise filtering with full bandwidth filter enables effective signal interference reduction for cleaner, more reliable waveform measurements. Extensive automotive bus analysis capabilities cover CAN bus decoding, CAN FD signal analysis, LIN bus testing, FlexRay network diagnosis, and K line communication test, along with combination testing mode for correlated multi-signal analysis. Engineered for portable field testing, the SATO2002 features a rugged ABS rubber protector for enhanced durability and a 7500mAh Li-ion battery providing 5 hour operating time, making it an excellent mobile diagnostic solution and outdoor repair equipment for mobile automotive service applications. HDMI display output supports convenient training demonstrations and collaborative diagnostic sessions. With 1.9kg total weight, USB 3.0 interface, and Type-C connectivity, the SATO2002 balances professional automotive diagnostic performance with exceptional portability for efficient on-site vehicle diagnostics and electrical system troubleshooting.

Key Features

• 200MHz 2-Channel Performance: 2 analog channels with 1GSa/s sampling rate, 70Mpts deep memory, and 130,000 wfms/s fast capture rate.
• Complete Automotive Presets: Dedicated test modes for charging/starting circuits, sensors, actuators, ignition systems, and combination testing.
• Full Bus Protocol Decoding: Built-in CAN, CAN FD, LIN, FlexRay, and K line decoding for comprehensive automotive network diagnostics.
• Android Touch Interface: 8-inch TFT-LCD capacitive touchscreen with intuitive operation and smooth touch response.
• Multiple Control Methods: Wireless remote, mobile app, and SCPI command control for flexible testing workflows.
• Hardware Noise Filtering: Built-in full bandwidth filter reduces signal interference for cleaner, more accurate waveforms.
• Portable Field Design: 7500mAh battery with 5-hour runtime, 1.9kg weight, and ABS rubber protector for field service use.
• Rich Connectivity: USB 3.0, Type-C, Wi-Fi, and HDMI output for data transfer, remote control, and display projection.
