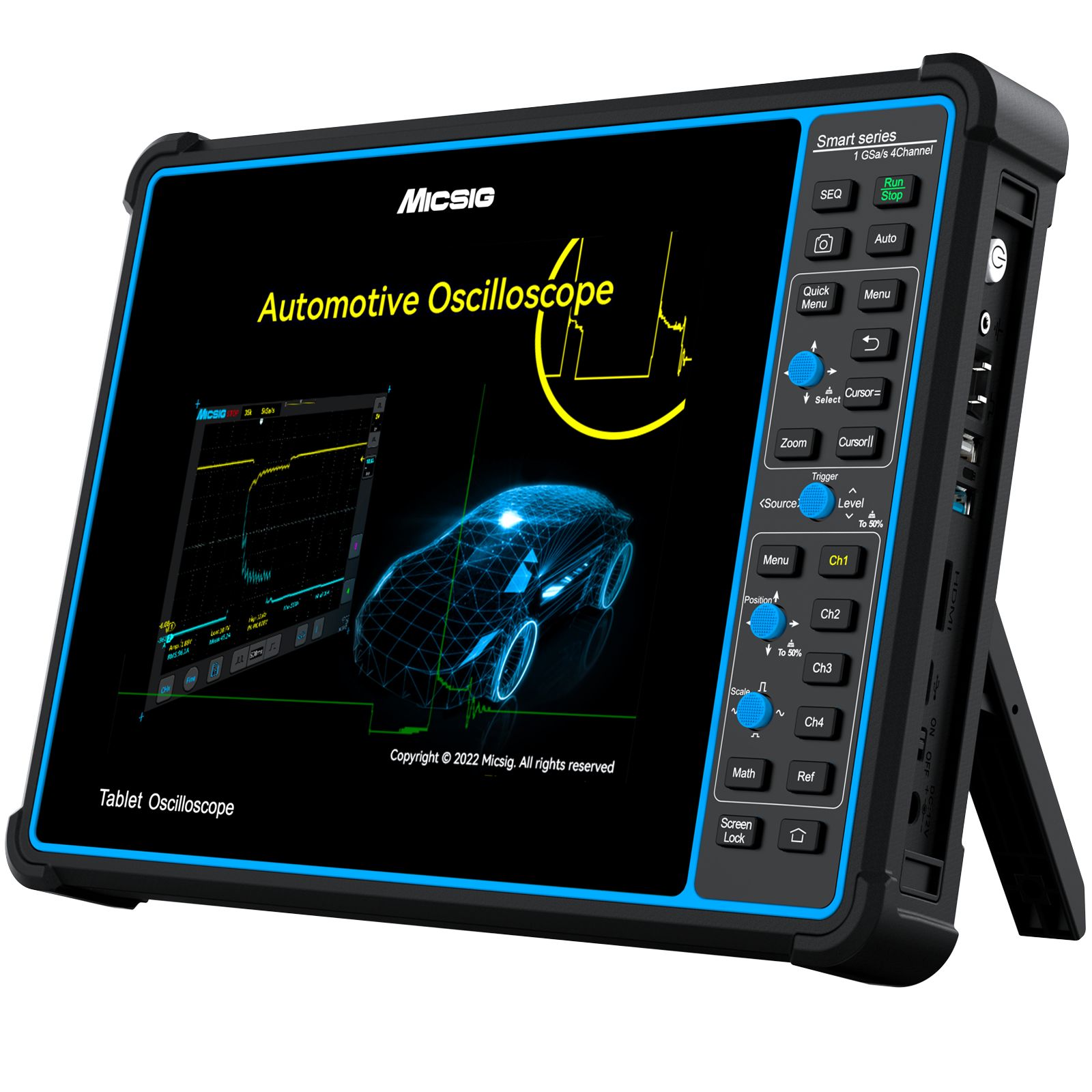

SATO1004 Automotive Tablet Oscilloscope

The SATO1004 is a professional automotive tablet oscilloscope from Micsig's SATO Series oscilloscope lineup, purpose-built for comprehensive vehicle diagnostic and automotive electrical testing applications. As a dedicated Micsig automotive oscilloscope equipped with highly sensitive digital trigger system and comprehensive auto diagnostic presets, this vehicle diagnostic tool enables technicians to quickly identify faults across charging start circuit testing, automotive sensor measurement, automotive actuator testing, and ignition system analysis. Featuring 100MHz bandwidth, 4 analog channels, 1GSa/s maximum sampling rate, 70Mpts memory depth, and an impressive 130000 wfms/s waveform capture rate, the SATO1004 delivers high speed waveform capture with deep memory waveform display for detailed signal analysis. The 8 inch capacitive touchscreen with 800x600 display resolution provides an intuitive user interface with Micsig's patented touch algorithm technology for smooth, responsive operation. Running on Android operating system with 32GB internal storage, this touch operation oscilloscope supports versatile connectivity including Wi-Fi remote control, PC software control, and SCPI programming support for flexible test integration. The built-in hardware filtering function with low pass bandwidth filter enables effective signal interference filtering for cleaner waveform readings. Comprehensive automotive network analysis capabilities cover CAN bus signal decoding, CAN FD protocol testing, LIN bus analysis, FlexRay communication test, and K line signal testing, plus combination test function for multi-signal correlation analysis. Designed as a portable field diagnosis instrument, the SATO1004 features a soft TPU rubber protector for durability and a 7500mAh lithium ion battery delivering 5 hour battery runtime, making it an ideal outdoor testing solution and mobile repair tool for field service equipment applications. HDMI output projection enables convenient training demonstrations and team analysis sessions. Weighing only 1.9kg net weight with USB 3.0 host interface and Type-C interface connectivity, the SATO1004 combines professional automotive diagnostic capability with tablet-level portability for efficient automotive fault troubleshooting and vehicle circuit diagnosis.

Key Features

• Professional Automotive Diagnostics: Preconfigured test presets for charging/starting circuits, sensors, actuators, ignition, and comprehensive vehicle network analysis.
• Solid Oscilloscope Performance: 100MHz bandwidth, 4 analog channels, 1GSa/s sampling rate, 70Mpts memory, and 130,000 wfms/s fast capture rate.
• Comprehensive Bus Decoding: Built-in CAN, CAN FD, LIN, FlexRay, and K line decoding for complete automotive network diagnostics.
• Tablet Touch Operation: 8-inch capacitive touchscreen with intuitive interface and patented touch algorithm for smooth, efficient operation.
• Android Smart System: Android-based OS with 32GB internal storage, supporting app installation and flexible data management.
• Multiple Control Options: Wi-Fi remote control, PC software, and SCPI programming support for versatile testing workflows.
• Portable Field Design: 7500mAh battery with 5-hour runtime, 1.9kg weight, and soft TPU rubber protector for on-site vehicle repair.
• Hardware Filtering: Built-in low-pass bandwidth filter reduces signal interference for cleaner, more accurate waveform readings.
