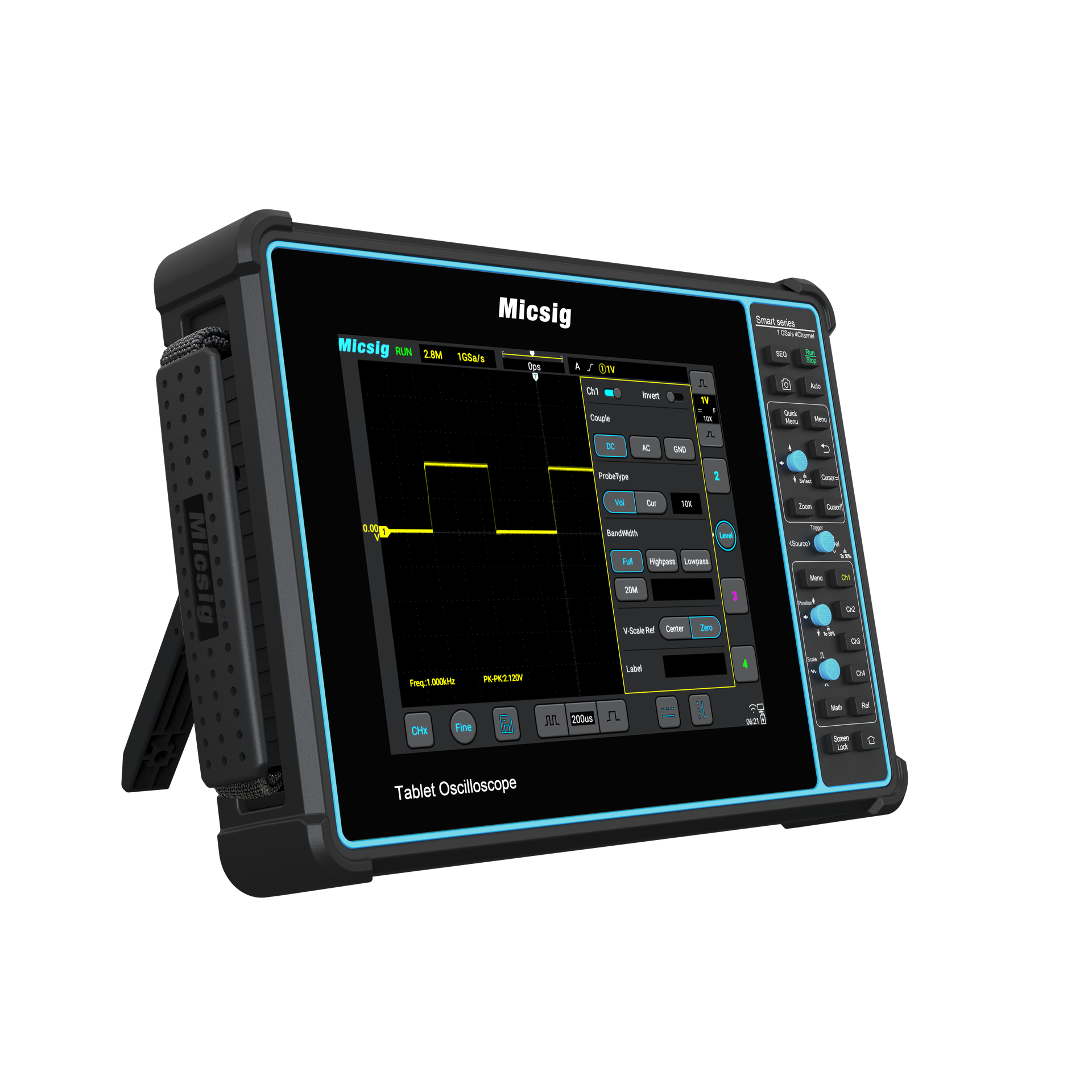

Micsig Tablet Oscilloscope STO1004 Smart Series

The Micsig Tablet Oscilloscope STO1004 is a high-performance 4-channel digital storage oscilloscope from the Smart Series, offering 100 MHz bandwidth, 1 GSa/s maximum sampling rate, and 70 Mpts memory depth. Its innovative design combines a rugged hardware platform with an intuitive Android operating system, all controlled via an 8-inch industrial capacitive touch screen (800x600 resolution) that supports touch, physical buttons, or hybrid operation. With a waveform capture rate of up to 130,000 wfms/s, it reliably captures rare events and glitches. The STO1004 is equipped with comprehensive connectivity including Wi-Fi, USB 3.0/2.0 Host, USB Type-C, and HDMI, enabling remote control through PC software and Android/iOS apps, as well as SCPI command compatibility. Built-in 32 GB storage allows saving large amounts of waveform data, screenshots, and videos, while the 7500 mAh Li-ion battery delivers up to 5 hours of continuous operation—ideal for field service and on-the-go troubleshooting. Standard serial bus decoding supports UART, CAN, LIN, SPI, and I²C protocols, making it a versatile tool for embedded systems analysis. Additional features include 31 automatic measurements, hardware-based digital filters, 256-level intensity grading, and color temperature display to visualize signal frequency. The STO1004 comes with four passive probes (10X, 600Vpk), a power adapter, and a three-year warranty on the main unit.

Key Features

• 4 Analog Channels with 100 MHz Bandwidth: Delivers precise signal capture for a wide range of applications, with 1 GSa/s sampling rate and 70 Mpts memory depth.
• High Waveform Capture Rate: Up to 130,000 wfms/s ensures reliable detection of infrequent anomalies.
• 8-Inch Capacitive Touch Screen: Industrial-grade 800x600 display with multi-touch support, providing an intuitive and responsive user interface.
• Extensive Connectivity: Built-in Wi-Fi, USB 3.0/2.0 Host, USB Type-C, and HDMI for flexible data transfer, remote control, and display expansion.
• Long Battery Life & Portability: 7500 mAh battery offers up to 5 hours of operation, plus a power-off lock for safe travel; compact size (265x192x50 mm) and light weight (1.9 kg).
• Large Internal Storage: 32 GB memory to store waveforms, videos, and screenshots; supports USB flash drive expansion.
• Standard Serial Decoding: Built-in support for UART, CAN, LIN, SPI, and I²C protocols with trigger and decode capabilities.
• Remote Control & SCPI: Compatible with PC software and Android/iOS apps via Wi-Fi or USB, and supports SCPI commands for automated testing.
• Advanced Measurement Functions: 31 automatic measurements, hardware digital filters (high/low pass), cursor measurements, and statistics function.
• Durable Design for Field Use: Rugged construction with power-off lock, and included passive probes per channel.
