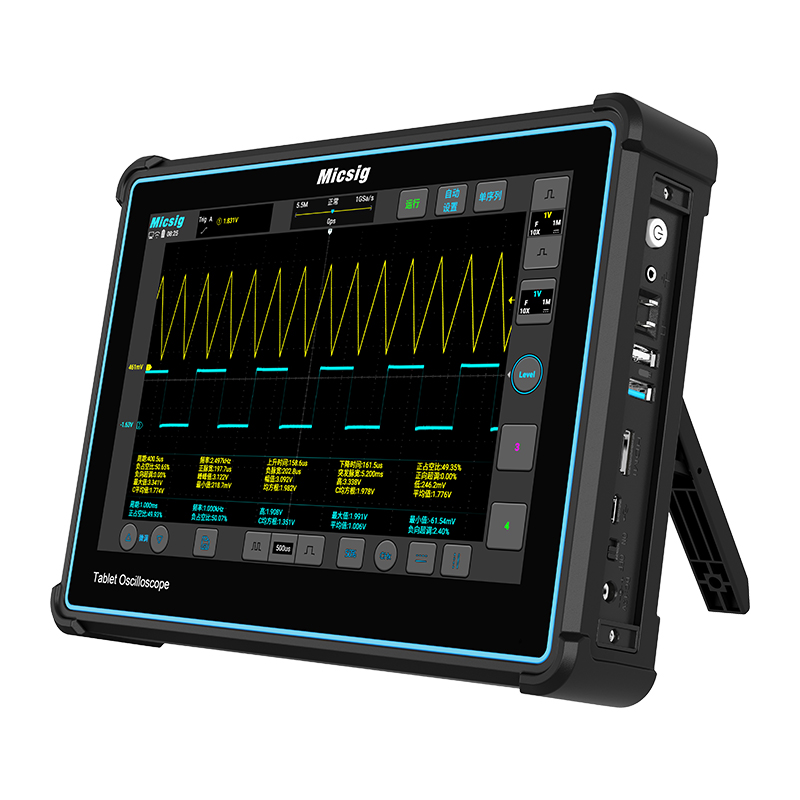

Micsig TO3004 Tablet Oscilloscope: 300MHz Bandwidth, 4 Channels, 2GSa/s Sampling, 220Mpts Memory, 10.1" Touch Screen

The Micsig TO3004 is a high‑performance tablet oscilloscope engineered for embedded debugging, electronic test, and field service applications. With 300MHz bandwidth, four analog channels, a maximum real‑time sampling rate of 2GSa/s, and up to 220Mpts memory depth, it captures fast transients and long time‑base signals with exceptional detail. The instrument’s 300,000 wfms/s waveform update rate and 256‑level intensity grading (plus color temperature display) reveal rare glitches and signal anomalies that traditional scopes might miss.

Built around a 10.1‑inch integrated capacitive touch screen (1280×800 resolution), the TO3004 delivers an intuitive, gesture‑driven user interface—vertical scale can be adjusted by simply pinching two fingers, and cursors can be moved separately or together with a single touch. Powered by a 7.4V/7500mAh Li‑ion battery and featuring a power‑off lock for safe transport, this portable oscilloscope is equally at home on the bench or in the field. It supports comprehensive serial bus decoding and triggering for RS‑232/422/485/UART, CAN, CAN FD, LIN, SPI, and I²C, making it an invaluable tool for automotive diagnostics and industrial control systems.

Advanced features include hardware‑based digital filtering (high‑pass/low‑pass), segmented storage acquisition (up to 10,000 events with playback), and a fast storage function that saves a full 220Mpts screen in BIN format more than 70% faster than traditional oscilloscopes. The TO series also offers 31 automatic measurements with statistics (up to 10,000 readings), advanced math (+, −, ×, ÷, FFT, integration, differentiation), and user‑definable channel labels. Remote control is possible via PC software or mobile app (Android/iOS) over Wi‑Fi or USB, and HDMI output allows projection for training or educational purposes. With 32GB of internal storage, Wi‑Fi connectivity, and a rugged yet lightweight design (1.9kg with battery), the TO3004 is the go‑to choice for engineers who need a versatile, high‑bandwidth oscilloscope in a portable form factor.

Key Features

• High Bandwidth & Sampling: 300MHz bandwidth, 4 analog channels, up to 2GSa/s real‑time sampling rate.
• Deep Memory: 220Mpts maximum memory depth for detailed analysis of long acquisitions.
• Fast Waveform Capture: 300,000 wfms/s update rate with 256‑level intensity grading and color temperature display.
• Large Touch Display: 10.1" capacitive touch screen, 1280×800 resolution, with intuitive multi‑touch gestures.
• Portable & Battery‑Powered: Built‑in 7.4V/7500mAh Li‑ion battery; power‑off lock for safe field travel.
• Comprehensive Serial Decoding: RS‑232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C hardware‑based decoding and triggering.
• Advanced Triggering: Edge, pulse, logic, N‑edge, runt, slope, timeout, video, and serial bus triggers.
• Segmented Storage: Capture up to 10,000 events with playback for intermittent signals (TO3004/3002/2004).
• Fast Storage Function: Save a full 220Mpts waveform in BIN format more than 70% faster than traditional scopes.
• Hardware Digital Filtering: High‑pass/low‑pass filters (20MHz cutoff, down to 30Hz) to eliminate interference.
• Remote Control & Connectivity: Wi‑Fi, USB, and HDMI; remote control via PC or mobile app (Android/iOS).
• Extensive Measurements: 31 automatic measurements with statistics (max. 10,000 readings).
• Large Internal Storage: 32GB internal memory for saving waveforms, screenshots, and videos.
• Android Operating System: Industry‑first Android‑based OS for smooth performance and future applications.
