FSP550-50FS
Article Number:
AX1052
Manufacturer Code:
9PR5500203
Manufacturer:
FSP Technology Ltd.
Accessories for Product
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Product Description

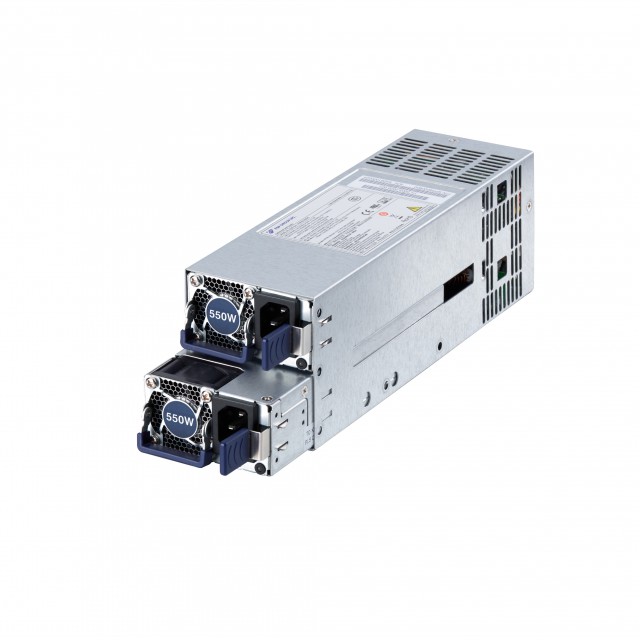

550 W CRPS Industrial Power Supply – FSP550-50FS
The FSP550-50FS is a durable, high-performance 550 W CRPS (Common Redundant Power Supply) industrial Level of power supply, engineered for use in demanding environments such as data centers, servers, and communications systems. Featuring an 80 PLUS Platinum rating, PMBus support, and active Power Factor Correction (PFC), this supply delivers reliable and efficient power. The product also offers protections against over-current (OCP), over-voltage (OVP), over-temperature (OTP), short-circuit safeguards. With its global Certifications, safety and EMC standards, it’s great for regulated applications.
Key Features
- Compact Form: High-output CRPS design in a compact 2U module design with LED indicators for status display, ideal for space-constrained server racks.
- Power & Efficiency: 550 W continuous output with 80 PLUS Platinum efficiency and active PFC for reduced heat and energy cost.
- Full Electrical Protection: OVP, short-circuit protection on all outputs, and an active PFC.
- Quality Assurance: Reliable up to 50 °C ambient and operational altitude up to 5,000 m.
- Hot-Swap Redundancy Ready: Supports 1+1 parallel operation with active load sharing for seamless failover.
- Low Ripple & Noise: A clean power delivery,citical for sensitive computing hardware.
- Certifications & Compliance: UL, CB, CCC, Tuv, CE ROHS.
Specifications
Parameter | Value |
---|---|
Dimensions (L*W*H)(mm) | 250*83*76mm |
Efficiency | 80PLUS Platinum |
Output Power | 550W |
Size | 2U redundant ATX |
Socket | C14 |
Technical data sheets
Legislation and Compliance
-
RoHS.pdf
-
CE
-
UL
-
WEEE
-
UKCA
