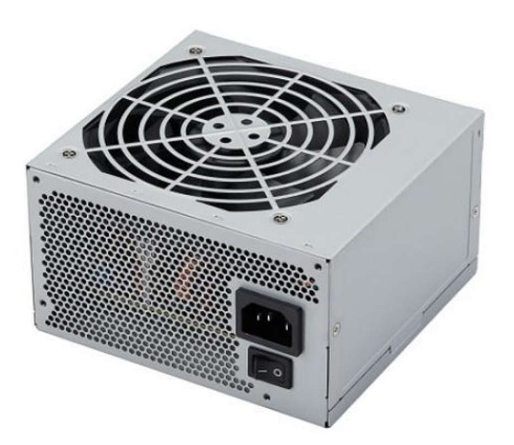

500-Watt ATX Power Supply – FSP500-50AAC

The FSP500-50AAC is a durable, high-performance 500 W ATX industrial Level of power supply delivering up to 85 % efficiency at 50 % load, engineered for use in demanding environments like industrial PCs, workstations, servers, and automation systems. With Active PFC, an 80 PLUS Bronze rating and ATX compliance, this supply delivers reliable and efficient power. It also offers protections against over-current (OCP), over-voltage (OVP), over-temperature (OTP) and short-circuit. Additionally, it has long-life capacitors. Cooling is done by a built-in 120mm quiet fan. With its global Certifications, safety and EMC standards, it’s great for regulated applications.

Key Features

• High Efficiency & PFC: 80 PLUS Bronze rating with with up to 85 % efficiency at 50 % load.
• Multi-Level Protection: Over-current, over-voltage, over-temperature, and short-circuit protections with resettable shutdown.
• Reliable Cooling & Durability: Built-in 120 mm fan ball-bearing fan for minimal noise, 25 °C-temperature tested with 100,000 hour MTBF and Long-life capacitors.
• Certified Safety: RoHS, CE, UL, WEEE, & UKCA certified with full compliance
• Compact Design: Durable metal casing (140 × 150 × 86 mm) with 100-240 Vac universal input, easy for integration.
