Product Description

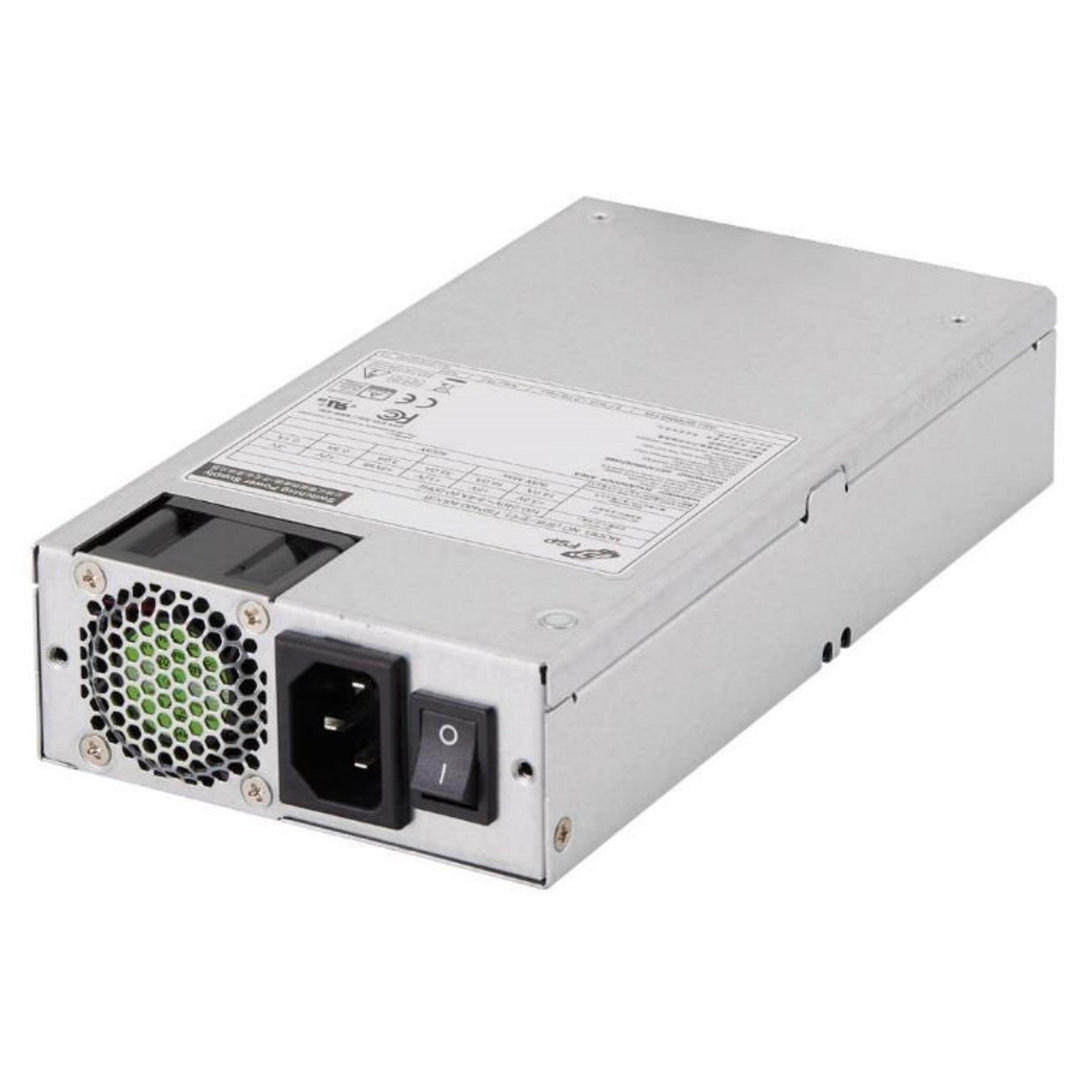

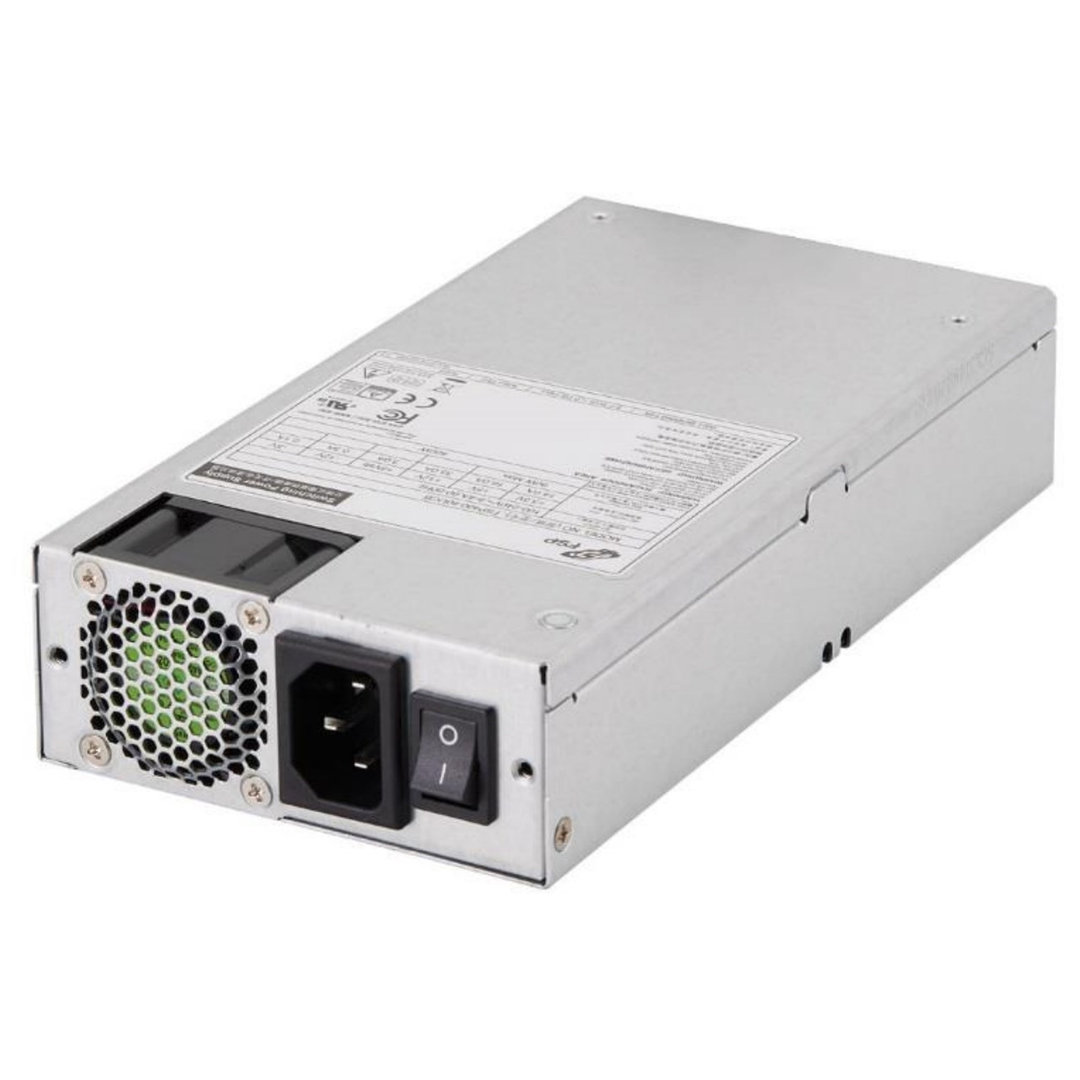

300W1U Industrial PC Power Supply – FSP300-50UCB
The FSP300-50UCB is a durable, high-performance 300W1U industrial Level of power supply, engineered for use in demanding environments such as IPC controllers, servers, NAS systems, and automation equipment. Supporting universal input (90–264 VAC) With an 80 PLUS Bronze rating, this supply delivers reliable and efficient power with low ripple and noise. The product also offers protections against over-current (OCP), over-voltage (OVP), over-temperature (OTP), short-circuit, and resettable power shutdown. it includes as well a 100% high-potential (Hi-pot) tested, a burn-in under 50 °C and an MTBF of 100,000 hours at 25 °C. Cooling is done by a built-in 40 mm cooling fan. With its global Certifications , safety and EMC standards, it’s great for regulated applications.
Key Features
- Compact Design: 190 × 100 × 40.5 mm ideal for space-saving.
- Efficient Output: 80 PLUS Bronze performance with continuous power.
- Active Cooling: 40 mm fan with compliant vents for low-noise, stable operation.
- Full Protection Architecture: OCP, OVP, OTP, short-circuit protection on all outputs, with resettable shutdown.
- Quality Assurance: 100 % Hi-Pot tested and burn-in at 50 °C; MTBF 100k hours at 25 °C.
- Universal Power Ready: 90–264 VAC input and convenient C14 socket.
- Regulatory Compliance: CE, WEEE, UKCA certified for safe and eco-conscious deployment.
Specifications
Parameter | Value |
---|---|
Cooling | Fan 40mm |
Dimensions (L*W*H)(mm) | 190*100*40.5mm |
Efficiency | 80PLUS Bronze |
Output Power | 300W |
Size | 1U |
Socket | C14 |
Weight | 1.3kg |
