FSP250-60MDN
Article Number:
AX1073
Manufacturer Code:
9PA2506301
Manufacturer:
FSP Technology Ltd.
Accessories for Product
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Product Description

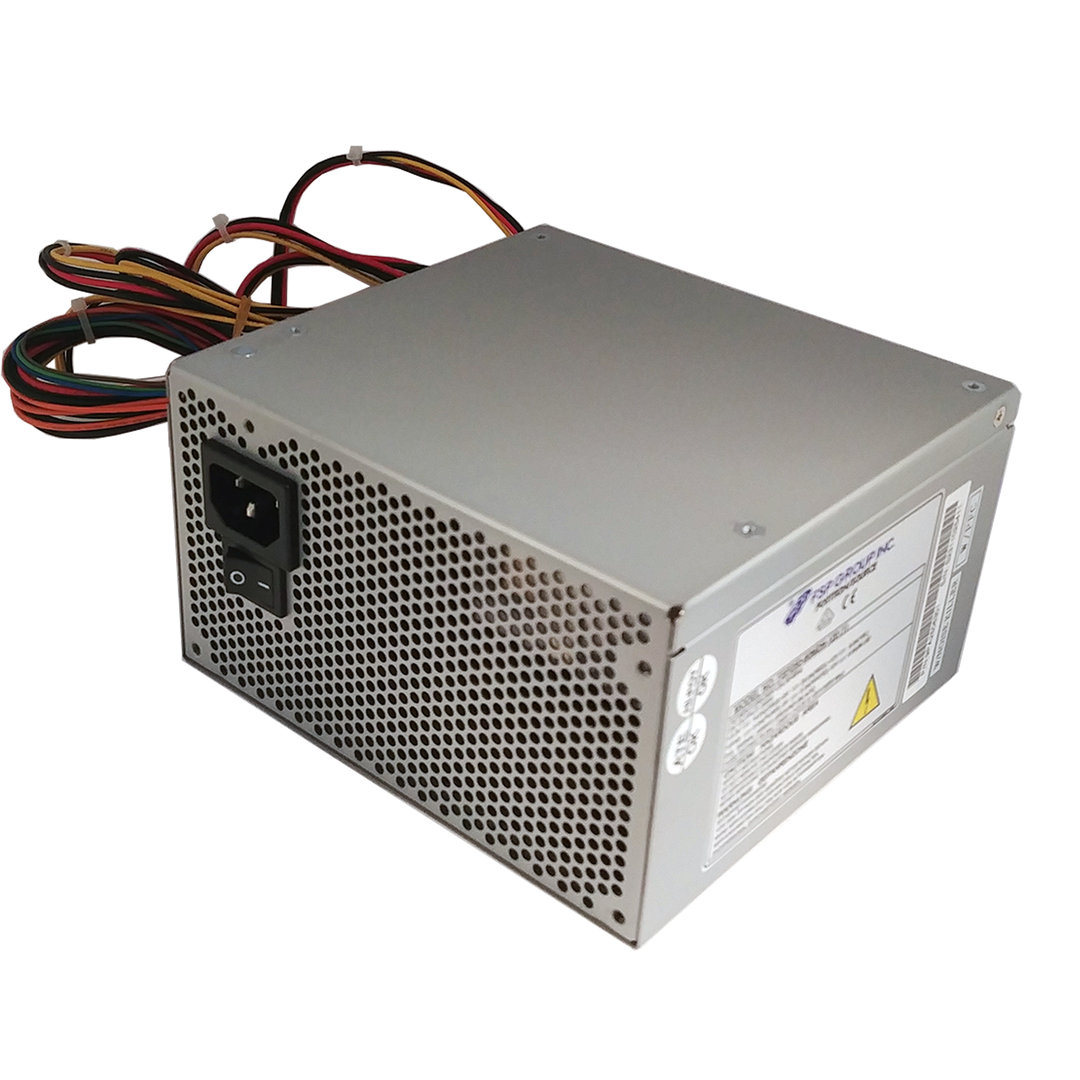

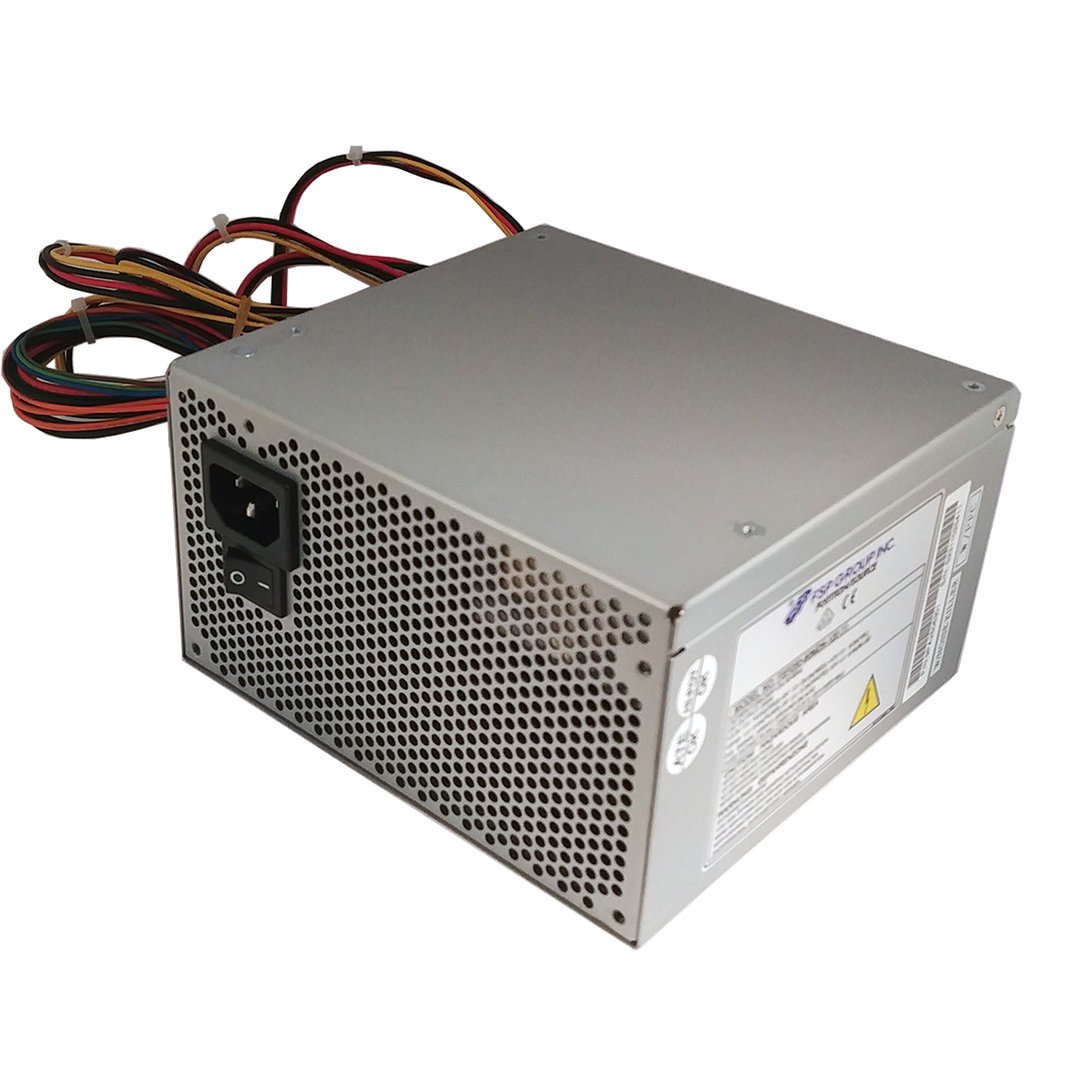

250 W ATX Power Supply – FSP250-60MDN
The FSP250-60MDN is a full-size 250 W ATX (PS2) power supply designed for compact PC systems and industrial builds. Certified with active PFC (Power Factor Correction) and featuring a 120 mm cooling fan, this PSU delivers stable and efficient performance. It includes a standard C14 socket, robust connectors for Pentium 4/Athlon CPUs, and operates reliably across a wide input voltage range—making it ideal for both legacy and modern systems. Specifications include comprehensive voltage rails compliant with ATX requirements.
Key Features
- Compact Form: 140 × 150 × 86 mm design, ideal for tight enclosures.
- Power & Efficiency: 250 W continuous output with an active PFC ensuring clean, stable power with reduced heat and energy cost.
- Effective Cooling: 120 mm fan ensures thermal stability and less noise.
- Wide AC Input: Supports typical 230–240 VAC at 3 A, 50–60 Hz, adaptable to various power environments via C14 inlet.
- Multi-Rail Output:
- +3.3 V at 14 A
- +5 V at 25 A
- +12 V at 8 A
- –12 V at 0.8 A
- +5 VSB @ 2 A
- -5 VSB @ 0.3 A Combined +3.3 V and +5 V output limited to 165 W.
- Certifications & Compliance: UL,CB,TUV, CE, FCC, ROHS.
Specifications
Parameter | Value |
---|---|
Cooling | Fan 120mm |
Dimensions (L*W*H)(mm) | 140*150*86mm |
Output Power | 250W |
Size | PS2 ATX |
Socket | C14 |
Weight | 1.90kg |
Technical data sheets
Legislation and Compliance
-
RoHS.pdf
-
CE
-
WEEE
-
UKCA
