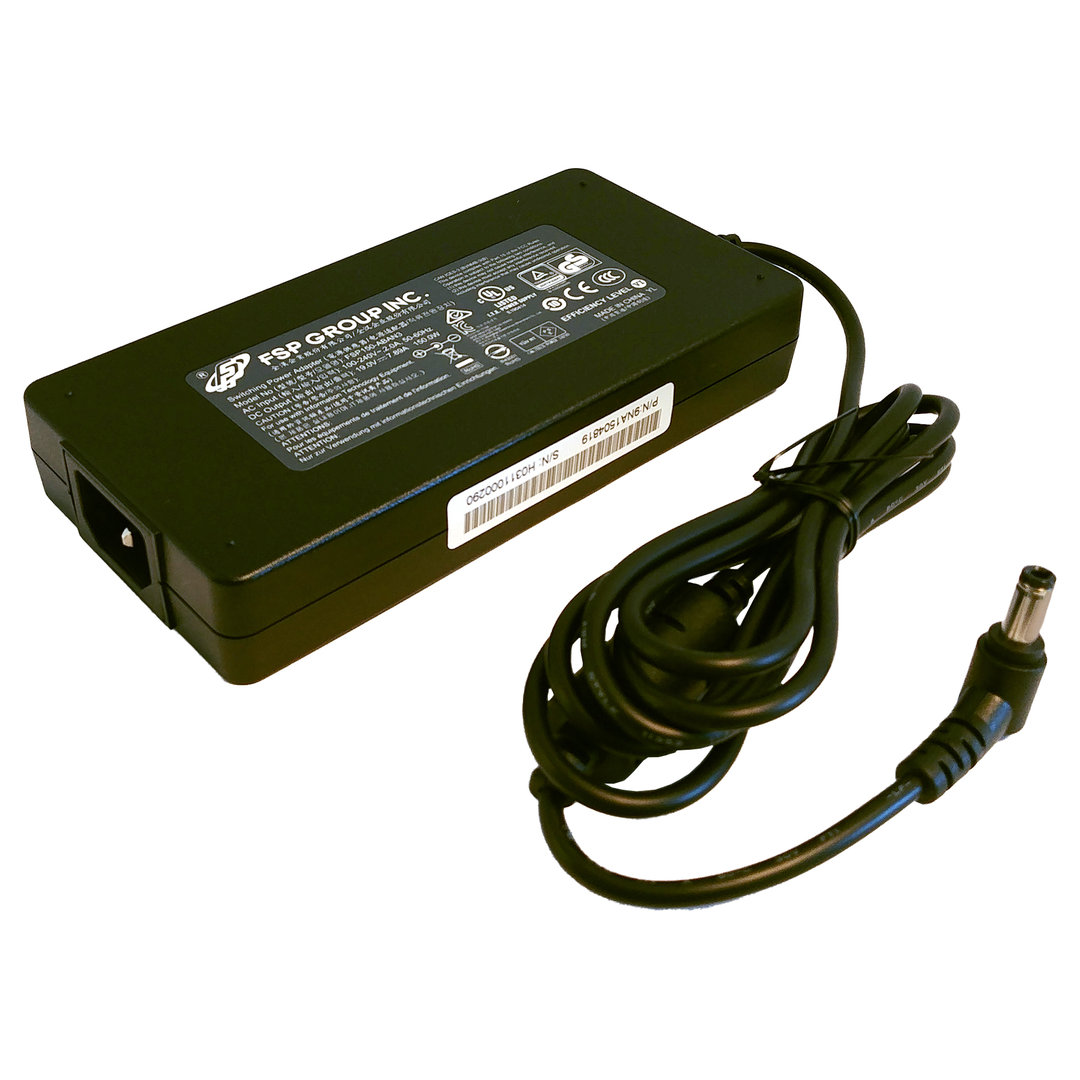

FSP150-ABAN3 19V 7.89A 150W AC-DC Power Adapter with C14 Inlet, DoE Level VI & CoC Tier 2 Efficiency

The FSP150-ABAN3 is a 150-watt AC-DC power adapter from the FSP150-AxxN3 series, specifically designed for industrial and ITE applications such as IPC systems, embedded systems, printers, monitors, POS terminals, and PoE equipment. This adapter operates from a universal input voltage of 90-264 VAC (47-63 Hz) and delivers a regulated 19V DC output at 7.89A, with a maximum output power of 150W. It features a standard C14 AC inlet and complies with stringent energy efficiency regulations, achieving ≥88% average efficiency meeting DoE Level VI and ≥89% meeting CoC Version 5 Tier 2. The unit incorporates active Power Factor Correction (PFC) circuit with power factor ≥0.9 at full load, and includes comprehensive protection features: over voltage, over current, short circuit, over temperature, and brown-out protection. With a no-load power consumption of ≤0.15W, touch current ≤0.25mA, and hold-up time ≥10ms, it ensures reliable operation in demanding environments. The adapter is certified to IEC 62368-1 and CB 60950-1 safety standards, and meets EMC requirements including EN55032 Class B, FCC Part 15B Class B, and various immunity standards (EN61000-4-2/3/4/5/6/8/11). It offers an MTBF of 300,000 hours at 25°C (SR332) and can operate at altitudes up to 5000 meters. The output power derating curve ensures stable performance from 0°C to 40°C (100% load) up to 70°C (55% load), making it suitable for a wide range of industrial and commercial applications.

Key Features

• High Efficiency & Energy Saving: Meets DoE Level VI (≥88%) and CoC Tier 2 (≥89%) efficiency standards; no-load power consumption below 0.15W.
• Wide Input Voltage Range: Accepts 90-264 VAC, 47-63 Hz, with active PFC (PF ≥0.9) for global compatibility.
• Robust Protection: Integrated over voltage, over current, short circuit, over temperature, and brown-out protection for enhanced system safety.
• Industrial-Grade Reliability: 300,000 hours MTBF at 25°C, operating altitude up to 5000m, and compliance with EN55032 Class B/ FCC Part 15B EMC standards.
• Versatile Application: C14 AC inlet, 19V/7.89A output, suitable for ITE, industrial control, and PoE systems requiring stable 150W power.
