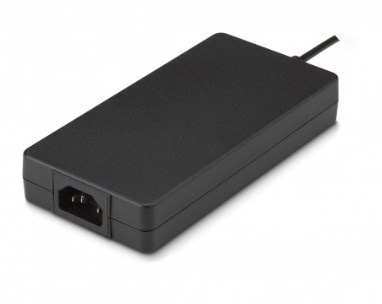

FSP150-AAAN3 150W 24V Industrial AC-DC Power Adapter

The FSP150-AAAN3 is a high-performance 150 watts AC to DC adapter designed for industrial applications requiring reliable and efficient power conversion. This psu power supply operates across a universal input voltage range of 90-264 Vac, making it suitable for global use. It delivers a stable 24Vdc output with a current capacity of 6.25A, ideal for powering IPC systems, POS systems, PoE applications, embedded systems, printers, and monitors. The unit complies with DoE Level VI and CoC V5 Tier 2 efficiency standards, ensuring energy savings and reduced operational costs. It features comprehensive protection mechanisms including Over Voltage Protection, Over Current Protection, and Over Temperature Protection. With a compact form factor of 151×75×25 mm and a built-in PFC circuit, this adapter meets stringent EMC standards such as EN55032 Class B and FCC Part 15B. It also includes a DIN 4Pol connector and a C14 inlet, providing flexibility for various installation environments. The FSP150-AAAN3 is certified under IEC 62368-1 and CB 60950-1, ensuring high safety and reliability for continuous industrial use.

Key Features

• Wide Input Voltage Range: Operates from 90-264 Vac at 47-63 Hz, supporting global power grids with input current ≤2A at full load.
• High Efficiency & Energy Savings: Meets DoE Level VI and CoC V5 Tier 2 with ≥88% efficiency, no-load power consumption ≤0.15W, and power factor ≥0.9 at full load.
• Stable 24V DC Output: Provides 24Vdc at 6.25A with 150W total output, featuring over voltage, short circuit, over current, and over temperature protection.
• Compact & Durable Design: Measures 151×75×25 mm with a 1800mm cable, DIN 4Pol connector, and C14 inlet, built for industrial environments.
• EMC & Safety Compliance: Certified to IEC 62368-1, CB 60950-1, and meets EN55032 Class B, FCC Part 15B, and EN61000-4 series standards.
• Reliable Performance: MTBF ≥300,000 hours at 25°C, withstand voltage 4242Vdc, and operating altitude up to 5000 meters.
