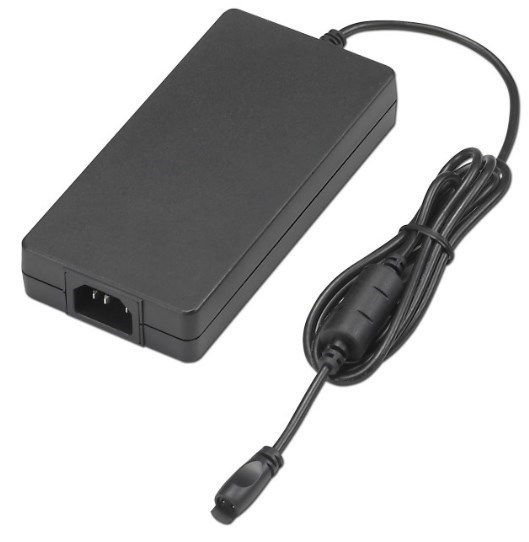

FSP150-AAAN3 150W 24V AC-DC Power Supply Adapter

The FSP150-AAAN3 is a 150-watt AC-DC power adapter designed for demanding industrial and ITE applications including IPC systems, embedded systems, printers, monitors, POS systems, and PoE applications. It accepts a universal input of 90-264VAC (47-63Hz) and delivers a regulated 24Vdc output at 6.25A (150W continuous). Housed in a compact 151×75×25mm enclosure with a C14 AC inlet, this adapter combines high efficiency (≥88% average per DOE Level VI, ≥89% per CoC V5 Tier 2) with low no-load power consumption (≤0.15W). Built-in protections include over voltage, short circuit, over current, and over temperature, ensuring reliable operation under diverse conditions. The unit meets CISPR32 EN55032 Class B, FCC Part 15B, and EN55024 EMC standards, and is safety certified to IEC 62368-1 and CB 60950-1. With a minimum hold-up time of 10ms, power factor ≥0.9, MTBF of 300,000 hours, and a wide operating temperature range (0-40°C full load, derated linearly to 55% load at 70°C), the FSP150-AAAN3 delivers robust performance in space-constrained environments.

Key Features

• High Efficiency & Energy Saving: Meets DOE Level VI and CoC V5 Tier 2 with ≥88%/≥89% efficiency; no-load power consumption below 0.15W.
• Universal AC Input & PFC: Operates from 90-264VAC (47-63Hz) with active PFC (PF ≥0.9) for worldwide use.
• Comprehensive Protections: Built-in OVP, OCP, SCP, OTP, and brown-out protection for safe and reliable operation.
• Industrial-Grade Reliability: 300,000 hours MTBF, withstand voltage 4242Vdc, operating altitude up to 5000m, and operating temperature range with derating.
• EMC & Safety Compliance: Certified IEC 62368-1, CB 60950-1; meets EN55032/EN55024 Class B and FCC Part 15B.
• Compact & Versatile Design: 151×75×25mm size with C14 inlet; ideal for space-limited IPC, POS, embedded, and PoE systems.
