FSP120-AAAN3
Article Number:
DA1183
Manufacturer Code:
9NA1206613
Manufacturer:
FSP Technology Ltd.
Accessories for Product
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Product Description

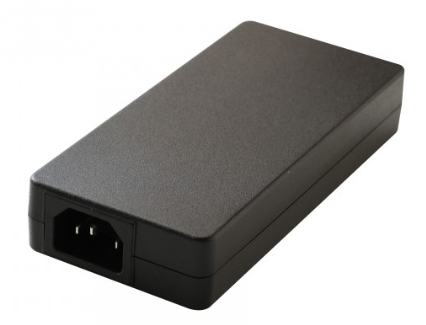

120 W Desktop Adapter – FSP120-AAAN3
The FSP120-AAAN3 is a high-performance 120 W desktop adapter designed for industrial and computing applications. With universal AC input via IEC320-C14 and a regulated 24 V / 5.0 A DC output, it ensures stable and efficient power delivery. Its polarity is fixed (P2=+, P1=+, P4=-, P3=-, Shield=-) for safe integration.
With compact dimensions (151 × 75.6 × 25.4 mm), DOE Level VI efficiency, and global certifications (CB, UL, TUV, CCC, RoHS, WEEE), the adapter is well-suited for OEMs, laboratories, and professional environments.
Key Features
- Output Power: 120 W (24 V / 5.0 A DC).
- Input: Full-range AC, IEC320-C14 socket.
- Dimensions: 151 × 75.6 × 25.4 mm.
- Compliance: CB, UL, TUV, CCC, RoHS, WEEE.
- Efficiency: DOE Level VI certified.
Specifications
| Parameter | Value |
|---|---|
| Cable Length | 1500mm |
| Connector | 5.5*2.5*11mm 90° |
| Dimensions (L*W*H)(mm) | 151*75*25mm |
| Efficiency | DoE Level VI |
| Input Voltage | 90-264Vac |
| Output Current | 5A |
| Output Power | 120W |
| Output Voltage | 24Vdc |
| Socket | C14 |
| Weight | 0.42kg |
Technical data sheets
Legislation and Compliance
-
RoHS.pdf
-
CE
-
UL
-
WEEE
-
UKCA
