Product Description

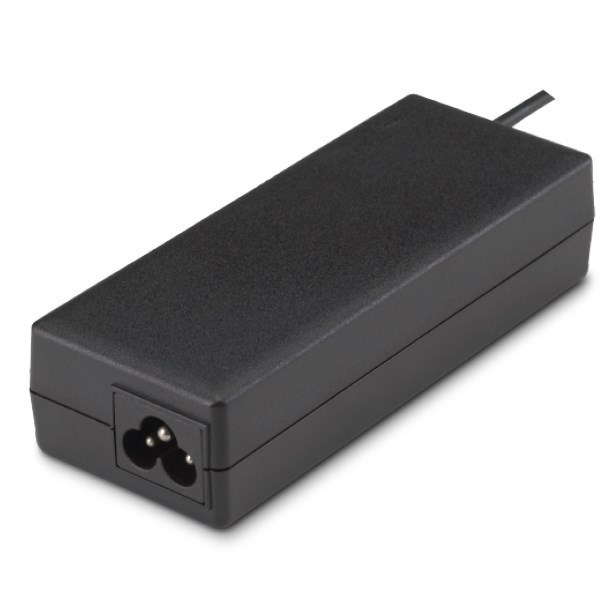

90 W Desktop AC-DC Adapter - FSP090-DBBN3
The FSP090-DBBN3 is a reliable 90 W adapter designed for industrial controllers, displays, and peripherals. With full-range AC input and stable 19 V / 4.74 A output, it provides dependable performance. Built-in protections ensure safe operation in diverse applications.
Key Features
- Power: 90 W (19 V / 4.74 A).
- Input: Universal 90–264 VAC.
- Protections: OVP, OCP, SCP.
- Applications: Monitors, IPC, networking gear.
Specifications
| Parameter | Value |
|---|---|
| Cable Length | 1500mm |
| Connector | 5.5*2.5*11mm 180° |
| Dimensions (L*W*H)(mm) | 129*51*30.9mm |
| Efficiency | DoE Level VI |
| Input Voltage | 90-264Vac |
| Output Current | 4.74A |
| Output Power | 90W |
| Output Voltage | 19Vdc |
| Socket | C6 |
| Weight | 0.30kg |
Technical data sheets
Legislation and Compliance
-
RoHS.pdf
-
CE
-
UL
-
WEEE
-
UKCA
