Product Description

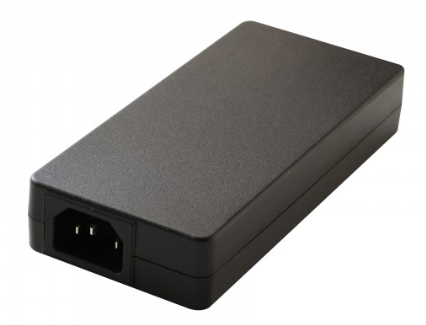

90 W Desktop AC-DC Adapter - FSP090-AAAN3
The FSP090-AAAN3 is a dependable 90 W desktop AC-DC adapter suited for notebooks, embedded devices, and peripherals. It features universal input (90–264 VAC) and delivers a clean, regulated DC output with low ripple. A full suite of protections and production tests (burn-in and Hi-Pot) help ensure safe, continuous operation in demanding workloads.
With energy-efficient design and industry-standard connectors, integration and replacement are straightforward across global deployments.
Key Features
- Power Class: 90 W regulated DC output.
- Universal Input: 90–264 VAC, 47–63 Hz.
- Efficiency: DOE/ErP compliant.
- Protections: OVP, OCP, OTP, SCP.
- EMC: ITE Class B standards.
- Integration: Standard AC inlet and DC plug.
Specifications
| Parameter | Value |
|---|---|
| Cable Length | 1500mm |
| Connector | 5.5*2.5*12mm 180° |
| Dimensions (L*W*H)(mm) | 140*65*25mm |
| Efficiency | DoE Level VI |
| Input Voltage | 90-264Vac |
| Output Current | 3.75A |
| Output Power | 90W |
| Output Voltage | 24Vdc |
| Socket | C14 |
| Weight | 0.33kg |
Technical data sheets
Legislation and Compliance
-
RoHS.pdf
-
CE
-
UL
-
WEEE
-
UKCA
