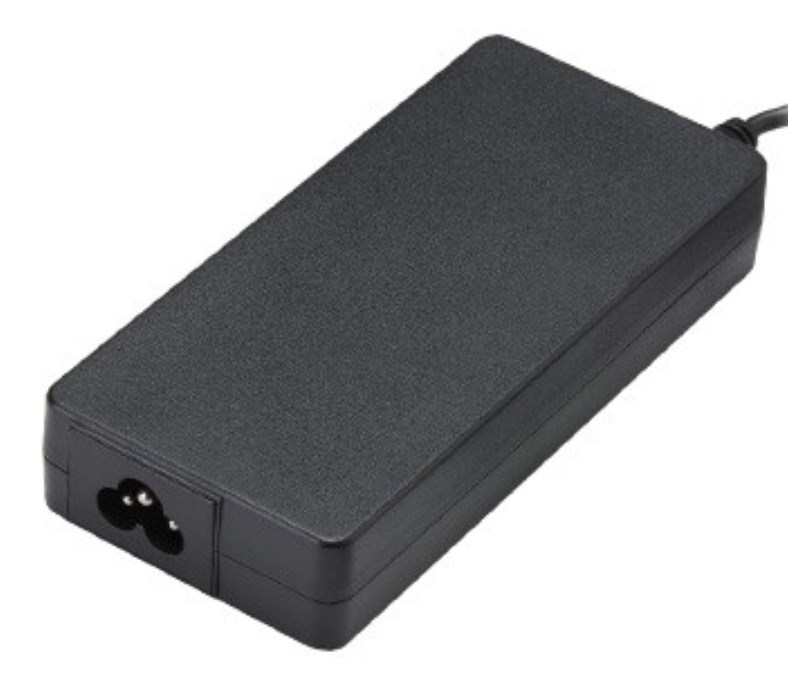

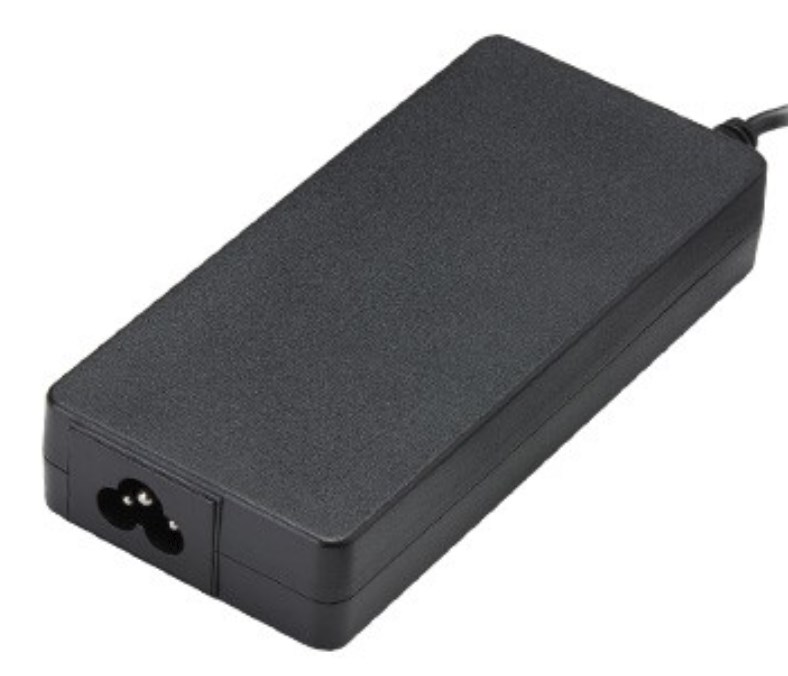

FSP090-A1BR3 90W USB PD Type-C Adapter

The FSP090-A1BR3 is a 90-watt USB Power Delivery Type-C adapter from the FSP090(100)-A1BR3 series, designed to provide reliable and efficient power for mobile phones, tablets, laptops, monitors, payment terminals, set-top boxes, workstations, and other USB-C powered devices. It accepts a universal input voltage of 90-264VAC (47-63Hz) with a maximum input current of 1.4A at full load, and features no-load power consumption below 0.1W (115/230Vac, with USB-C plug removed). The adapter delivers five programmable output voltages: 5V/3A, 9V/3A, 12V/3A, 15V/3A, and 20V/4.5A, achieving a total output power of 90W. It meets DOE Level VI efficiency (≥88%) and CoC Version 5 Tier 2 (≥89%) standards, ensuring energy savings. Built-in protection includes over-voltage protection (latch mode at 24V), over-current/short-circuit protection (auto-recovery), over-temperature protection (latch mode), and brown-out protection (55-70Vac). The adapter operates over a wide temperature range (0-70°C, with derating above 40°C) and can be used at altitudes up to 5000 meters. It comes with a 1500±50mm fixed USB-C cable, has a touch current ≤0.2mA, and meets stringent EMC standards (EN55032 Class B, FCC Class B, VCCI, EN61000-3-2, EN61000-3-3, and various immunity tests). Safety approvals include IEC 62368-1 and CB 60950-1, with high reliability demonstrated by an MTBF of 300,000 hours at 25°C. The adapter also features a fast turn-on time ≤5 seconds, hold-up time ≥5ms, and is designed with a C6 AC inlet.

Key Features

• Multi-Voltage USB-C PD Output: Supports 5V/3A, 9V/3A, 12V/3A, 15V/3A, and 20V/4.5A (90W max) for broad device compatibility.
• High Efficiency & Energy Saving: Meets DOE Level VI (≥88%) and CoC V5 Tier 2 (≥89%) standards with <0.1W no-load consumption.
• Comprehensive Protection: Includes OVP (24V latch), OCP/SCP (auto-recovery), OTP (latch), and brown-out protection for safe operation.
• Wide Operating Conditions: Universal AC input (90-264VAC), operating temperature 0-70°C, and altitude up to 5000m.
• Built-In 1500mm USB-C Cable: Convenient fixed cable with 1500±50mm length for flexible connectivity.
• Global Safety & EMC Compliance: Certified to IEC 62368-1, CB 60950-1, and meets EN55032/FCC Class B emissions and immunity standards.
• High Reliability: 300,000 hours MTBF at 25°C ensures long-term dependable performance.
