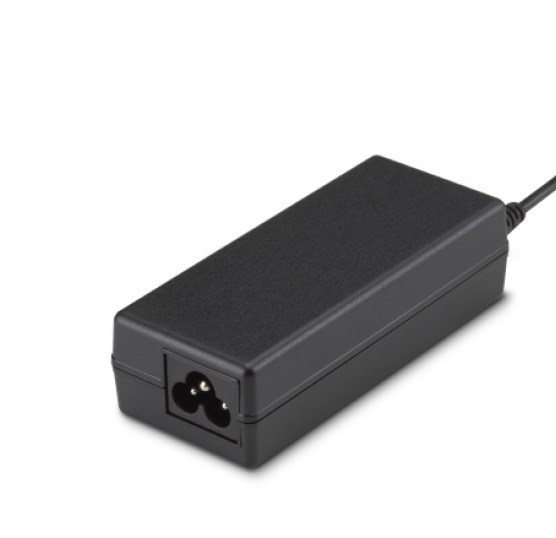

FSP065-RBBN3 65W AC-DC Power Adapter with PFC, DOE Level VI Efficiency

The FSP065-RBBN3 is a 65‑watt AC to DC adapter designed for mid‑range power applications including IPC systems, embedded systems, printers, monitors, POS systems, and PoE devices. This compact and reliable power supply accepts a wide input voltage range of 90‑264 VAC (47‑63 Hz) and provides a regulated output of 19 V DC at 3.42 A, with a total output power of 65 W. It meets international safety standards (IEC 62368‑1, CB 60950‑1) and EMC requirements (CISPR32 EN55032 Class B, EN55024, FCC Part 15B Class B). The adapter achieves high efficiency with DOE Level VI (88 %) and CoC Version 5 Tier 2 (89 %) compliance, and includes active Power Factor Correction (PFC) with PF ≥0.9. Built‑in protections include over voltage, over current, short circuit, over temperature, and brown‑out. With a no‑load power consumption of less than 0.15 W, touch current ≤0.25 mA, and MTBF of 300,000 hours at 25 °C, the FSP065‑RBBN3 ensures reliable operation in demanding environments. It operates at altitudes up to 5000 meters and features a withstand voltage of 4000 V DC between input and output. The unit supports power derating based on temperature: 100 % load at 0‑40 °C, 85 % at 50 °C, 70 % at 60 °C, and 55 % at 70 °C. Its low‑profile design and comprehensive protection features make it ideal for ITE and industrial applications.

Key Features

• Wide Input Range: 90‑264 VAC universal input with 47‑63 Hz frequency, suitable for global use.
• High Efficiency: Meets DOE Level VI (88 %) and CoC v5 Tier 2 (89 %) efficiency standards, reducing energy loss.
• Active PFC: Power factor ≥0.9 at full load, improving power quality and compliance.
• Comprehensive Protections: Over voltage, over current, short circuit, over temperature, and brown‑out protection for enhanced safety.
• Low No‑Load Power: ≤0.15 W no‑load consumption, meeting stringent energy‑saving requirements.
• High Reliability: 300,000 hours MTBF at 25 °C per SR332, ensuring long‑term durability.
• EMC Compliance: Meets CISPR32 EN55032 Class B, EN55024, FCC Part 15B Class B, and various immunity standards.
• Wide Operating Temperature: Supports full load from 0 °C to 40 °C, with derated operation up to 70 °C.
• Compact Low Profile: Space‑saving design suitable for integration into space‑constrained equipment.
• Safety Certified: Approved to IEC 62368‑1 and CB 60950‑1, ensuring global acceptance.
