FSP060-DAAN3 60W 24V 2.5A AC-DC Adapter – High-Efficiency Power Supply for Industrial & Embedded Systems

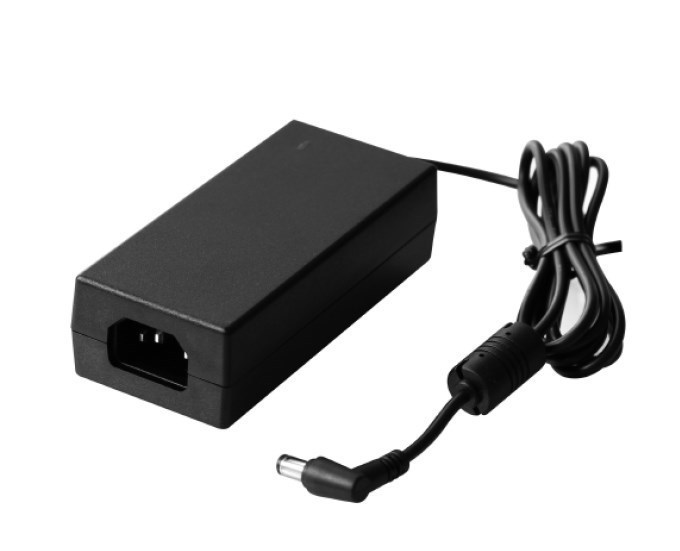

The FSP060-DAAN3 is a compact and highly efficient AC-DC power adapter from FSP Technology, designed to deliver 24Vdc output at 2.5A (60W) continuous power. Engineered with a wide universal input range of 90-264Vac, this power supply is ideal for global applications, including IPC systems, POS systems, embedded systems, printers, and monitors. It strictly complies with the latest international energy efficiency standards, meeting both DoE Level VI and CoC V5 Tier 2 requirements, achieving an average active mode efficiency of ≥89% and ultra-low no-load power consumption of ≤0.15W (at 230Vac). The adapter incorporates comprehensive protection features such as overvoltage protection (25-38Vdc trip), overcurrent protection (≤5A limit), short circuit protection with auto-recovery, and brown-out protection, ensuring reliable operation and system safety. Its robust design is further validated by compliance with IEC61000-4 immunity standards (EFT, Surge, ESD), EMI Class B regulations (FCC, CISPR32/EN55032, VCCI Level II), and a high Mean Time Between Failures (MTBF) of 300,000 hours at 25°C.

Key Features

• Universal AC Input & Global Efficiency Compliance: Accepts 90-264Vac (47-63Hz) input. Exceeds DoE Level VI (≥88% avg. efficiency, ≤0.21W no-load @115Vac) and CoC V5 Tier 2 (≥89% avg. efficiency, ≤0.15W no-load @230Vac) energy-saving standards.
• Precise & Stable 24Vdc Output: Delivers regulated 24V ±5% with 2.5A continuous current. Features low output ripple and noise ≤200mVp-p, measured with 0.1µF ceramic and 47µF aluminum capacitors paralleled at the cable end.
• Comprehensive Multi-Level Protection: Features overvoltage (25-38Vdc), overcurrent (≤5A), and short circuit protection with auto-recovery mode. Includes under-voltage (brown-out) protection to safeguard connected equipment during fault conditions.
• Robust Environmental & EMC Performance: Engineered for reliability with immunity to EFT (±1kV), surge (±1kV differential, ±2kV common mode), and ESD (±4kV contact, ±8kV air) per IEC61000-4 standards. Meets EMI Class B limits (FCC Part 15J, CISPR32/EN55032, VCCI Level II).
• Compact Mechanical Design & High Reliability: Features a space-saving footprint (110 x 62.0 x 31.5 mm), lightweight (150g), and a standard IEC 320-C14 inlet. Vibration tested for durability, with an MTBF of >300,000 hours at 25°C (Telcordia SR-332 Issue2).
• Safety & Quality Certifications: Compliant with ErP/DoE standards, RoHS directive, and safety requirements with Hi-Pot testing (2.5KV primary to secondary/PE). Leakage current ≤0.25mA at 264Vac/50Hz.
• Quiet & Versatile Operation: Acoustic noise <30dB under all load conditions. Operating temperature range 0-40°C (full load) with linear derating to 50% load at 70°C. Suitable for altitudes up to 5000 meters.
