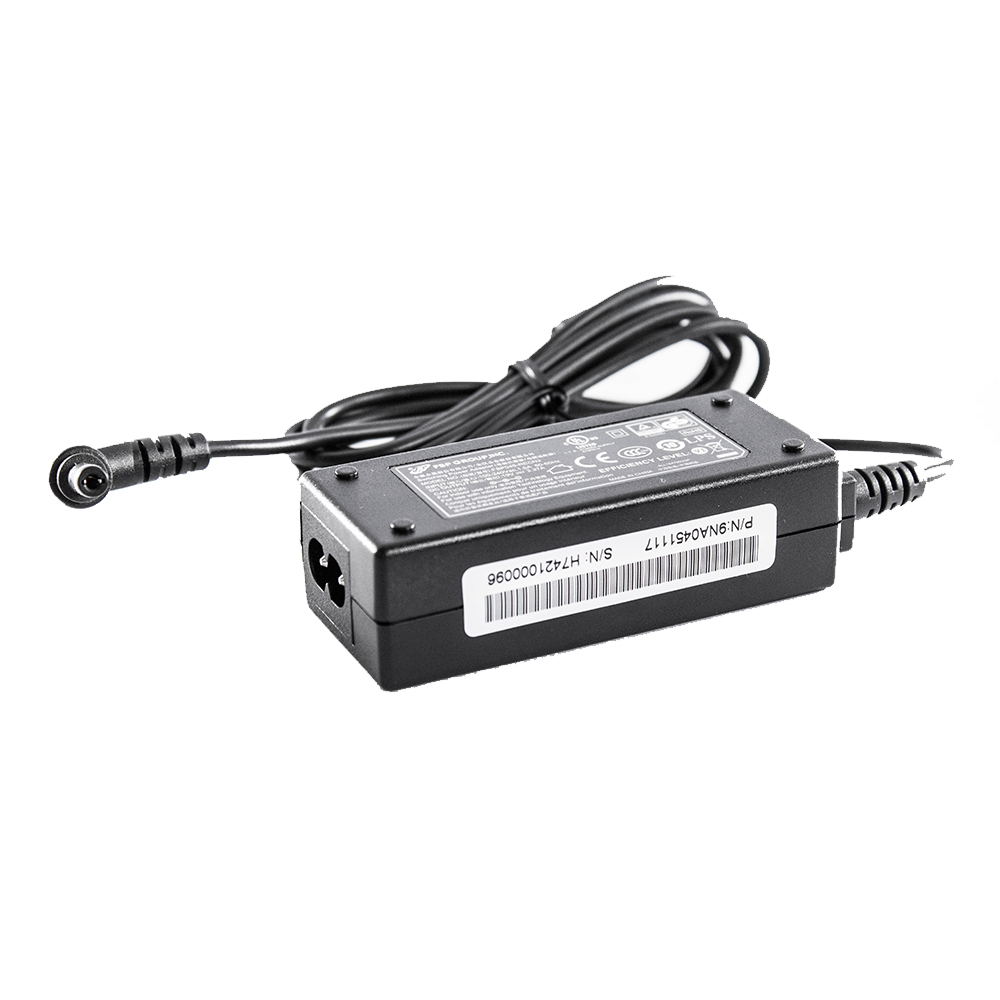

FSP045-RECN2 45W 19V 2.37A AC-DC Power Adapter for ITE & Notebooks

The FSP045-RECN2 is a reliable 45W external AC-DC power supply designed for notebooks, ITE equipment, and small electronic devices requiring a stable 19V DC input. This universal adapter operates over a wide input voltage range of 90Vac to 264Vac (47-63Hz) and delivers a regulated 19Vdc output at up to 2.37A, with a total output power of 45W. It meets Energy Star 2.0 Level V efficiency standards, achieving an average efficiency of ≥87.5% at 115Vac/230Vac (tested at 25%, 50%, 75%, and 100% load). The unit features comprehensive protections including over voltage protection (latch-off, 28.5V max), over current protection (auto-recovery, ≤5.0A), short circuit protection (auto-recovery), and over temperature protection (latch-off). With a compact footprint (89.8 x 37.8 x 27.5mm) and natural convection cooling, it is ideal for space-constrained applications. EMC compliance includes EN55022/CISPR22 Class B and FCC Part 15 Class B with 6dB margin, and it is certified to IEC60950 for safety.

Key Features

• Universal AC Input: Accepts 90-264Vac, 47-63Hz, with a maximum input current of 1.2A, enabling worldwide operation without voltage selection.
• Stable 19V DC Output: Provides 19Vdc at 2.37A (45W) with tight regulation, 10% overshoot limit, and supports a 2200µF system capacitive load for reliable startup.
• High Efficiency: Meets Energy Star 2.0 Level V requirements with average efficiency ≥87.5% (115Vac/230Vac) and low no-load power consumption ≤0.1W.
• Comprehensive Protection Suite: Features over voltage (latch-off, 28.5V max), over current (auto-recovery, ≤5.0A), short circuit (auto-recovery, ≤5W), and over temperature protection (latch-off) for enhanced system safety.
• Robust EMC Performance: Complies with EN55022/CISPR22 Class B and FCC Part 15 Class B (6dB margin), plus immunity to ESD (EN61000-4-2 Level 4), EFT (IEC 61000-4-4 Level 2), and surge (IEC 61000-4-5 Level 3).
• Compact & Durable Design: Measures 89.8 x 37.8 x 27.5mm, with natural convection cooling, 5000m operating altitude, and passes 1-meter drop test (6 faces) without functional damage.
• High Reliability: MTBF ≥100,000 hours at 25°C (90% confidence), 40°C burn-in, and meets strict dielectric withstand (3000Vac) and insulation resistance (≥20MΩ) requirements.
