Product Description

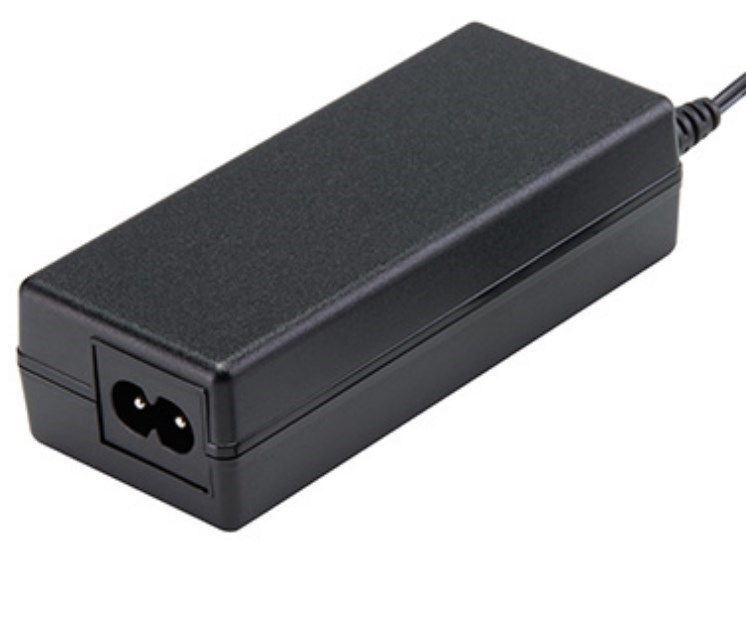

45 W Desktop AC-DC Adapter – FSP045-RBCN3
The FSP045-RBCN3 is a 45 W desktop AC-DC adapter designed for notebooks, embedded systems, peripherals, and general ITE applications. With universal input (90–264 VAC) and an IEC320-C8 socket, it provides a stable regulated 19 VDC / 2.37 A output. Its compact 108.3 × 46.3 × 30 mm housing makes it suitable for space-constrained setups.
The adapter complies with global safety standards (UL / cUL / CE / GS / TUV / FCC / CCC) and is RoHS / WEEE compliant. With DOE Level VI efficiency, it delivers reliable and energy-saving power for everyday operation.
Key Features
- Power Output: 45 W (19 V / 2.37 A)
- Input Range: 90–264 VAC (universal)
- Connector: IEC320-C8
- Dimensions: 108.3 × 46.3 × 30 mm
- Efficiency: DOE Level VI
- Certifications: UL, cUL, CE, GS, TUV, FCC, CCC
- Compliance: RoHS and WEEE
- Applications: Notebooks, embedded systems, peripherals, ITE
Specifications
| Parameter | Value |
|---|---|
| Cable Length | 1200mm |
| Connector | 3.5*1.35*10.5mm 90° |
| Dimensions (L*W*H)(mm) | 108*46*30mm |
| Efficiency | DoE Level VI |
| Input Voltage | 90-264Vac |
| Output Current | 2.36A |
| Output Power | 45W |
| Output Voltage | 19Vdc |
| Socket | C8 |
| Weight | 0.17kg |
Technical data sheets
Legislation and Compliance
