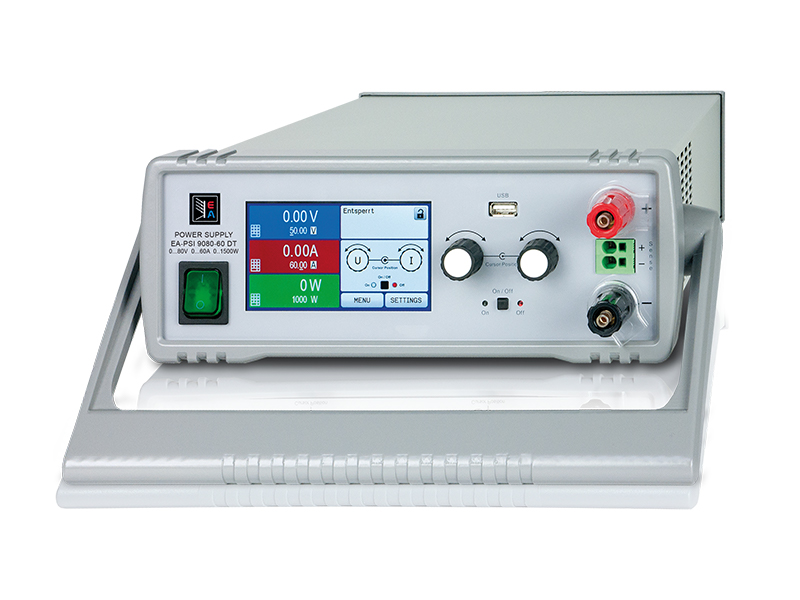

EA‑PSI 9080‑40 DT | 80V 40A 1000W Auto-Ranging Programmable Desktop DC Power Supply

EA‑PSI 9080‑40 DT belongs to EA‑PSI 9000 DT series from EA Elektro-Automatik, distributed by TPS. It serves as alternative to ametek bench power supply for 24V DC source verification, lab development and industrial product testing.

Specifications: 0~80V, 0~40A continuously adjustable, rated 1000W output, max efficiency up to 92%, low ripple 10mV PP/1.5mV RMS. Active PFC enables 90~264V universal AC input, equipped auto-ranging circuit and built-in multi-function generator.

Key Features

• EA‑PSI 9080‑40 DT, 80V 40A 1000W desktop programmable DC power supply, PN:06200506
• Dimension 308×103×415mm, approx.8.2kg with adjustable tilt stand
• Active PFC design, CV/CC/CP/CR four operation modes with resistance simulation
• Integrated waveform generator for sine, triangle, arbitrary and ramp signals
• Full OVP/OCP/OPP/OTP protection & front remote sensing to eliminate cable voltage drop
• Galvanic isolated analog, USB-A/USB-B and Ethernet communication interfaces
• Compatible with SCPI/ModBus RTU, EA Power Control and LabView drivers
• Front USB port for saving/loading test profiles and arbitrary sequences
