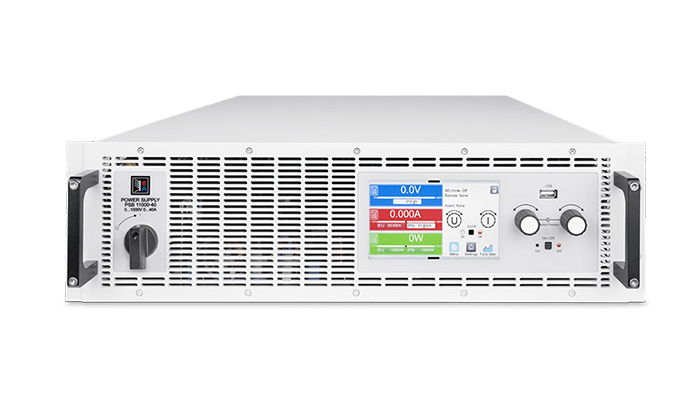

EA-PSI 10060-510 3U 15000W Programmable DC Power Supply

The EA-PSI 10060-510 3U is a high-performance programmable DC power supply from the EA Elektro-Automatik PSI 10000 Series, delivering 0-60V output voltage, 0-510A output current, and 15000W output power in a compact 3U form factor. This bench power supply is ideal for demanding applications such as battery test equipment, battery charger testing, and computer power supply testing. With ultra-low ripple of ≤10mV RMS (≤100mV P-P) and high efficiency up to 94.5%, it ensures clean and stable power for sensitive loads. The unit features a built-in function generator capable of producing sine, triangle, rectangle, trapezoid, and arbitrary waveforms, as well as specialized curves for EN 50530 PV simulation and DIN 40839 automotive tests. Its XY table generator and sequence programming capabilities allow users to simulate real-world conditions and generate complex test sequences, eliminating the need for additional equipment and reducing test setup time. The power supply includes standard USB, Ethernet, and a galvanically isolated analog interface, plus a slot for optional digital interfaces (CAN, CANopen, RS232, Profibus, Profinet, EtherCAT). Remote sensing compensates for voltage drops, and master-slave parallel operation enables scalability up to 64 units. Comprehensive protections (OVP, OCP, OPP, OT) safeguard both the device and the load. With 3U rack-mount design, forced-air cooling, and an intuitive color touchscreen HMI, the EA-PSI 10060-510 3U is a versatile and reliable programmable DC power supply for laboratory and industrial use.

Key Features

• High Power Density: 0-60V, 0-510A, 15000W output in a 3U chassis with 94.5% efficiency.
• Ultra-Low Ripple: ≤10mV RMS / ≤100mV P-P ripple for clean DC output, ideal for sensitive electronics.
• Built-in Function Generator: Generate sine, triangle, rectangle, trapezoid, arbitrary waveforms, plus EN 50530 PV and DIN 40839 curves for real-world simulation.
• Flexible Programmability: Standard USB, Ethernet, and isolated analog interface; optional CAN, CANopen, RS232, Profibus, Profinet, EtherCAT modules.
• Master-Slave Parallel Operation: Connect up to 64 units for higher current and power with automatic current sharing.
• Comprehensive Protections: Adjustable OVP, OCP, OPP, and overtemperature protection ensure safe operation.
• Intuitive Touchscreen HMI: 5" color capacitive touch display with rotary knobs for easy manual control and monitoring.
