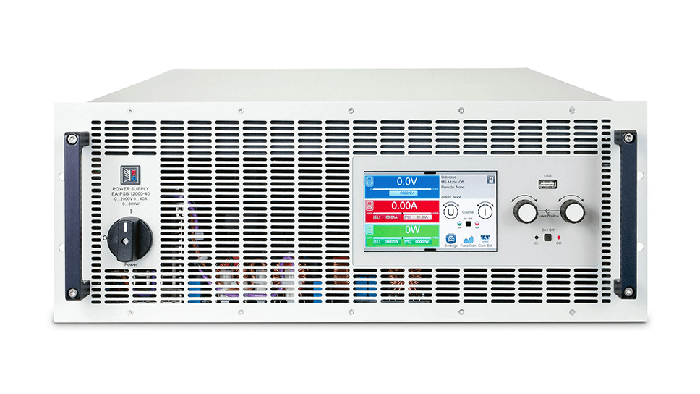

EA-PSBE 10080-1000 4U 30 kW Programmable Bidirectional DC Power Supply

The EA-PSBE 10080-1000 4U is a high-performance, programmable bidirectional DC power supply and electronic load within the EA-PSBE 10000 series, delivering up to 30 kW of flexible power. It functions as a true two-quadrant device, operating as both a precise DC source and a regenerative sink, feeding recovered energy back into the grid with efficiency up to 95.5%. It features an autoranging output stage providing a wide operating range of 0-80 V and 0-1000 A. With a 3-phase AC input range of 208-480 V (±10%), active power factor correction (typical 0.99), and advanced digital regulation (CV, CC, CP, CR modes), it is engineered for demanding laboratory and industrial applications such as battery simulation, fuel cell testing, on-board charger evaluation, and battery recycling.

Key Features

• Bidirectional & Regenerative: Acts as both a power source and an electronic load, recovering energy to the grid with up to 95.5% efficiency in sink mode.
• High Power & Current: Delivers up to 30 kW, 80 V, and 1000 A from a single 4U unit, with parallel operation for systems up to 1920 kW.
• Autoranging Flexibility: Wide output range (0-80V, 0-1000A) within a constant power envelope for versatile testing scenarios.
• Precise Regulation & Control: Digital regulation with 16-bit ADCs/DACs, selectable voltage regulation speed (Normal, Fast, Slow), and multiple modes (CV, CC, CP, CR).
• Robust Connectivity: Built-in USB, Ethernet, and isolated analog interface (DB15). Optional industrial interfaces include CAN, CANopen, Modbus, Profibus, EtherCAT, Profinet.
• System Scalability: Equipped with Master-Slave and Share buses for parallel operation of up to 64 units, behaving as a single system.
• Comprehensive Protection: Adjustable OVP, OCP, OPP, and overtemperature protection for safe operation.
• User-Friendly Operation: Features a 5" color TFT touchscreen display and support for SCPI, ModBus, LabVIEW, and IVI drivers.
