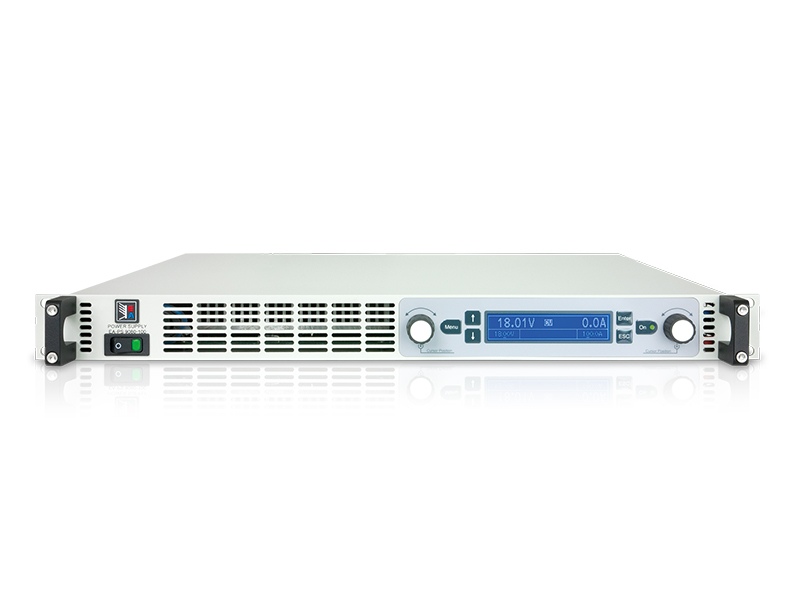

EA-PS 9200-25 1U 1500W Programmable DC Power Supply (Ordering Number: 06230401)

The EA-PS 9200-25 1U is a microprocessor-controlled unit from the EA-PS 9000 1U series, built for high-voltage scenarios like R&D, electronic testing, and industrial use. As a 1500W model, it offers 0-200V adjustable voltage and 0-25A variable current (manual/remote adjustment). Its 1U 19“ rack-mount design (19“x1Ux500mm) saves space; the control panel has rotary knobs, a blue LCD (shows values/status/alarms), and a panel lock to prevent unintentional misuse.

It delivers strong performance: efficiency up to 93% cuts energy loss, and active PFC (PF=0.99) works with 100...264V AC grids (45...65Hz), derating to 1000W at <150V AC. Voltage accuracy <0.1% (rated value), load regulation <0.05%; current accuracy <0.2%. Low ripple ensures stability—293 mV PP (HF)/51 mV RMS (LF) voltage ripple, 8 mA RMS current ripple. Its autoranging output adjusts voltage/current to stay within 1500W.

Galvanically isolated interfaces enable reliable control: analog (15-pole D-Sub, 0...5V/0...10V signals) and digital (USB + Ethernet, supports SCPI/ModBus RTU). It’s compatible with LabView VIs, includes "EA Power Control" software (Windows) for multi-unit management, and supports remote sensing + parallel operation. Safety features (OVP/OCP/OPP/OTP) shut off output on anomalies; temperature-controlled fans handle cooling. It meets EN 60950/EN 61326/EN 55022 Class B, operates at 0...50 °C (stores -20...70 °C), and weighs ~10.5 kg.

Key Features

• 1500W High-Voltage Output: 0-200V adjustable voltage & 0-25A current (Ordering Number: 06230401).
• 1U Rack-Mount: 19“x1Ux500mm size fits lab/industrial racks.
• High Efficiency & Active PFC: ≤93% efficiency, PF=0.99 for 100...264V AC grids.
• Autoranging Output: Adjusts voltage/current to stay within 1500W (derates to 1000W at <150V AC).
• Panel Lock & Blue LCD: Prevents misuse; LCD shows values/status/alarms.
• Isolated Interfaces: Galvanically isolated analog (15-pole D-Sub) & digital (USB/Ethernet) interfaces.
• High Precision & Low Ripple: Voltage accuracy <0.1%, ripple ≤293 mV PP/51 mV RMS; current ripple ≤8 mA RMS.
• SCPI/LabView Compatible: Supports SCPI/ModBus RTU; works with LabView VIs, includes "EA Power Control".
• Comprehensive Protection: OVP, OCP, OPP, OTP for safe operation.
• Temperature-Controlled Cooling: Fans adjust speed to maintain optimal temps.
