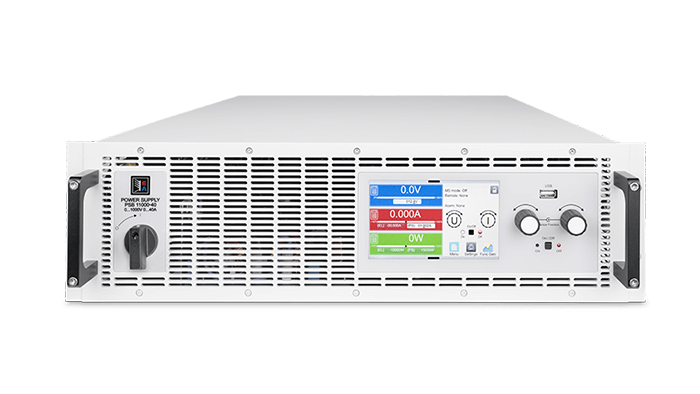

EA-PS 10500-60 3U Programmable DC Power Supply – 500V / 60A / 10000W

The EA-PS 10500-60 3U is a high-performance programmable DC power supply from the EA Elektro Automatik PS 10000 Series, delivering 0-500V output voltage, 0-60A output current, and up to 10000W output power in a compact 3U form factor. Featuring advanced autoranging technology, it maintains full power over a wide operating range, making it ideal for battery test equipment, battery charger test, fuel cell test systems, on-board charger test, and automated test systems. With an efficiency of up to 95.5%, this industrial and laboratory power supply reduces energy costs and minimizes heat generation. It incorporates comprehensive protections—overvoltage, overcurrent, overpower, and overtemperature—to protect sensitive loads from damage. The unit offers low ripple (≤70mV rms, ≤350mV pp), adjustable internal resistance (0.3-500Ω) for simulating real-world conditions, and supports master-slave parallel operation and share bus parallel operation for scalable power systems. Built-in USB, Ethernet, and galvanically isolated analog interfaces enable seamless integration into automated test systems. The EA-PS 10500-60 3U is the ideal programmable DC power source for testing power supplies, batteries, and chargers, ensuring reliable and precise performance.

Key Features

• High Power Density: 500V / 60A / 10000W output in a 3U rack-mount chassis, ideal for bench power supply and industrial applications.
• Autoranging Technology: Delivers maximum power across a wide voltage and current range, optimizing test flexibility.
• High Efficiency: Up to 95.5% efficiency reduces energy costs and heat generation, suitable for 24/7 operation.
• Comprehensive Protection: Adjustable OVP, OCP, OPP, and OT protection prevent overvoltage and overcurrent damage to sensitive loads.
• Master-Slave & Share Bus Parallel Operation: Scale up to 64 units for higher power with true parallel operation and current sharing.
• Low Ripple & Noise: ≤70mV rms / ≤350mV pp ripple ensures clean power for precision testing.
• Built-in Interfaces: USB, Ethernet, and analog interface for remote control and monitoring, supporting SCPI and ModBus protocols.
• Wide Application Range: Perfect for battery test, charger test, fuel cell test, on-board charger test, automated test systems, and laboratory use.
