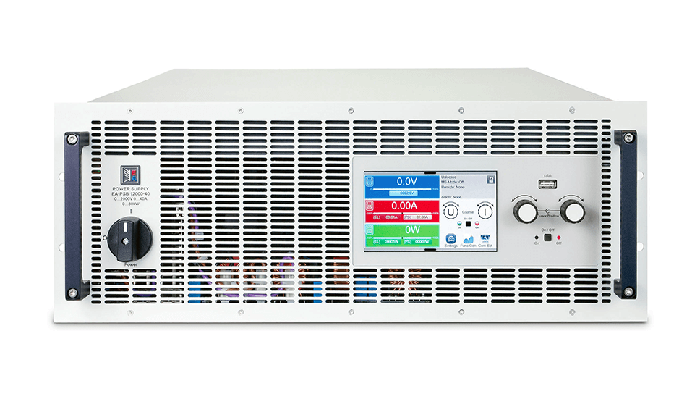

EA-PS 10060-1000 4U 30kW Programmable DC Power Supply

The EA-PS 10060-1000 4U is a high-performance, programmable DC power supply delivering 30kW of power with an output of 0-60V and 0-1000A, designed for demanding industrial test and battery charging applications. Part of the robust PS 10000 4U Series, it functions as a precise bench and system power source or sink, offering exceptional flexibility and control. It features a 5-inch color TFT touchscreen interface, dual rotary knobs with push-button functionality, and comprehensive remote control capabilities via standard USB, Ethernet, and an isolated analog interface, with options for CAN, Profibus, ProfiNet, ModBus TCP, EtherCAT, and more through plug-in modules. The unit supports master-slave parallel operation for up to 64 units (totaling 1920kW) with automatic current sharing via the Share bus and digital Master-Slave bus. Advanced operating modes include voltage regulation (CV), current regulation/limiting (CC), power regulation/limiting (CP), and internal resistance simulation (CR). Built-in protection features such as adjustable Overvoltage (OVP), Overcurrent (OCP), Overpower (OPP), and Overtemperature (OT) protection, along with Power Fail (PF) detection and Safety OVP (on 60V models), ensure safe operation for both the device and connected loads. Additional features include data logging to USB, SEMI F47 sag immunity compliance, series connection capability, and an optional water-cooling (WC) version for reduced acoustic noise and improved thermal management in cabinet systems.

Key Features

• High Power & Programmability: Delivers 30kW (18kW at 208V AC) as a programmable DC power supply and electronic load with 0-60V, 0-1000A output, ideal for bench-top and system integration.
• Comprehensive Control & Interfaces: Features a color touchscreen HMI, dual control knobs, and remote control via USB, Ethernet, analog interface, and optional digital comms modules (CAN, Profibus, EtherCAT, etc.).
• Scalable Parallel Operation: Supports master-slave configuration for up to 64 units via Share bus and digital MS bus, enabling systems up to 1920kW with automatic current balancing.
• Advanced Operating Modes: Offers constant voltage (CV), constant current (CC), constant power (CP), and internal resistance regulation (CR) for versatile testing scenarios.
• Robust Protection & Safety: Includes fully adjustable OVP, OCP, OPP, OT, PF, and Safety OVP (60V model) protections, with DC output isolation and comprehensive safety warnings.
• Industrial Durability & Options: Built for 19" rack installation, with water-cooling option available. Features data logging, SEMI F47 compliance, and meets stringent industrial standards.
