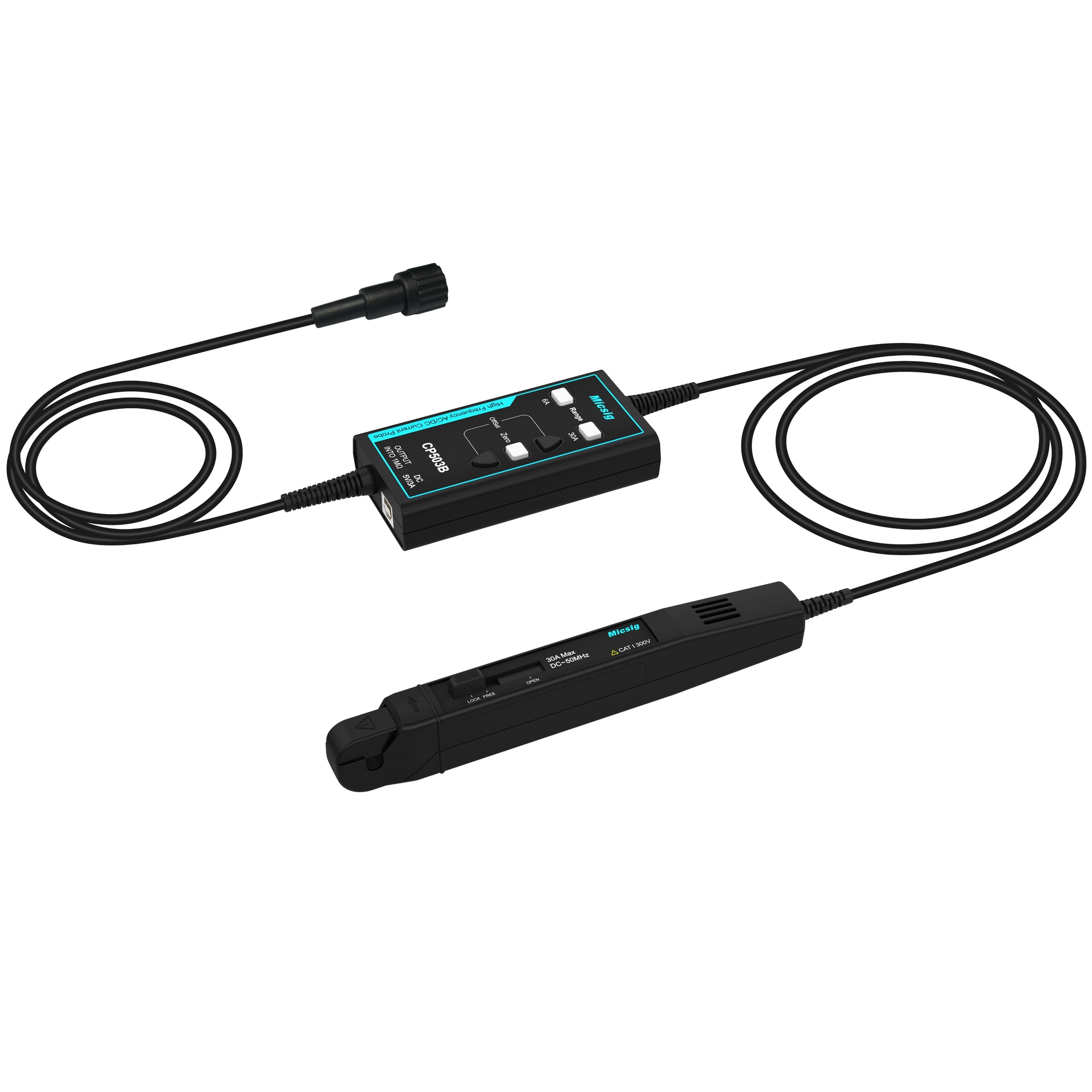

Micsig CP503B High Frequency AC/DC Current Probe
The Micsig CP503B is a high-performance high frequency AC DC current probe designed for precise current signal analysis across a wide range of applications. As part of the Micsig precision current probe lineup, this 50MHz current probe delivers exceptional accuracy with a DC~50MHz bandwidth, making it ideal for high frequency current signal measurement probe tasks. It features dual current ranges of 6A (20mA~6Apk) and 30A (50mA~30Apk), qualifying it as a 6A 30A current probe and CP503B 6A 30A range probe. With a typical DC accuracy of ±1%, it meets the requirements of the 1% accuracy current probe keyword, ensuring reliable measurements in critical applications.
Equipped with a standard BNC interface, the CP503B seamlessly connects to oscilloscopes, aligning with the BNC interface current probe standard. Its compact and portable design, combined with USB-powered operation (DC 5V 3A), positions it as a portable AC DC current probe suitable for fieldwork and lab environments. The probe includes advanced features like auto-degaussing, one-touch zero calibration, and overload protection with a flashing indicator, enhancing usability and safety. Rated for CAT I 300V safety compliance, it ensures secure operation in various electrical environments.
Key Features
- Wide Bandwidth: As a 50MHz current probe, it covers DC~50MHz, enabling accurate measurements of high-frequency signals up to 20MHz and beyond, perfect for high frequency current signal measurement probe applications.
- Dual-Range Measurement: Supports 6A (20mA~6Apk) and 30A (50mA~30Apk) ranges, making it a versatile 6A 30A current probe for both low and high-current scenarios.
- 1% Accuracy: Achieves typical DC accuracy of ±1% (±10mA at 6A; ±50mA at 30A), fulfilling the 1% accuracy current probe requirement for precision-driven tasks.
- Standard BNC Interface: Ensures compatibility with all oscilloscopes, adhering to the BNC interface current probe standard for hassle-free connectivity.
- Portable Design: Lightweight and compact, this portable AC DC current probe is easy to handle and transport, ideal for on-the-go measurements.
- Advanced Functions: Includes auto-degaussing, one-touch zero calibration, and overload protection with a flashing indicator to prevent damage and ensure reliable results.
- Safety Compliance: Rated for CAT I 300V, ensuring safe operation in environments with high voltage requirements.
- Applications: Widely used in motor drivers, inverters, switching power supplies, avionics, and semiconductor device testing, aligning with the high frequency AC DC current probe and Micsig precision current probe keywords.
Specifications
Parameter | Value |
---|---|
Bandwidth | DC-50MHz |
Output sensitivity | 1V/10A (30A), 1V/2A(6A) |
Power supply | DC 5V 3A |
Ranges | 6A(2X)/30A(10X) |
Rise Time | ≤7ns |
