Product Description

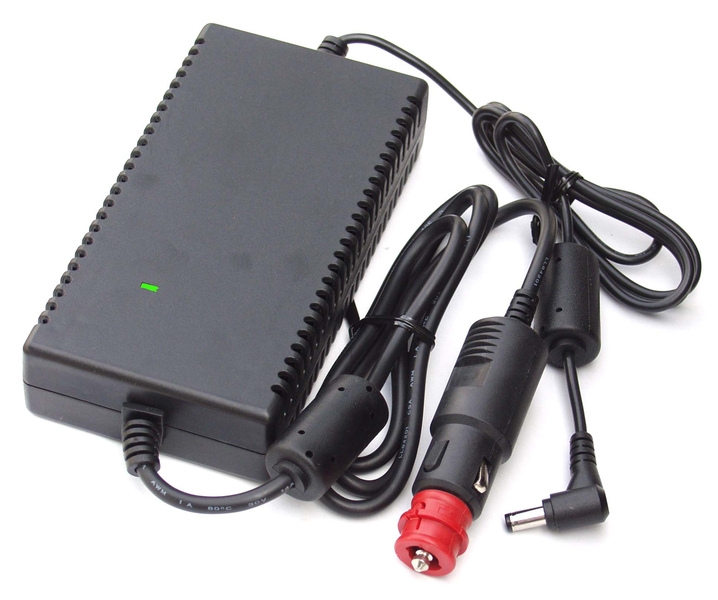

120 W Vehicle DC-DC Adapter - CAR120-19-MULTIPLUG
The CAR120-19-MULTIPLUG is a robust 120 W automotive DC-DC adapter engineered to power laptops and mobile workstations directly from a 9–32 V DC source (car, truck, or marine). It delivers a stable regulated 19 V output with low ripple/noise and high conversion efficiency. Built for reliability on the move, it integrates protective features including over-voltage, short-circuit, and over-power protection, plus durable cabling for daily use.
Its compact enclosure, generous cable length, and universal multiplug tip make it easy to deploy across devices. Designed for harsh environments, it supports a wide operating temperature range and complies with essential safety and EMC requirements.
Key Features
- Wide DC Input: 9–32 V DC for cars/trucks/boats.
- Regulated Power: 19 V DC up to 120 W for laptop-class loads.
- High Efficiency: Optimized conversion for cool, quiet operation.
- Protection: OVP, SCP, OPP for safe charging.
- Mobile-Ready: Compact body with long output cable and multiplug tip set.
- Compliance: CE, RoHS, and relevant automotive EMC.
Specifications
| Parameter | Value |
|---|---|
| Cable Length | 1000mm |
| Connector | Multiplug TPS |
| Dimensions (L*W*H)(mm) | 120*75*30mm |
| Efficiency | 90% |
| Input Voltage | 9-32Vdc |
| Output Current | 6.31A |
| Output Power | 120W |
| Output Voltage | 19Vdc |
| Weight | 0.5kg |
Technical data sheets
Legislation and Compliance
-
RoHS.pdf
-
CE
-
UL
-
WEEE
-
UKCA
