ATM 090T-A190
Article Number:
DA1137
Manufacturer Code:
ATM 090T
Accessories for Product
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Product Description

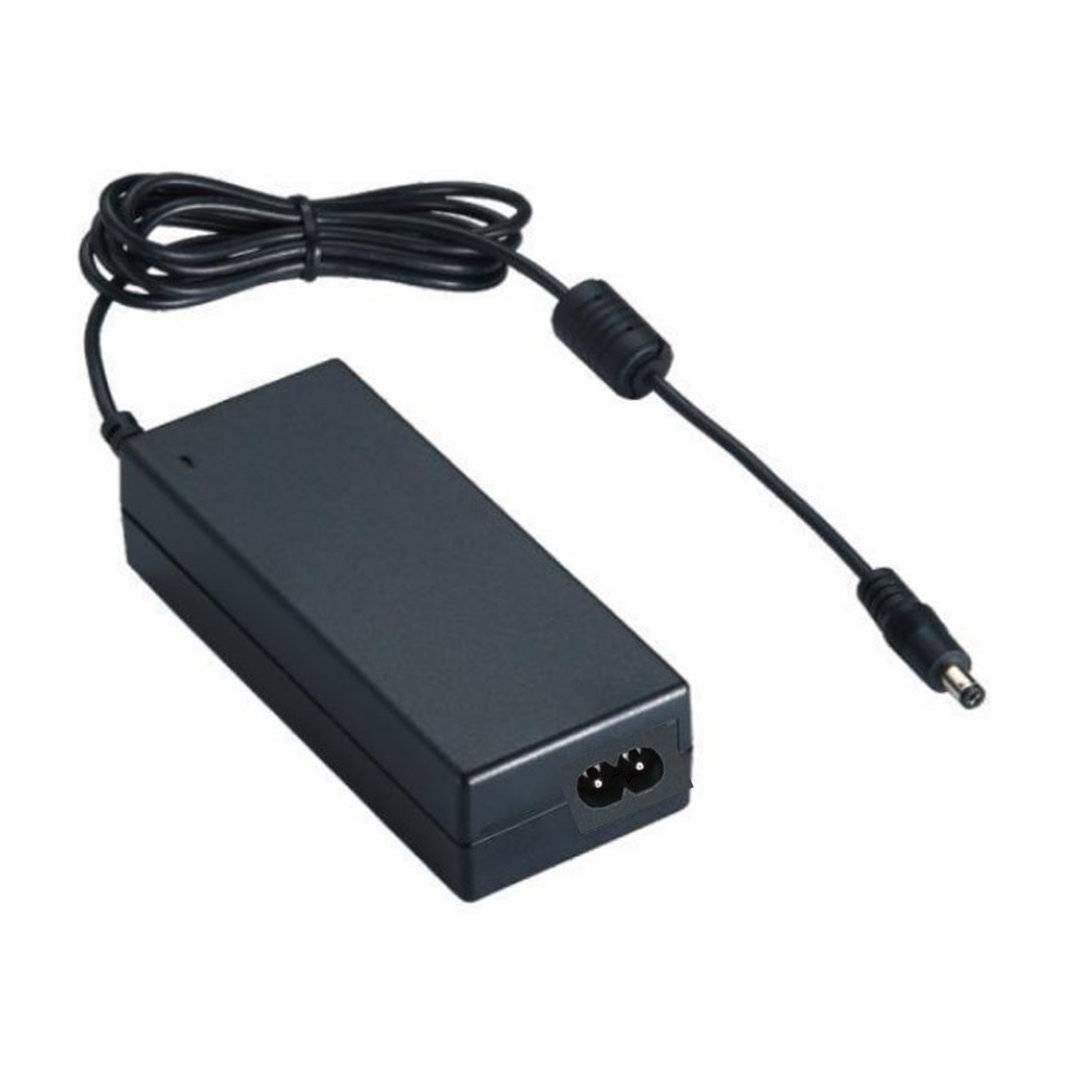

90 W Desktop AC-DC Adapter - ATM-090T-A190
The ATM-090T-A190 is a compact 90 W desktop adapter offering 19 V DC regulated output for notebooks and embedded systems. It supports 90–264 VAC input and features full safety protections. Each unit is burn-in and Hi-Pot tested for long-term reliability.
Key Features
- Power: 90 W (19 V DC).
- Input: 90–264 VAC.
- Protections: OVP, OCP, SCP.
- Reliability: Burn-in and Hi-Pot tested.
- Applications: Notebooks, embedded, consumer electronics.
Specifications
| Parameter | Value |
|---|---|
| Connector | 5.5*2.5*11mm 180° |
| Dimensions (L*W*H)(mm) | 155*64*35mm |
| Efficiency | DoE Level VI |
| Input Voltage | 100-240Vac |
| Output Current | 4.74A |
| Output Power | 90W |
| Output Voltage | 19Vdc |
| Socket | C8 |
Technical data sheets
Legislation and Compliance
-
RoHS.pdf
-
CE
-
UL
-
WEEE
-
UKCA
