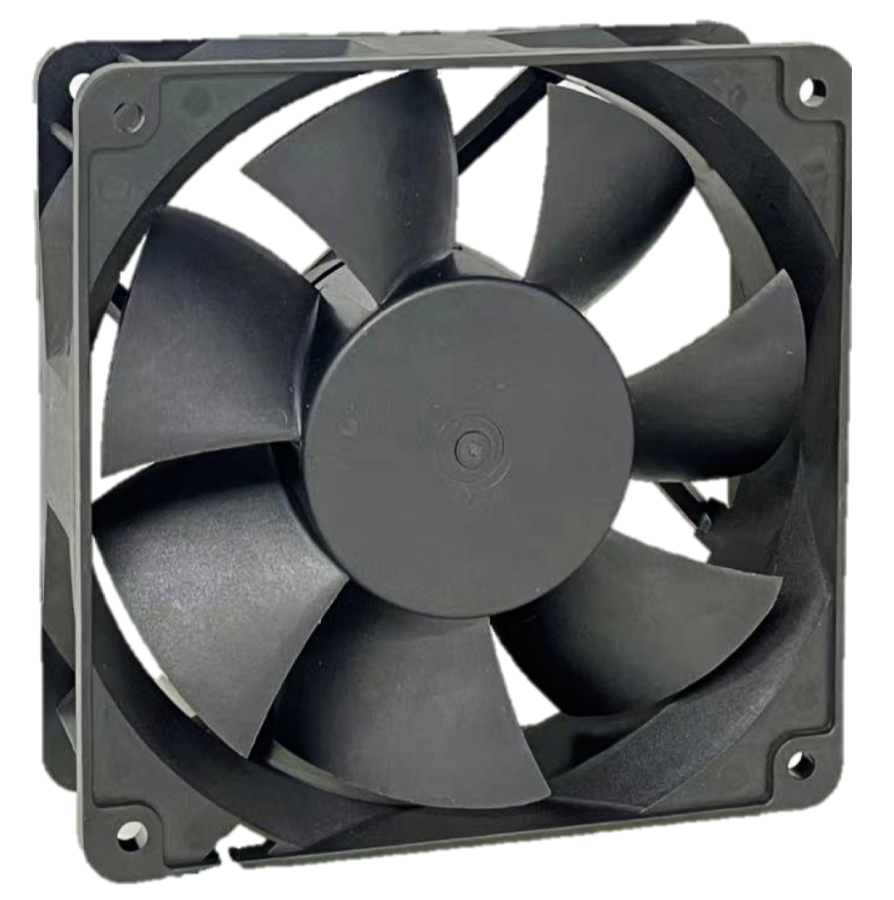

Axial fan DC 120x38mm 24V AGE12038B24U706-TBC
Article Number:
AGE12038B24U706-TBC
Manufacturer Code:
AGE12038B24x
Accessories for Product
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Product Description
Axial fan DC 120x38mm 24V AGE12038B24U706-TBC ensures stable airflow and efficient heat dissipation for power supplies, automation systems, and electronic enclosures. Engineered for durability, quiet performance, and energy efficiency.
- Voltage: 24V
- Dimensions: 120×38 mm
Specifications
| Parameter | Value |
|---|---|
| Type | DC axial fan |
| Dimensions (L*W*H)(mm) | 120×120×38mm |
| Rated Voltage | 24VDC |
| Operating Voltage Range | 14-26,4VDC |
| Rated Current | 0.45A |
| Power Consumption | 10.8W |
| Speed | 3200RPM |
| Air Flow | 135.9CFM |
| Static Pressure | 0.54 inch H2O |
| Noise Level | 51dB(A) |
| Bearing Type | Ball bearing |
| Cable | 4L 300mm |
