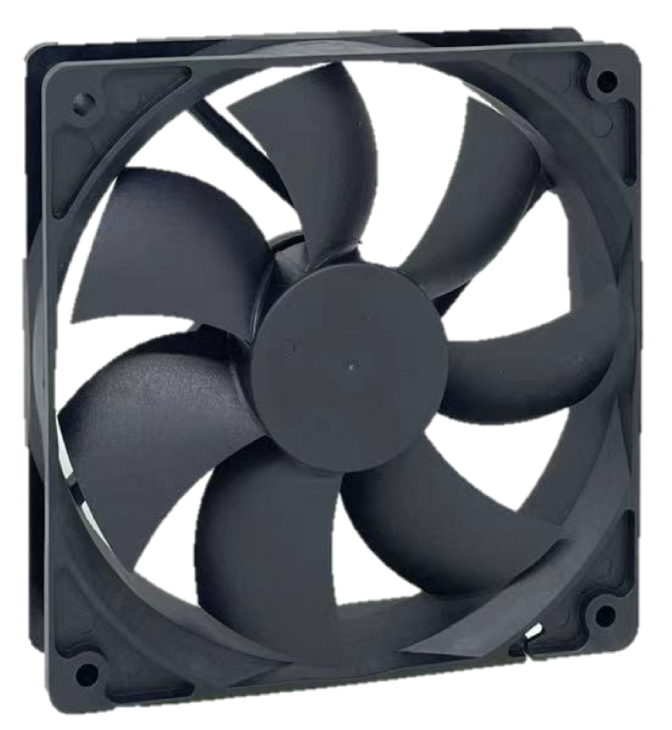

Axial fan DC 120x25mm 24V AGE12025B24H016-TBC
Article Number:
AGE12025B24H016-TBC
Manufacturer Code:
AGE12025B24x
Accessories for Product
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Product Description
Axial fan DC 120x25mm 24V AGE12025B24H016-TBC ensures stable airflow and efficient heat dissipation for power supplies, automation systems, and electronic enclosures. Engineered for durability, quiet performance, and energy efficiency.
- Voltage: 24V
- Dimensions: 120×25 mm
Specifications
| Parameter | Value |
|---|---|
| Type | DC axial fan |
| Dimensions (L*W*H)(mm) | 120×120×25mm |
| Rated Voltage | 24VDC |
| Operating Voltage Range | 14-26,4VDC |
| Rated Current | 0.23A |
| Power Consumption | 5.52W |
| Speed | 2800RPM |
| Air Flow | 95.7CFM |
| Static Pressure | 0.25 inch H2O |
| Noise Level | 39dB(A) |
| Bearing Type | Ball bearing |
| Cable | 4L 300mm |
