Product Description

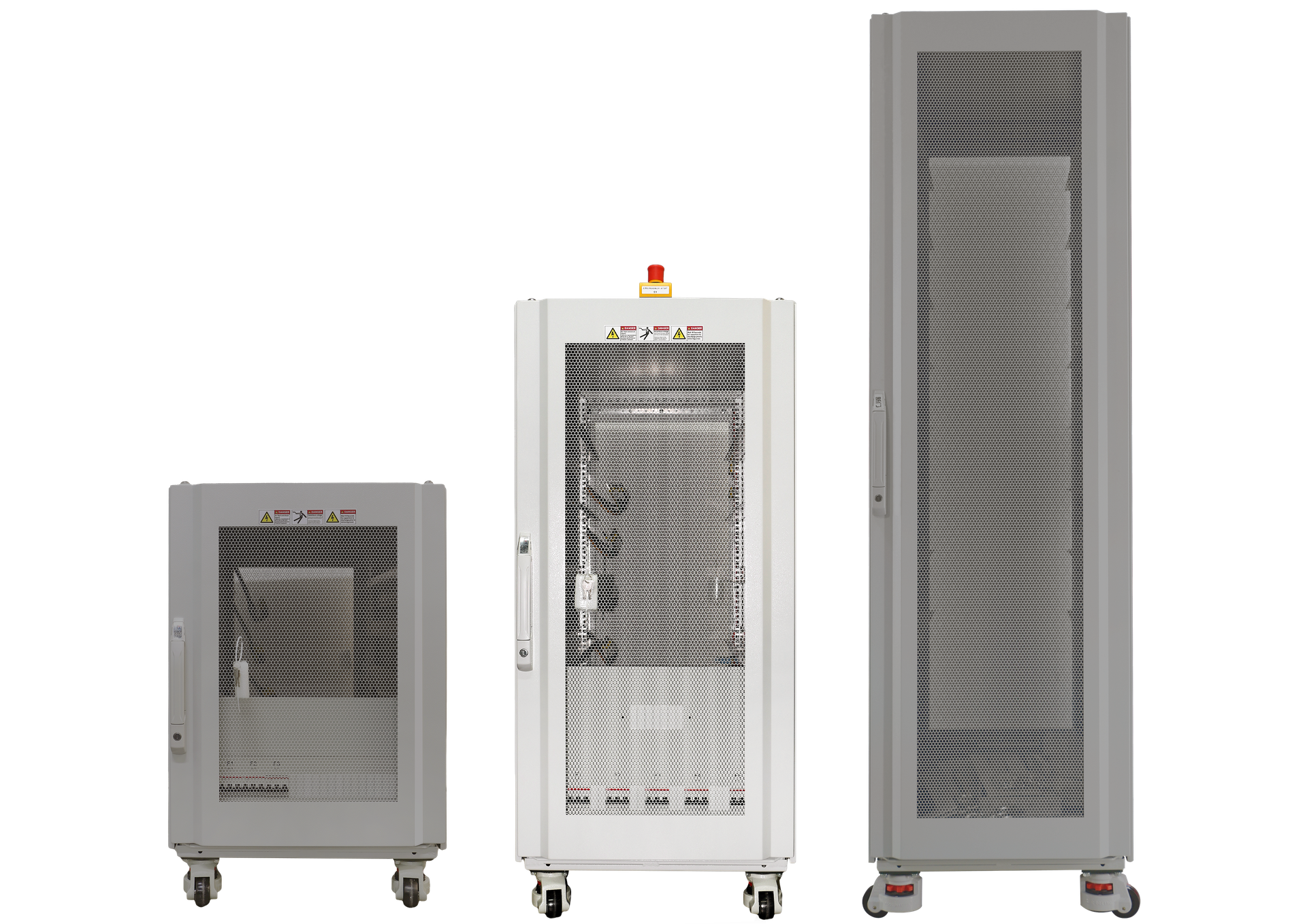

24U 19 Inch Industrial Cabinet - Heavy-Duty Server Rack
The TPS 24U 19 inch Industrial Cabinet delivers robust protection for critical server and network equipment in demanding environments. This free-standing 19" rack combines enterprise-standard design with heavy-duty construction, making it ideal as an industrial data cabinet or control enclosure. It is customizable with options including castors (4x GD-80), emergency stop, power supply, and output copper bars* (custom electrical parts require consultation), ensuring secure equipment housing with reinforced door locks and modular flexibility across three configurations: the 3U/4U Mixed version with 6x3U or 4x4U brackets per side, featuring an E-stop switch (M32-PV) and 2 Siemens door contacts; the 3U Chassis Version with 6x3U brackets per side, equipped with 6 ABB S203M-K32 breakers and 1x3V/V AC terminal; and the 4U Chassis Version with 4x4U brackets per side, including 4 ABB S203-K32 breakers and 1x3V/V AC terminal. The 3U/4U Mixed and 3U Chassis versions include a grounded copper plate, while the 4U Chassis Version does not. Net weights are 140 kg (3U/4U Mixed), 145 kg (3U Chassis), and 147 kg (4U Chassis), with corresponding gross weights of 160 kg, 160 kg, and 165 kg. It includes TS007 lock rod fasteners (4x M6x12 screws) and TS008 side connectors, complies with international standards (CE, UL, VDE, CCC, SAA), and is packaged in a wooden box; for detailed assembly instructions (e.g., hinge/panel installation), refer to the provided manual.
Core Features
- Rugged Industrial Build: Constructed from powder-coated sheet steel (RAL 7035) with square pipe-reinforced doors and 150° hinges, creating a durable 19 inch enclosure cabinet resistant to industrial wear.
- Secure Access Control: Front and rear doors feature lock rods (TS007 fasteners) for a reliable 19 inch cabinet with door lock system. Opening angle can be fixed via stoppers.
- Optimized Equipment Mounting: 482.6mm (19") width with front/rear positioning, 512.5mm frame spacing, and configurable brackets (6x3U or 4x4U per side) for versatile industrial server cabinet applications.
- Mobility & Stability: Optional height-adjustable casters with Fuma bearings (4x GD-80) transform it into an industrial cabinet with castors, while the open base design ensures free-standing stability.
- Complete Package: Includes enclosure frame, doors, side/top/bottom panels, grounding copper bar (4.0mm), cable tray, mounting bars, and fasteners. Optional electrical components (e.g., emergency stop, terminals) available.
Specifications
