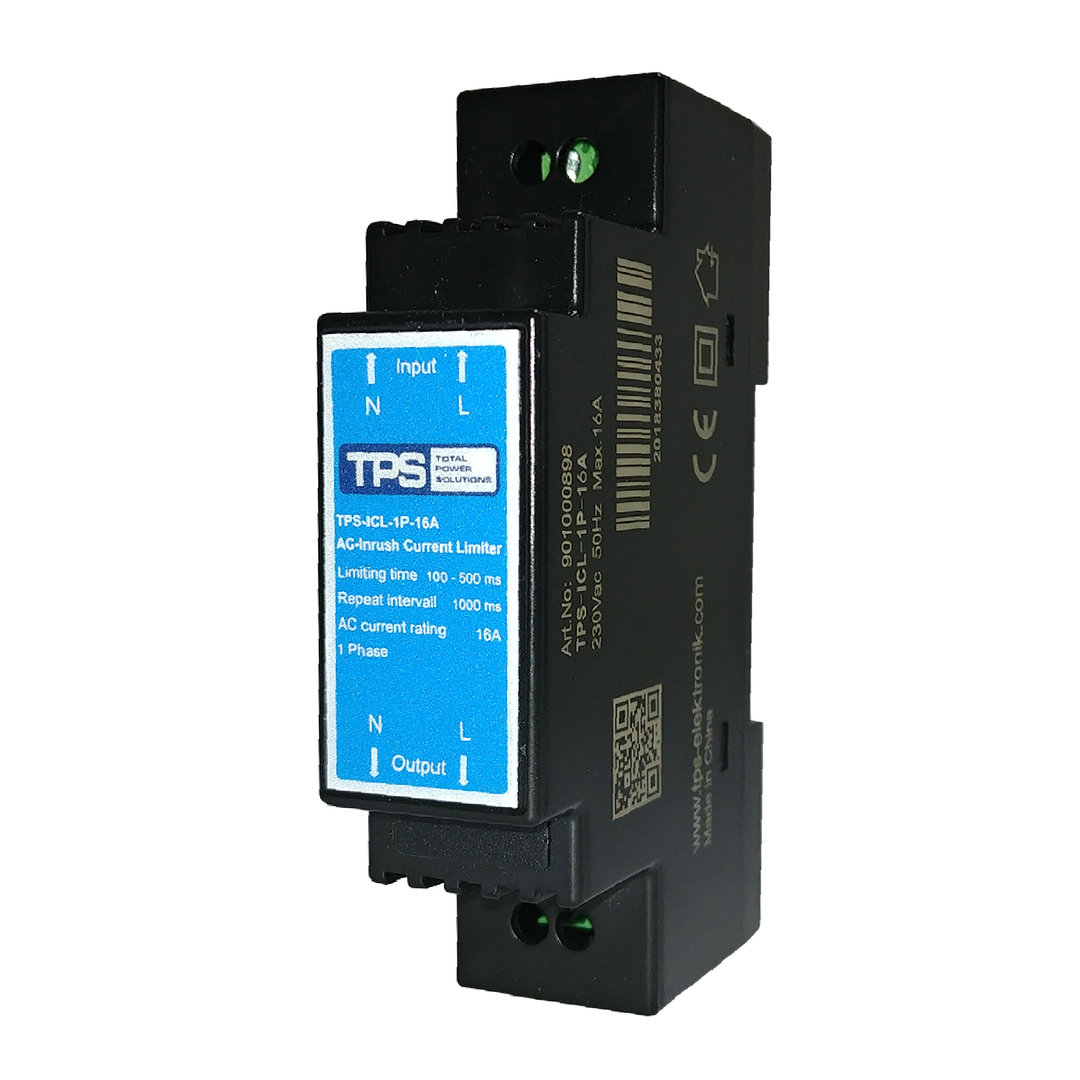

TPS-ICL-1P-16A-SLIM 16A Slim AC-Inrush Current Limiter

The TPS-ICL-1P-16A-SLIM is a high-performance DIN-rail mounted inrush current limiter designed to protect inductive and capacitive loads from excessive starting currents. Unlike simple NTC solutions, it features an integrated bypass relay for reliable operation. This active inrush current limiter circuit limits peak current to 45A for 100-500ms, preventing unintended fuse release and enabling the use of smaller, faster circuit breakers. With a compact slim design, it is ideal for applications including switching mode power supplies (SPS), power factor correction (PFC), AC power side protection, diode bridge protection, and handling large rectifier currents. The device supports 16-12 AWG (1.3-3.3mm) wiring, operates at 230VAC, and meets stringent safety standards including EN62368-1 and EN IEC 61000-3-2.

Key Features

• Integrated Bypass Relay: Provides a robust alternative to NTC thermistors, ensuring consistent performance.
• Peak Current Limitation: Limits inrush current to 45A for 100-500ms, protecting fuses and circuit breakers.
• Slim DIN-Rail Design: Compact dimensions of 91x23x57.5mm (LxWxH) and weight of 175g for space-saving installation.
• Wide Input Range: Operates at 207-253VAC, 47-63Hz, with a repeat interval of 1000ms at 230VAC.
• Easy Wiring: Screw terminals accommodate 16-12 AWG wires (1.3-3.3mm), simplifying installation.
• Robust Construction: Case material PC-110(+) UL94V-0, operating temperature -40°C to 70°C, and IP20 protection.
• High Reliability: MTBF of 300,000 hours, suitable for harsh environments up to 2000m altitude.
