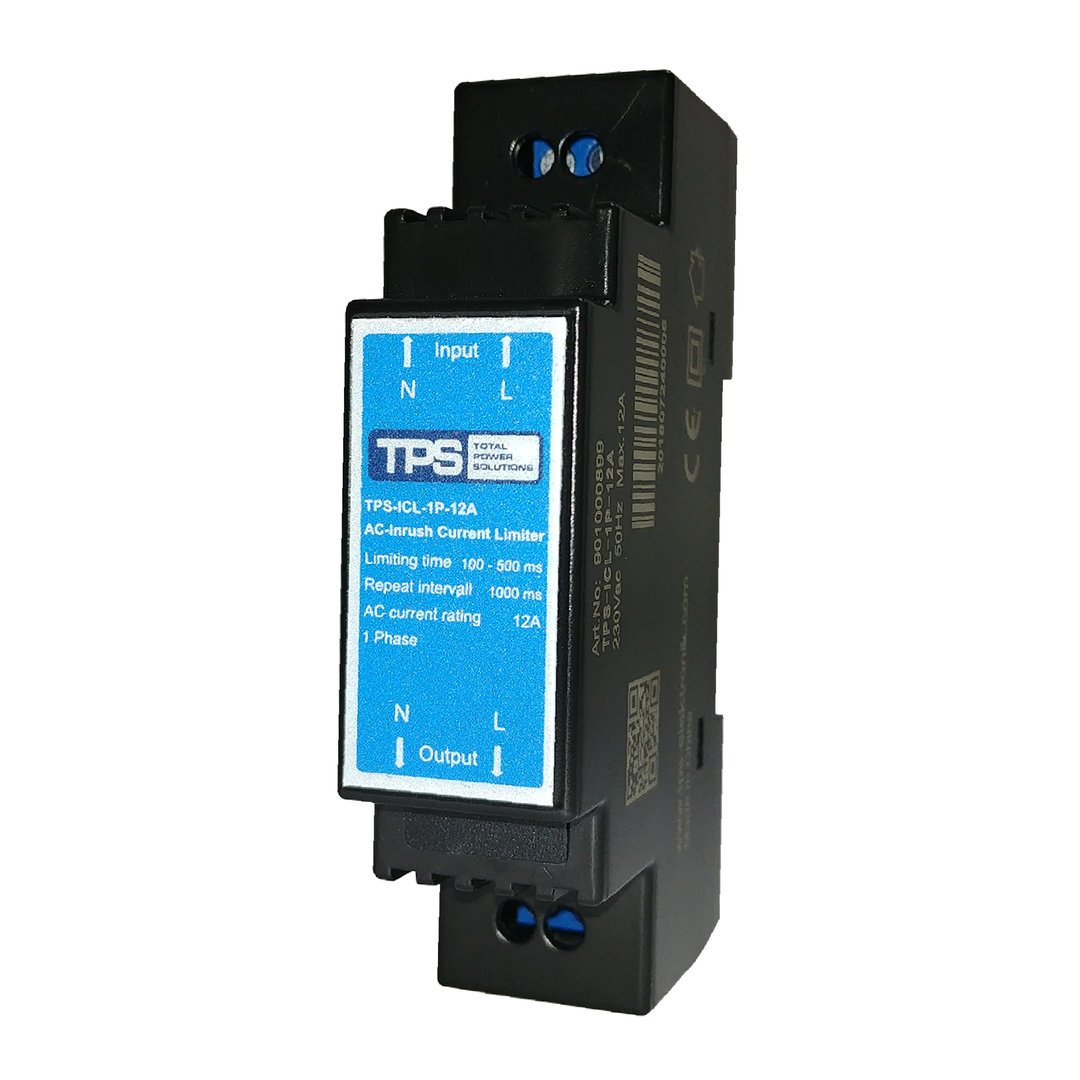

TPS-ICL-1P-12A-SLIM AC-Inrush Current Limiter

The TPS-ICL-1P-12A-SLIM is a DIN rail-mounted AC-inrush current limiter designed to protect inductive and capacitive loads from high starting currents. With an AC rated current of 12A and an input voltage of 230VAC, it effectively limits peak inrush current to 45A for 100-500ms, preventing unintended fuse release and enabling the use of smaller, faster circuit breakers. This device features an integrated bypass relay—not a simple NTC solution—for reliable performance after startup. It supports wire sizes of 16-12 AWG (1.3-3.3mm), operates in a temperature range of 40°C to 70°C with convection cooling, and complies with safety standards EN62368-1 and EN IEC 61000-3-2. With a compact design measuring 91x23x57.5mm (LxWxH), a light weight of 175g, and an MTBF of 300,000 hours, it is ideal for applications such as switching mode power supplies (SPS), power factor correction (PFC), AC power side protection, large rectifier currents, diode bridge protection, and initial equivalent series resistance (ESR).

Key Features

• Robust Inrush Current Limiting: Limits peak current to 45A for 100-500ms, safeguarding fuses and permitting smaller, faster circuit breakers.
• Integrated Bypass Relay: Ensures efficient operation post-startup, unlike basic NTC solutions.
• Slim and Lightweight Design: Compact 91x23x57.5mm dimensions and 175g weight for easy DIN rail integration in tight spaces.
• Broad Compatibility: Accepts 16-12 AWG (1.3-3.3mm) wires and operates at 207-253VAC, 47-63Hz.
• Durable and Reliable: MTBF of 300,000 hours, storage temperature from -40°C to 85°C, and IP20 rating for varied environments.
• Easy Installation: Mounts vertically on DIN rails TS 35/7.5 or TS 35/15 with screw terminals for straightforward setup.
