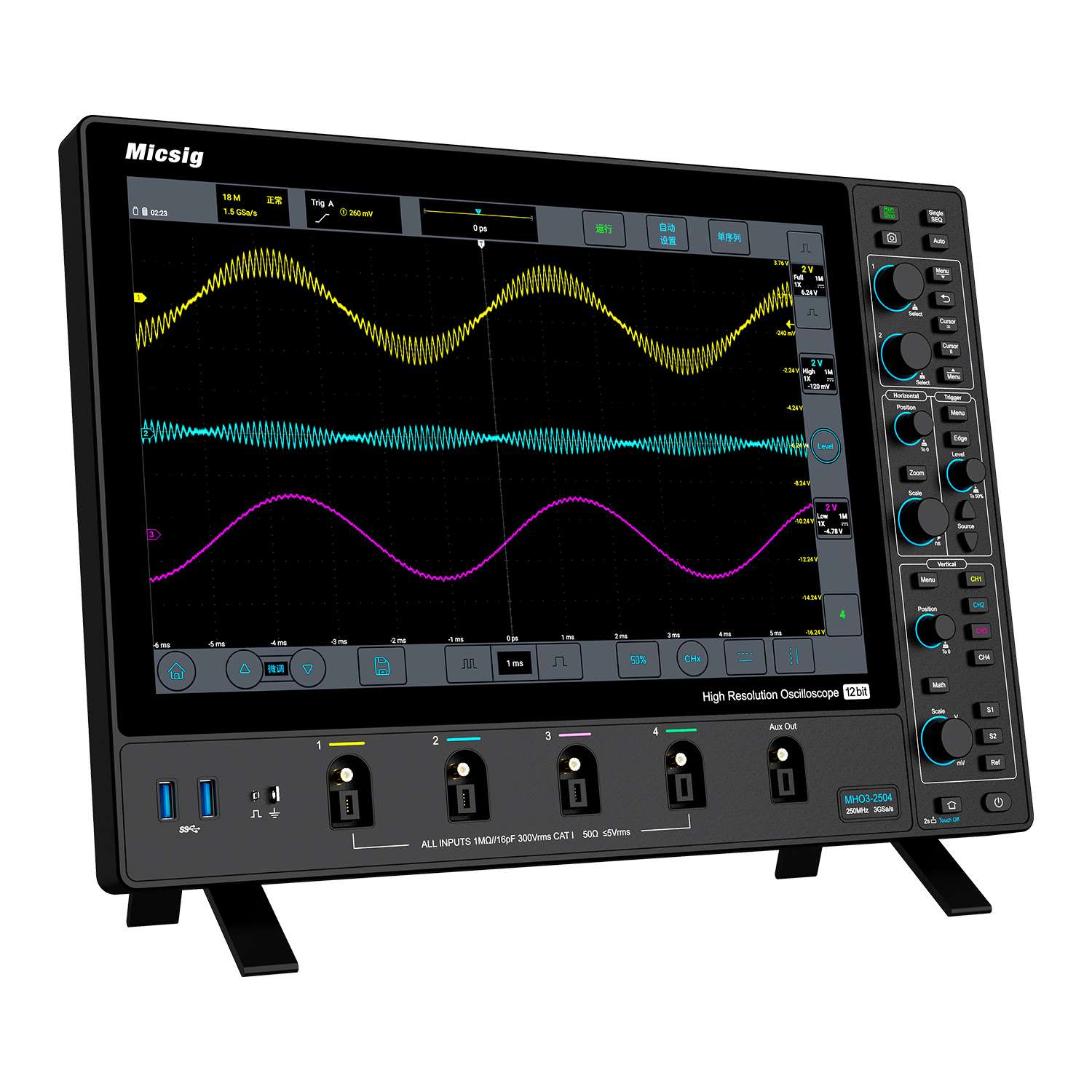

Oscillograph MHO3-3504 High Resolution Oscilloscope

The MHO3-3504 is a high-performance 4-channel oscilloscope from the MHO 3 Series, designed for engineers who demand precision and clarity in signal analysis. With a 12-bit vertical resolution (4096 quantization levels), it captures waveform details 16 times finer than traditional 8-bit oscilloscopes. It features a maximum bandwidth of 350MHz, a real-time sampling rate of 3GSa/s, and a deep memory of 360Mpts, ensuring high fidelity even when viewing long time-base signals on multiple channels simultaneously. The 14-inch anti-glare touchscreen with 1920x1200 resolution provides an intuitive, user-friendly interface that can be mastered in minutes. With a low noise floor of <80μVrms, advanced segmented storage, a high waveform capture rate of 230,000 wfms/s, and comprehensive remote control options (PC, smartphone app, SCPI), the MHO3-3504 is a versatile tool for debugging, testing, and analysis in various electronic applications.

Key Features

• High Resolution & Clarity: 12-bit vertical resolution for 16x more detail than standard 8-bit oscilloscopes.
• Powerful Performance: 350MHz bandwidth, 3GSa/s sampling rate, and 360Mpts memory depth for accurate signal capture.
• Low Noise Design: Noise floor <80μVrms ensures clear viewing of weak signals.
• Advanced Capture & Analysis: Segmented storage, 230,000 wfms/s capture rate, and built-in advanced math & FFT functions.
• User-Friendly Operation: 14" capacitive touch screen (1920x1200) with an intuitive UI for quick setup and use.
• Flexible Connectivity & Control: Supports PC remote control, mobile app, SCPI commands, HDMI output, and various interfaces (USB 3.0, USB-C, LAN).
• Comprehensive Decoding: Standard serial bus decoding including RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, and MIL-STD-1553B.
