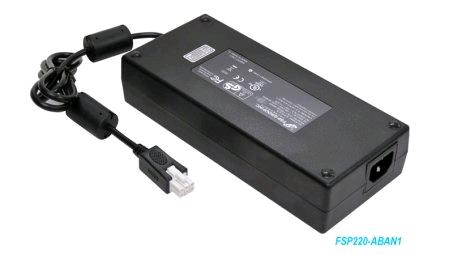

FSP220-ABAN1 220W AC-DC Power Adapter

The FSP220-ABAN1 is a high-performance AC-DC power adapter from FSP, designed to deliver reliable and efficient power conversion for a variety of applications. As a 220W universal power supply, it accepts a wide input voltage range of 90-264Vac (47-63Hz), making it suitable for global use. This adapter provides a stable 19V output (adjustable within ±5%) with a continuous current capacity of 0-11.57A, achieving high efficiency up to 89% at 240Vac load (warm-up 10 minutes). It features comprehensive protection mechanisms including short circuit, over-voltage (limit <26V), over-power, and over-temperature protection with auto-recovery, ensuring safe operation in office equipment, industrial small devices, and household appliances. The compact design measures 197x88x43mm and weighs approximately 1.02kg, with an IEC 320-C14 input connector. It meets international EMI standards (FCC Part 15J Class B, CISPR22/EN55022 Class B, VCCI Level II) and safety requirements such as CEC, with low leakage current ≤3.5mA and 1.5kV AC dielectric strength. The adapter operates in temperatures from 0 to 40°C and is built to withstand vibration tests, ensuring durability in various environments.

Key Features

• Wide Input Voltage Range: Accepts 90-264Vac (47-63Hz) for universal compatibility, with rated input 100-240Vac.
• High Efficiency: Delivers up to 87% efficiency at 100Vac and 89% at 240Vac (full load, warm-up 10 minutes), meeting power-saving requirements with ≤0.5W no-load consumption.
• Stable Output: Provides 19V ±5% DC output (0-11.57A) with low ripple and noise ≤380mVp-p, ensuring clean power for sensitive electronics.
• Comprehensive Protection: Includes short circuit, over-voltage (limit <26V), over-power, and over-temperature protection with auto-recovery for enhanced safety.
• Robust Environmental Performance: Complies with EFT (IEC61000-4-4, ±1kV), surge (IEC61000-4-5, ±1kV diff/±2kV common mode), and ESD (IEC61000-4-2, air ±15kV, contact ±8kV) standards; operates at 0-40°C and 20%-80% humidity.
• Compact and Lightweight: Measures 197x88x43mm and weighs about 1.02kg, with IEC 320-C14 input socket for easy integration.
• Global Compliance: Meets FCC Part 15J Class B, CISPR22/EN55022 Class B, VCCI Level II EMI standards, and CEC safety requirements; leakage current ≤3.5mA at 254Vac/50Hz.
