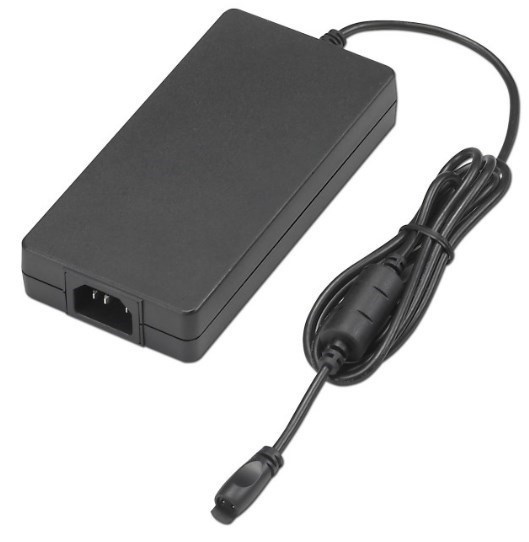

FSP150-AHAN3 150W AC-DC Power Adapter with 12V 12.5A Output

The FSP150-AHAN3 is a 150-watt AC-DC power adapter from FSP's FSP150-AxxN3 series, engineered for demanding industrial applications such as IPC systems, embedded systems, printers, monitors, POS terminals, and PoE devices. It accepts a universal AC input of 90‑264 VAC (47‑63 Hz) and delivers a stable 12V output at 12.5A, with total output power of 150W. The adapter meets global energy efficiency regulations including DOE Level VI and CoC Version 5 Tier 2, achieving ≥88% efficiency (DOE) and ≥89% efficiency (CoC). It incorporates active Power Factor Correction (PF ≥0.9 at full load), complies with EN61000‑3‑2 harmonic limits, and features comprehensive protection: Over Voltage, Over Current, Over Temperature, Short Circuit, and Brown‑out. Electrical specifications include ≤2A input current at full load, ≤0.15W no‑load power consumption, ≤0.25mA touch current (264Vac/50Hz), ≤3s turn‑on time, ≥10ms hold‑up time, 4242VDC isolation voltage (input to secondary), and 300,000 hours MTBF at 25°C (SR332). The unit operates at 0‑40°C with full load, derating to 85% at 50°C, 70% at 60°C, and 55% at 70°C; supports altitude up to 5000 meters; and meets EMC standards EN55032 Class B, FCC Part 15B, EN61000‑4‑2/3/4/5/6/8/11. This model (FSP150-AHAN3) features a C14 AC inlet, low‑profile mechanical design, and is safety certified to IEC 62368‑1 and CB 60950‑1.

Key Features

• High Efficiency & Energy Savings: Meets DOE Level VI and CoC V5 Tier 2 (≥88% / ≥89% efficiency); no‑load power consumption below 0.15W.
• Universal AC Input with Active PFC: Wide input range 90‑264 VAC, 47‑63 Hz; power factor ≥0.9; compliant with EN61000‑3‑2 harmonics.
• Comprehensive Protection: Built‑in OVP, OCP, OTP, SCP, and brown‑out protection for reliable operation in harsh environments.
• Rugged Reliability: 300,000 hours MTBF at 25°C, 4242VDC isolation, operating altitude up to 5000m, and wide temperature derating range.
• Global EMC & Safety Compliance: Certified to IEC 62368‑1 & CB 60950‑1; meets EN55032 Class B, FCC Part 15B, and EN61000‑4 immunity standards.
• Versatile Industrial Applications: Ideal for IPC, embedded systems, POS, printers, monitors, and PoE‑powered equipment needing 12V 150W.
• Low‑Profile C14 Inlet Design: Space‑saving footprint with C14 AC inlet (model FSP150-AHAN3) for easy system integration.
