FSP090-ABCN2 -Medion-
Article Number:
DA1081
Manufacturer Code:
9NA0907401
Manufacturer:
FSP Technology Ltd.
Accessories for Product
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Product Description

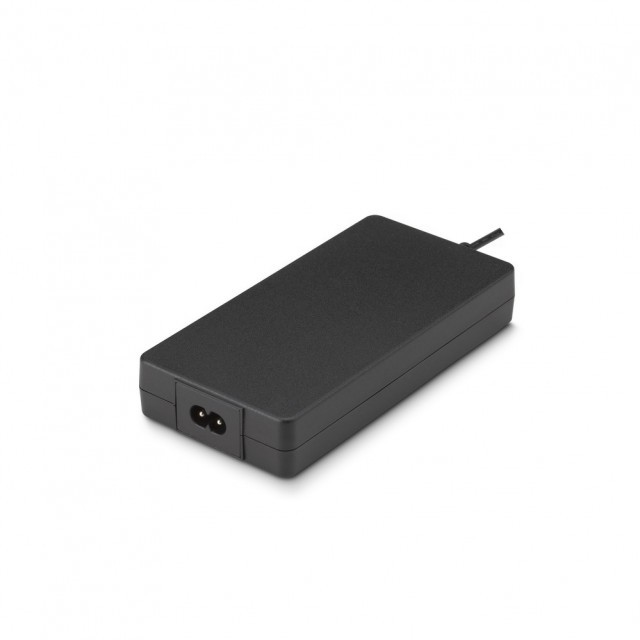

90 W Desktop AC-DC Adapter – FSP090-ABCN2
The FSP090-ABCN2 is a 90 W desktop AC-DC adapter designed for reliable power delivery in notebooks, peripherals, and ITE devices. It supports full-range AC input (90–264 VAC) via an IEC320-C8 connector and provides a regulated 19 VDC / 4.74 A output.
With a slim form factor (140.1 × 65.1 × 25.4 mm), the adapter is suitable for space-limited environments. Certified to CB / UL / CE / TUV standards and compliant with RoHS and WEEE directives, the FSP090-ABCN2 ensures safety, efficiency, and environmental responsibility.
Key Features
- Power Output: 90 W (19 V / 4.74 A)
- Input Range: 90–264 VAC (universal)
- Connector: IEC320-C8
- Dimensions: 140.1 × 65.1 × 25.4 mm
- Certifications: CB, UL, CE, TUV
- Compliance: RoHS and WEEE
- Applications: Notebooks, embedded systems, peripherals, ITE
Specifications
| Parameter | Value |
|---|---|
| Connector | 5.5*2.5*10mm 180° |
| Dimensions (L*W*H)(mm) | 140*65*25mm |
| Input Voltage | 90-264Vac |
| Output Current | 4.74A |
| Output Power | 90W |
| Output Voltage | 19Vdc |
| Socket | C8 |
| Weight | 0.33kg |
Technical data sheets
Legislation and Compliance
-
RoHS.pdf
-
CE
-
UL
-
WEEE
-
UKCA
